太陽組成の 1 倍, 放射強制 -0.01 K/day, 雲->雨 100 倍, 実験

概要

計算の概要

木星大気における平均的な流れ場と凝結成分の分布を数値的に求める.

雲から雨への変換の時間スケールを 10,000 秒(100 倍)とする.

計算設定

• 計算領域
  • 水平 1024 km,
  • 鉛直 300 km (下端で 30 bar, 上端で 0.00015 bar)
  • 解像度: 水平, 鉛直ともに 2.0 km
• 時間ステップ
  • 長い時間ステップ: 8 秒
  • 短い時間ステップ: 0.8 秒
• 温度の初期分布:
  • 0 km (30 bar) -- 200 km(0.1 bar) までは等温位(30 bar で温度 490 K, 0.1 bar で温度 100 K)
  • 200 km より上空では等温.
  • 温度勾配に不連続が生じないように, 等温位領域と等温度領域の境界を双曲線関数を用いてなめらかにつなぐ.
• 放射強制:
  • 高度 140 km (2 bar) から高度 200 km (0.1 bar) の範囲で水平一様に -0.01 K/day の強制.
• 大気成分
  • 乾燥成分気体: H2(g), He(g)
  • 凝結成分気体: H2O(g), NH3(g), H2S(g)
    • 初期値: 大気深部での存在比は太陽組成の 1 倍, 凝結高度より上空では相対湿度 75%
• スポンジ層:
  • 高度 200 km より上空にレイリー摩擦, 緩和時間を 500 秒
• 境界条件
  • 水平境界: 周期境界条件
  • 上下境界: 応力なし, w=0
  • 最下層の熱フラックスは拡散的に与える
    • F = Kπ(θ_1 - θ_boundary)/ 0.5 Δz (K = 800 m^2/sec)
  • 最下層の混合比は拡散的に与える
    • F = K Δq / 0.5 Δz (K = 800 m^2/sec)
• 初期擾乱
  • 高度 110 km に最大 0.5 k の温度擾乱を乱数を用いて与える.

結果一覧

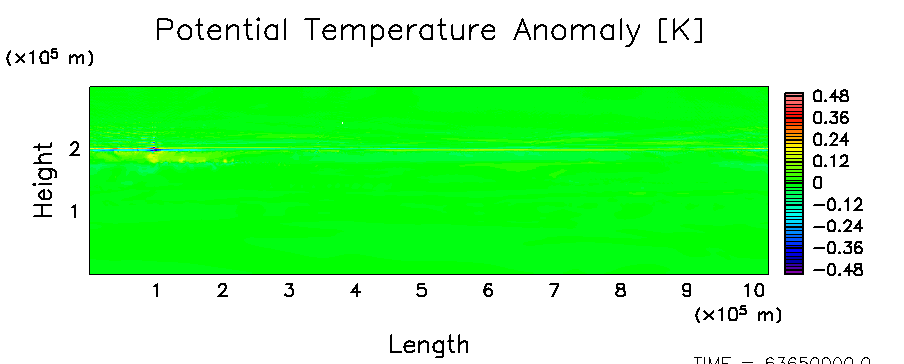

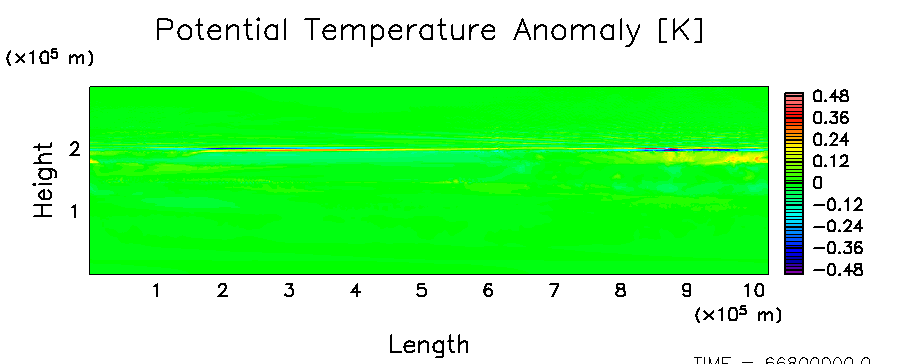

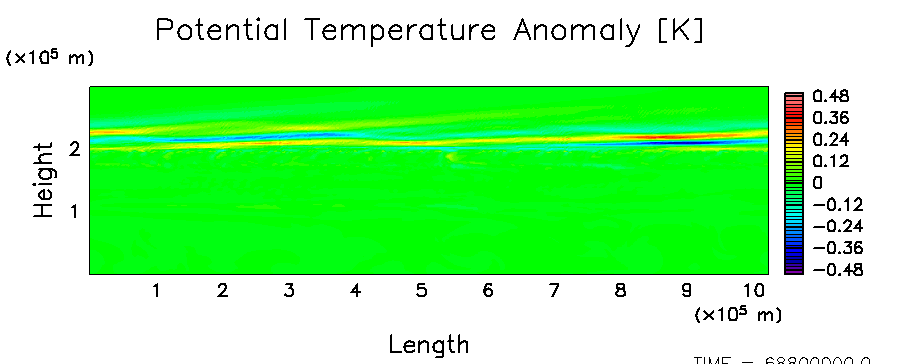

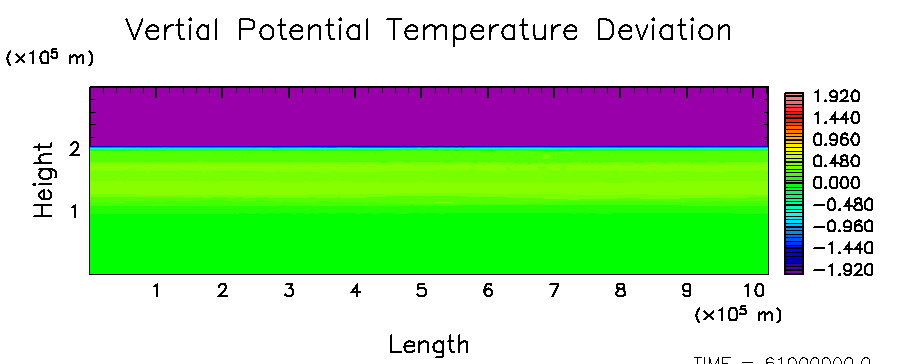

温位の時間変化

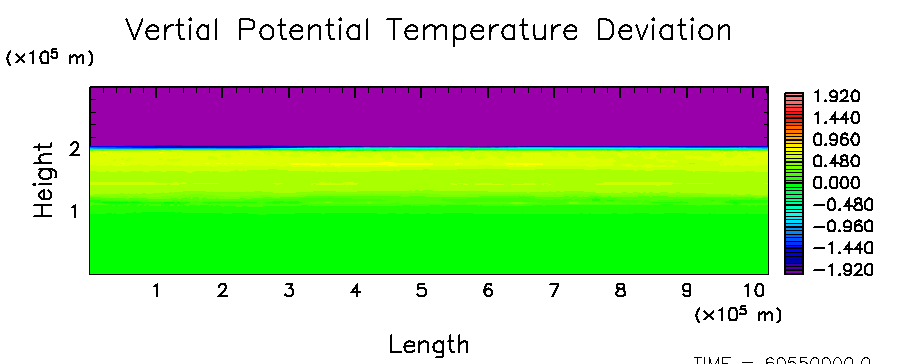

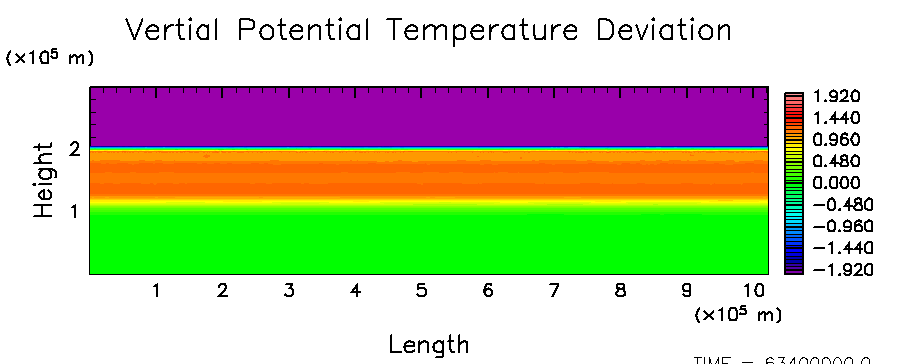

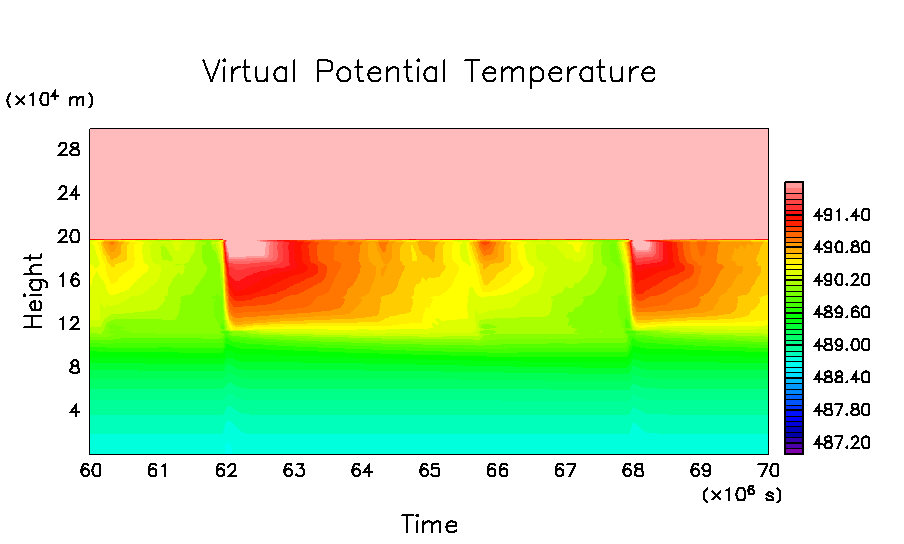

仮温位の時間変化

相当温位の時間変化

鉛直速度の自乗平均

運動エネルギー

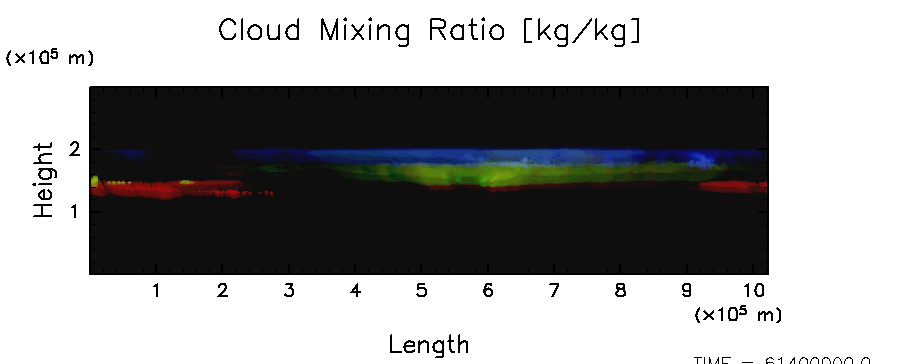

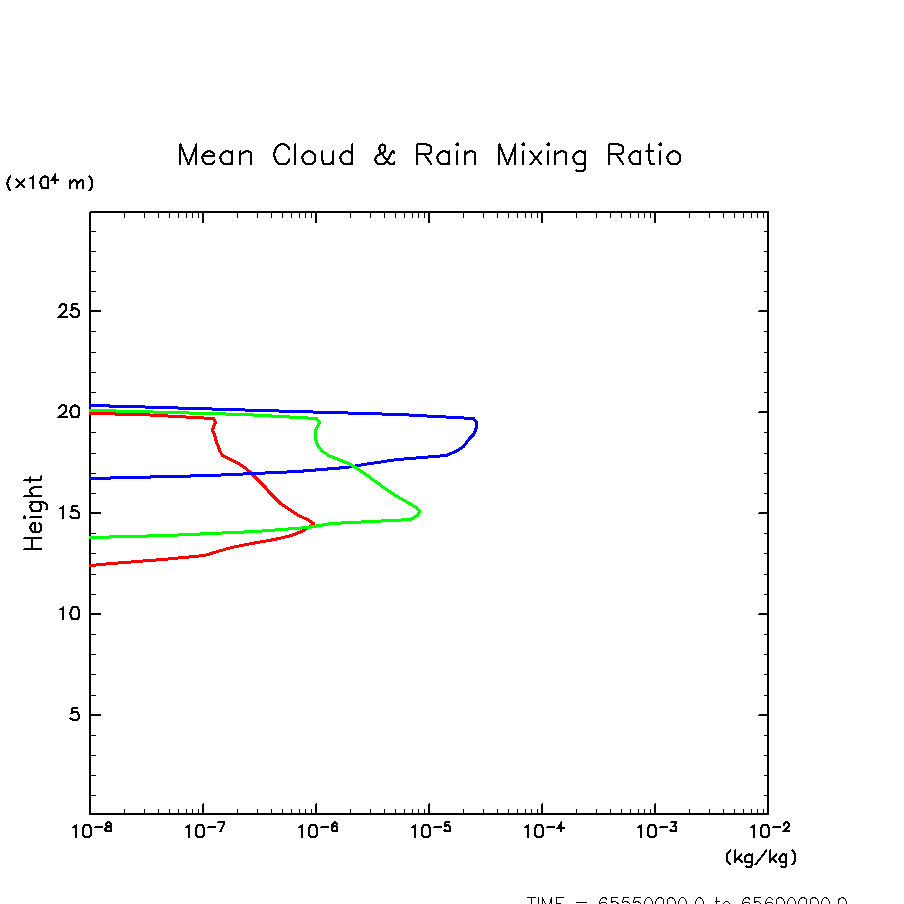

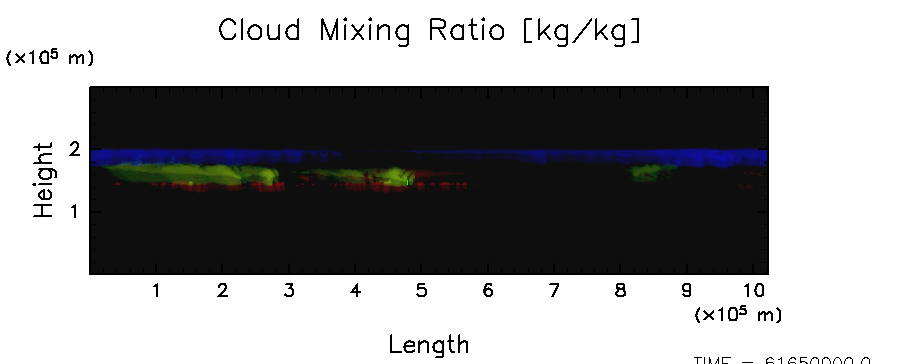

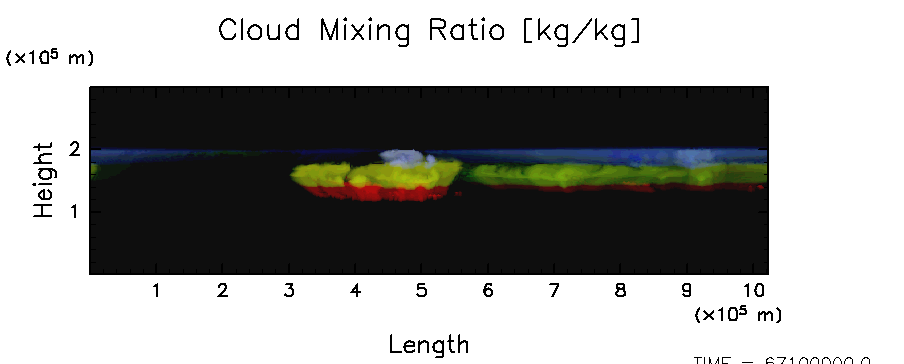

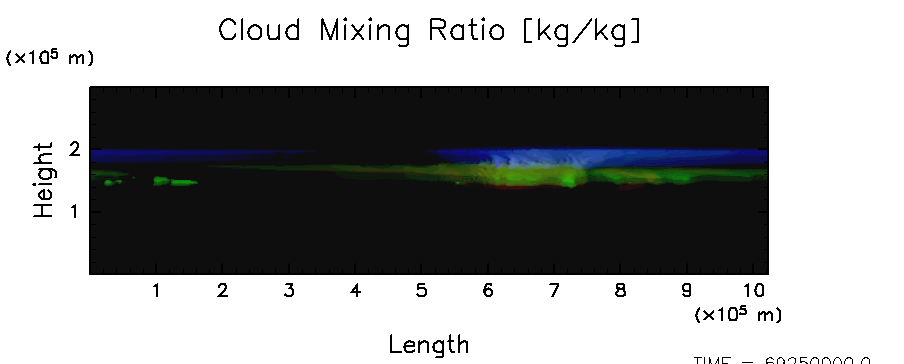

凝結成分気体混合比(赤: H2O, 緑: H2S, 青: NH3)

H2O 蒸気混合比

H2S 蒸気混合比

NH3 蒸気混合比

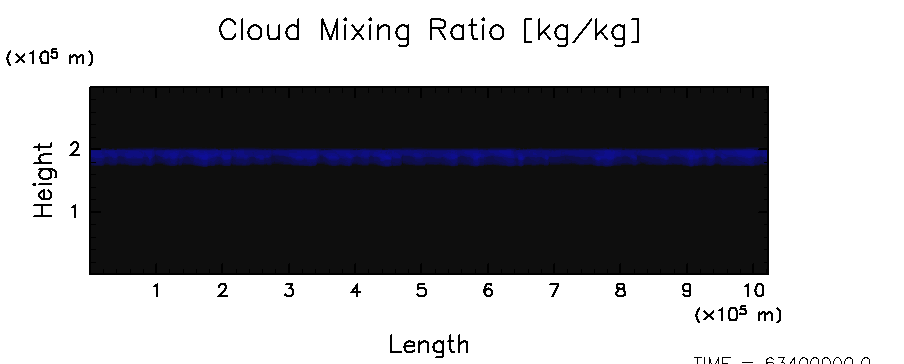

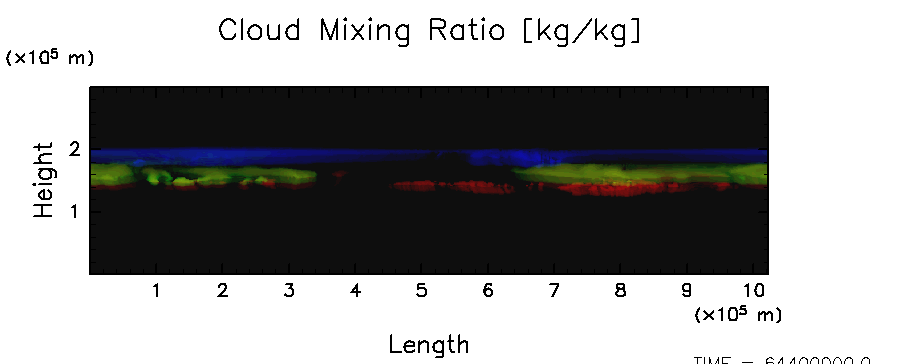

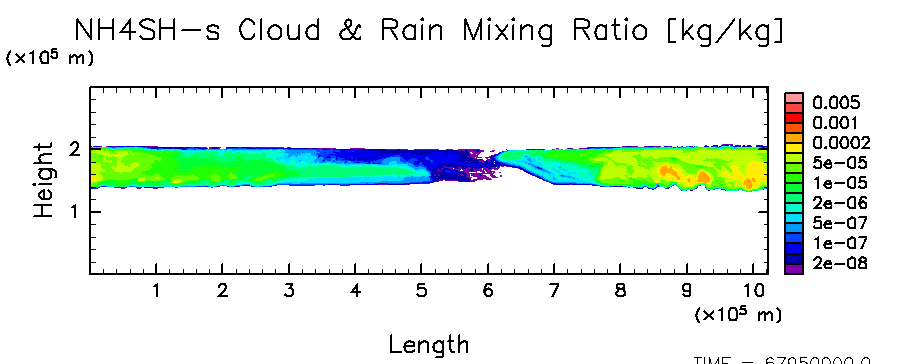

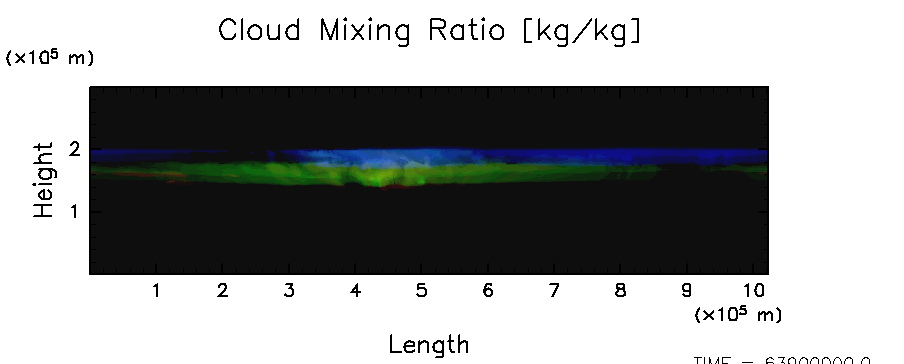

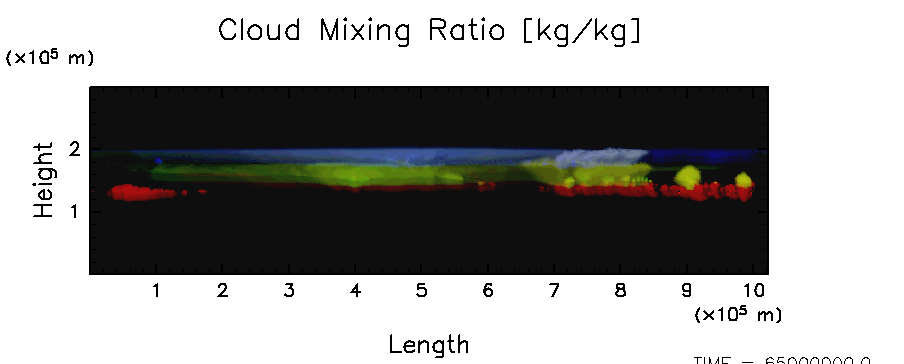

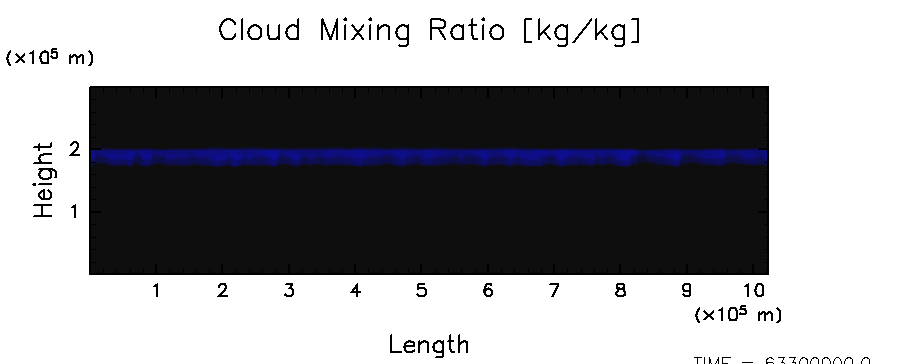

凝結物混合比(赤: H2O, 緑: NH4SH, 青: NH3)

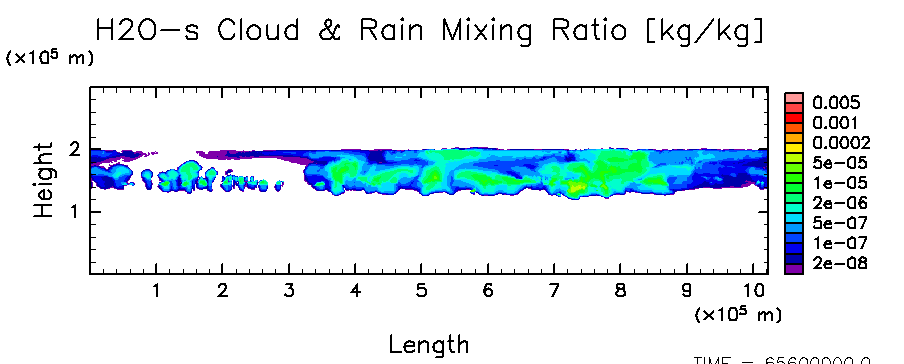

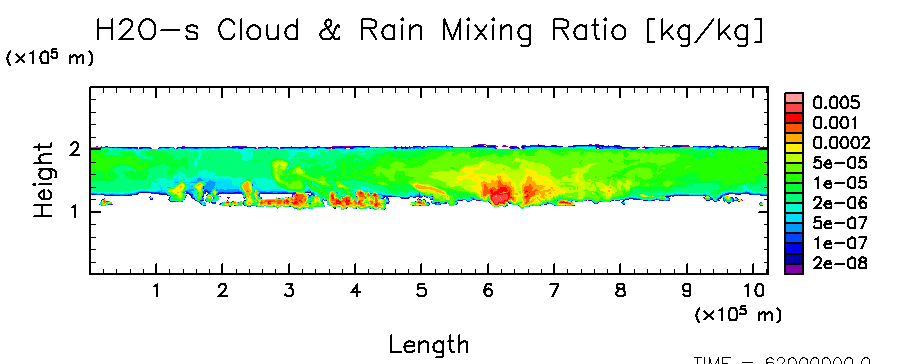

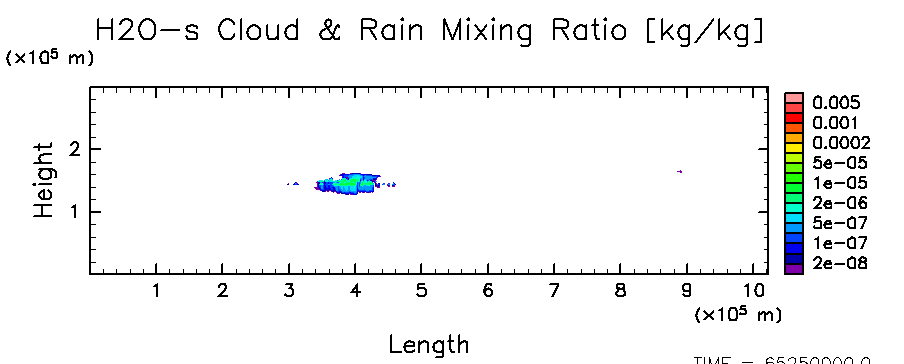

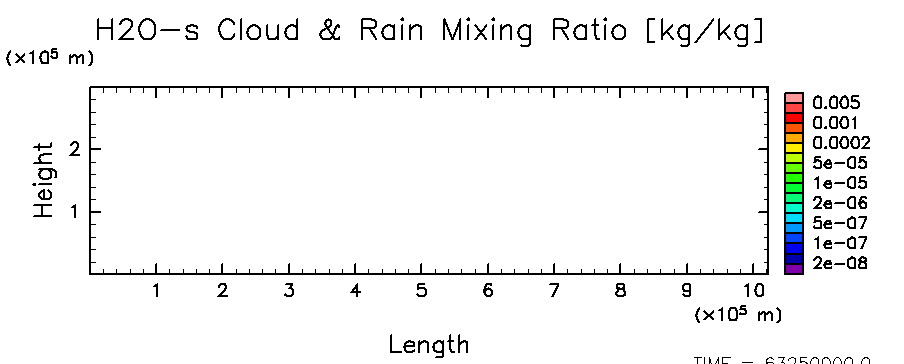

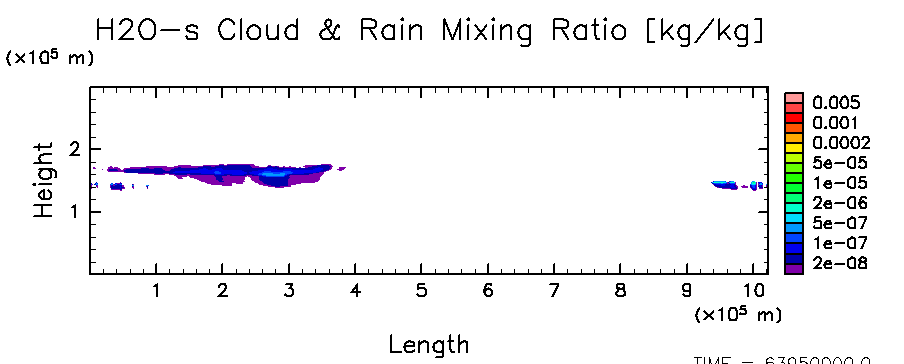

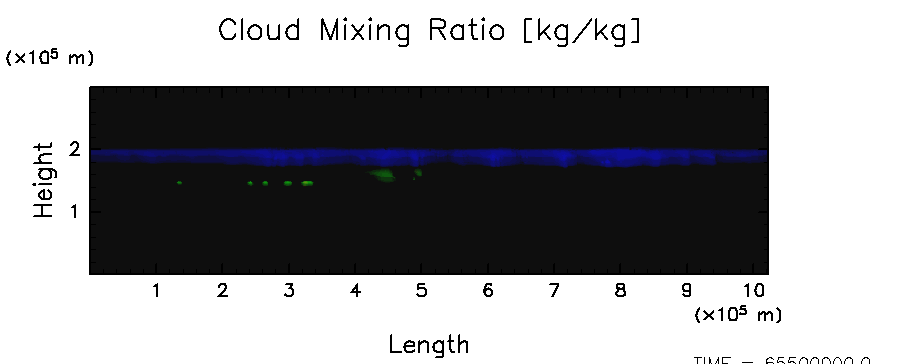

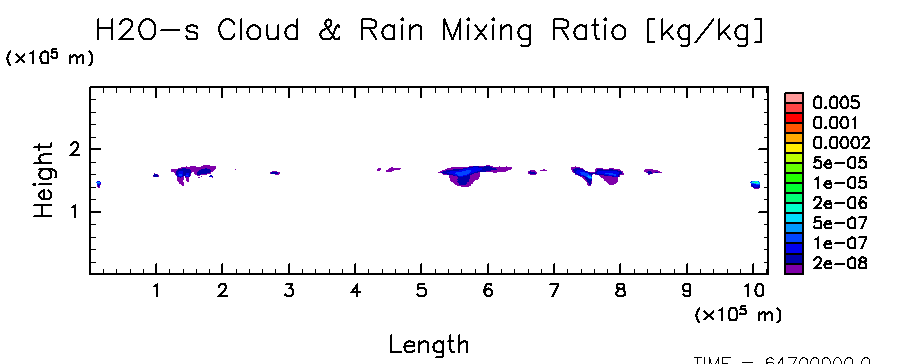

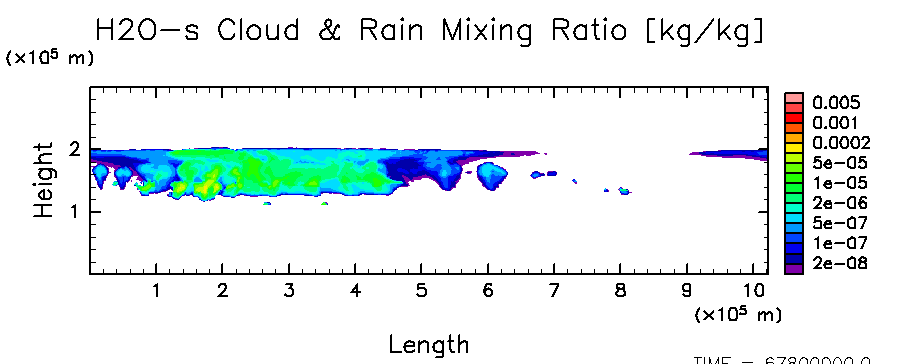

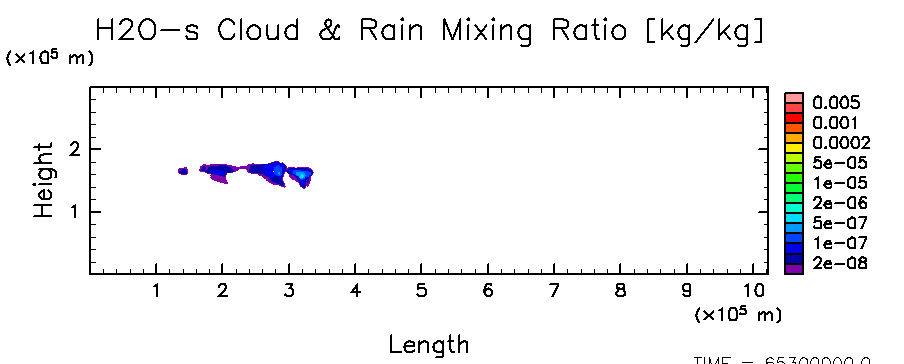

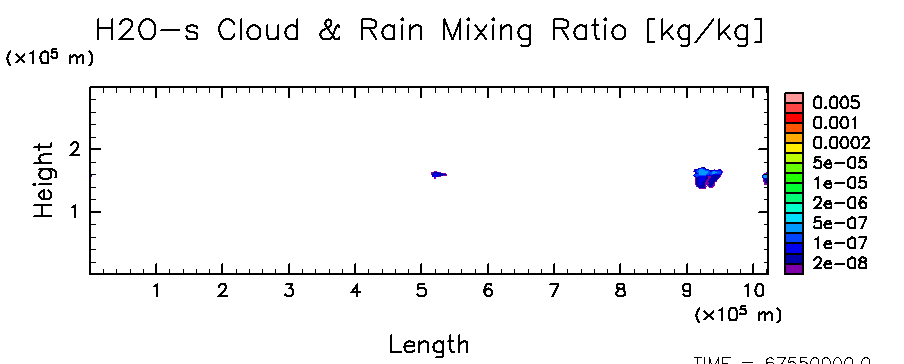

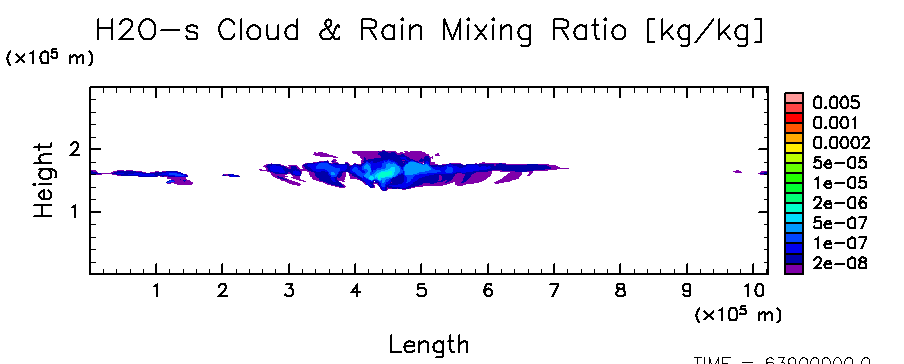

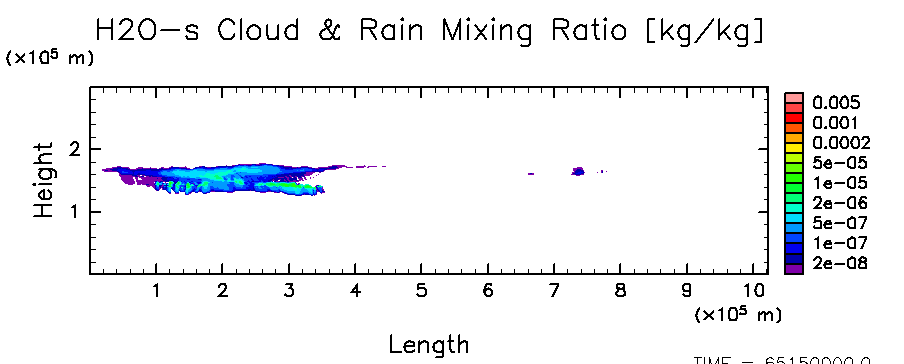

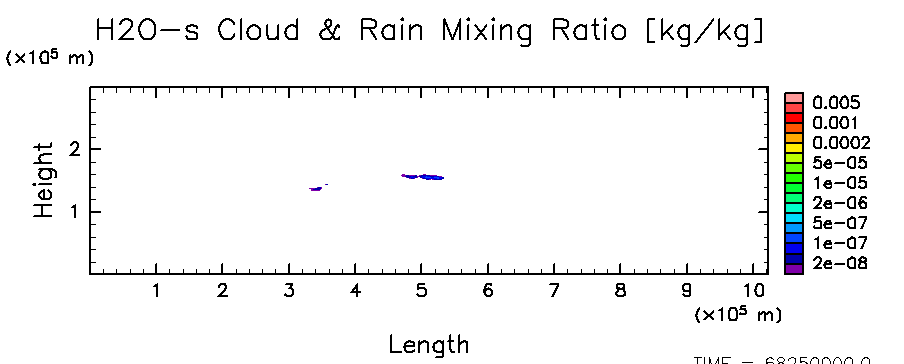

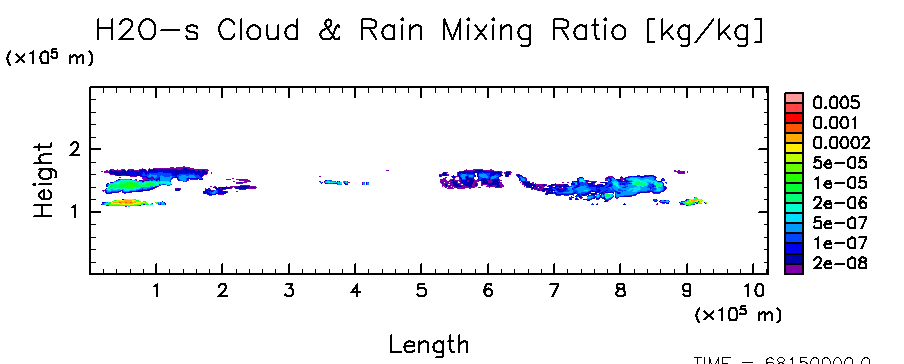

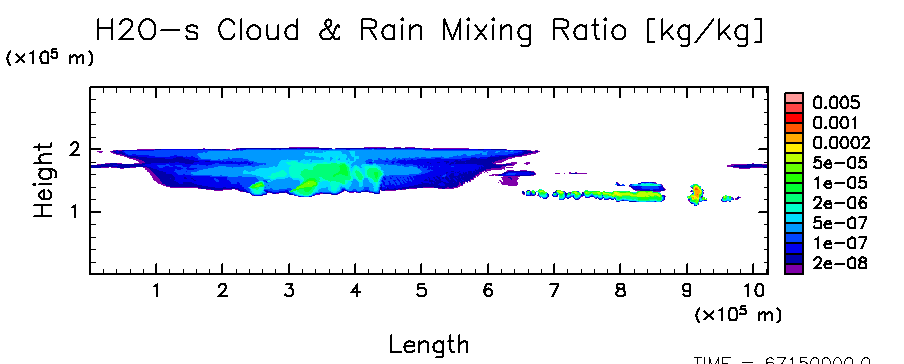

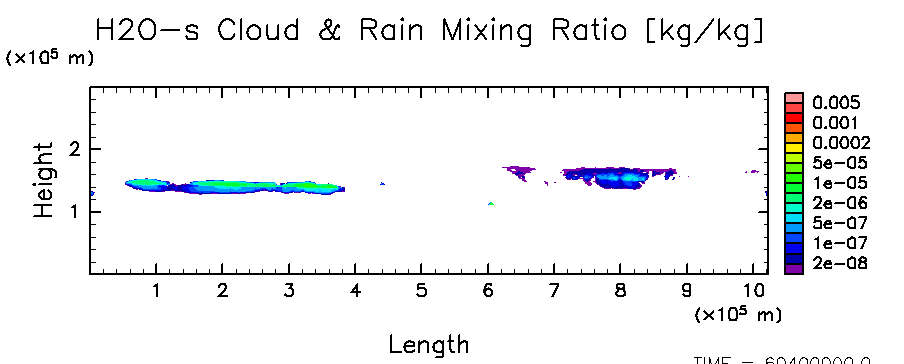

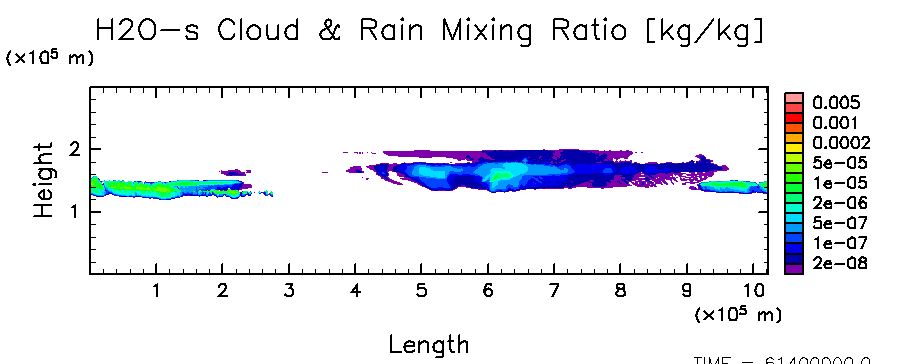

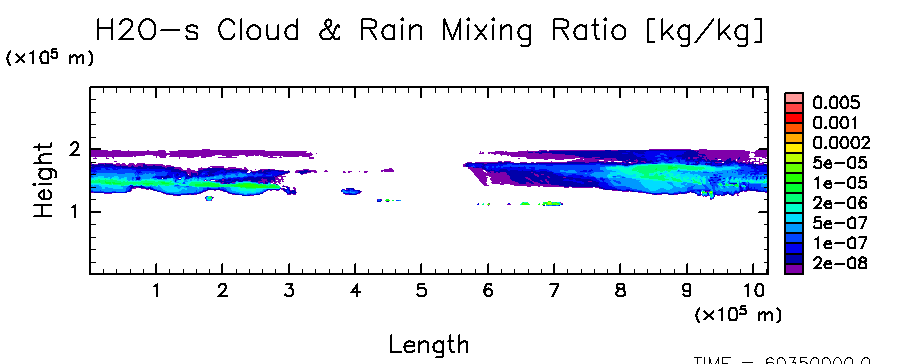

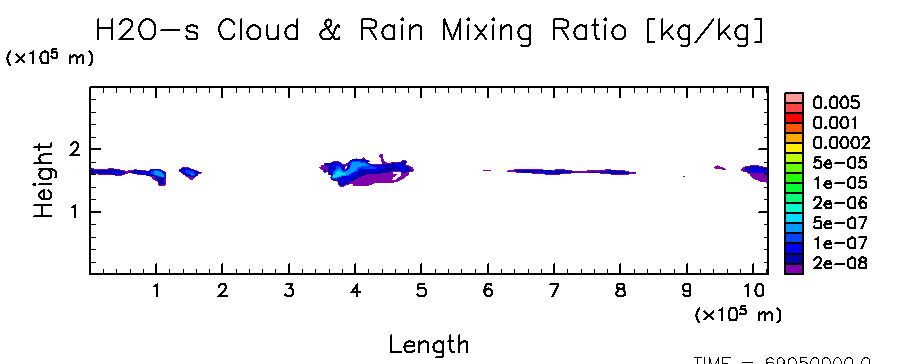

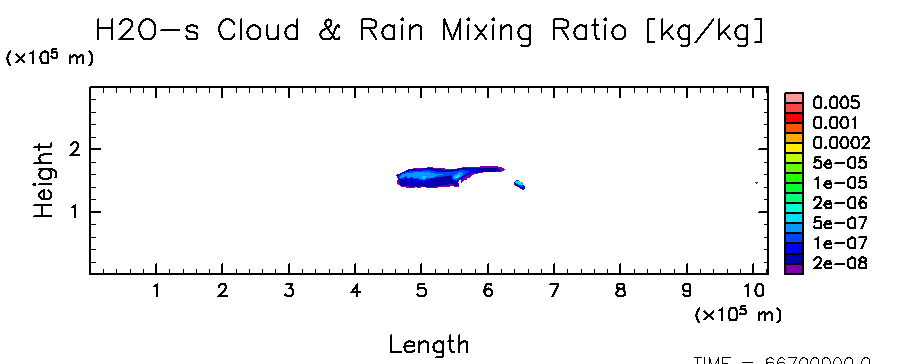

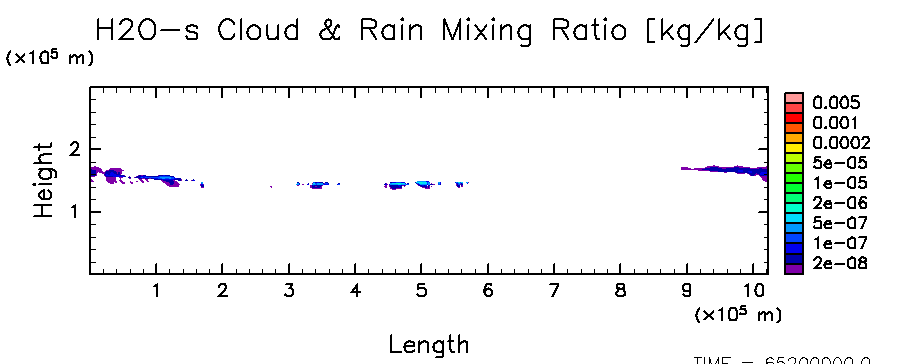

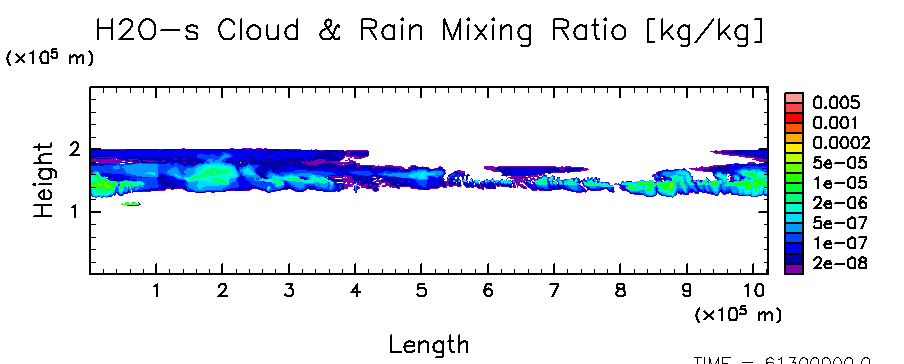

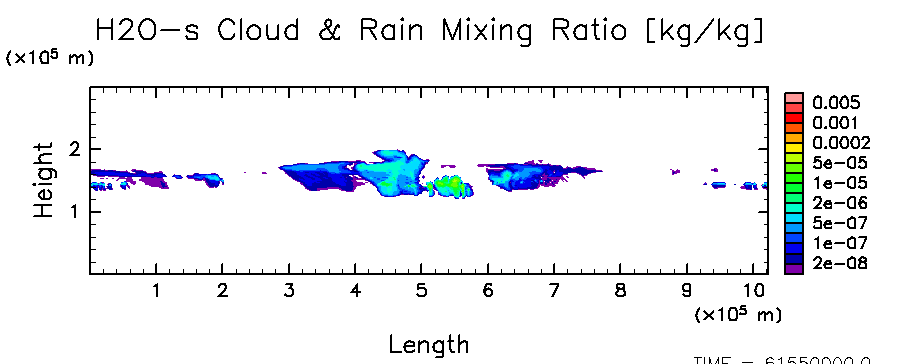

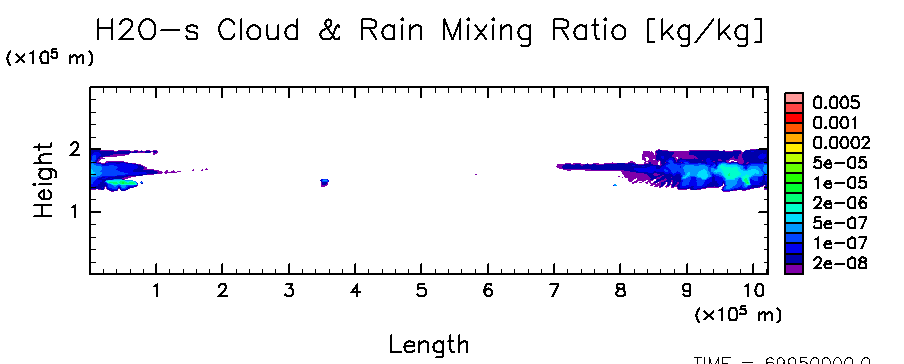

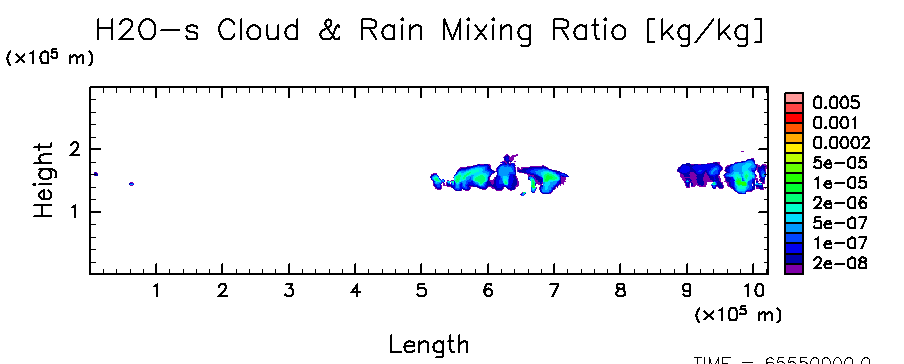

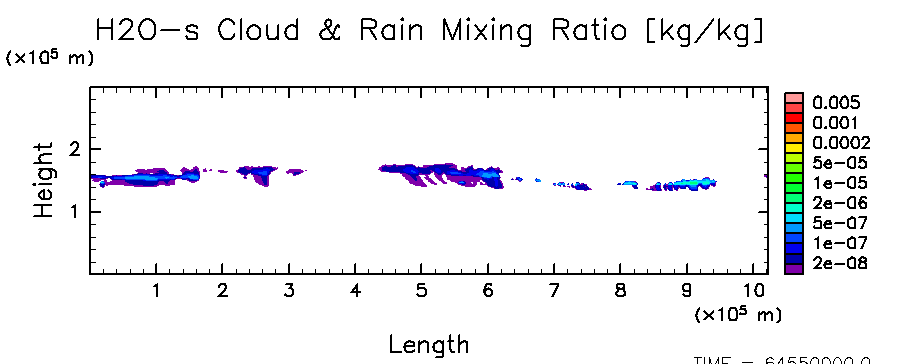

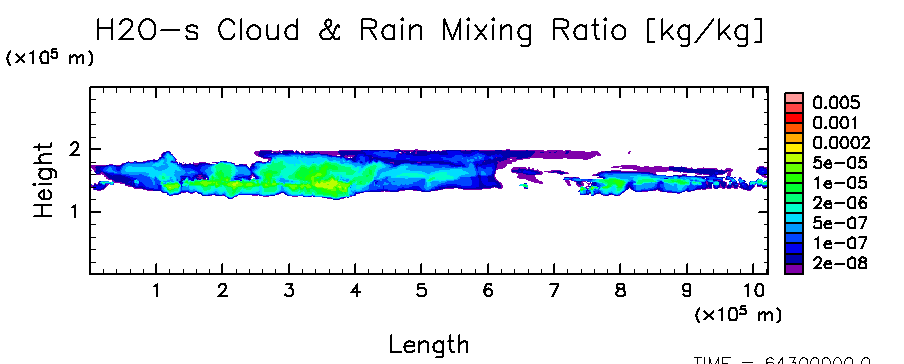

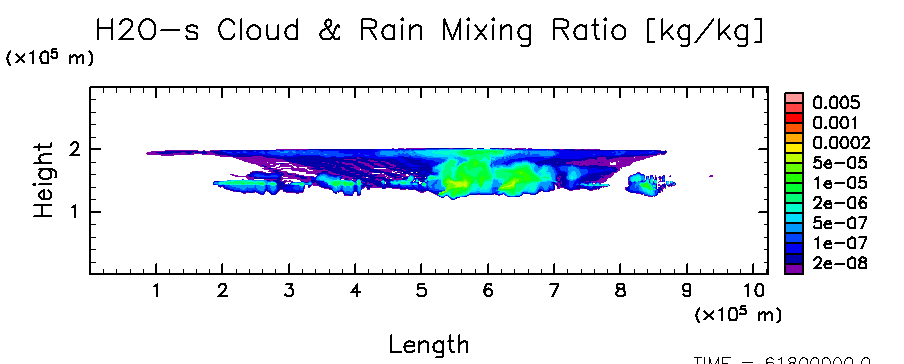

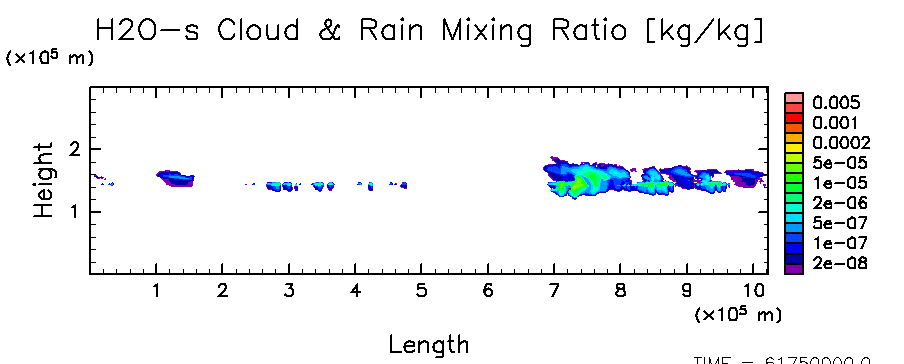

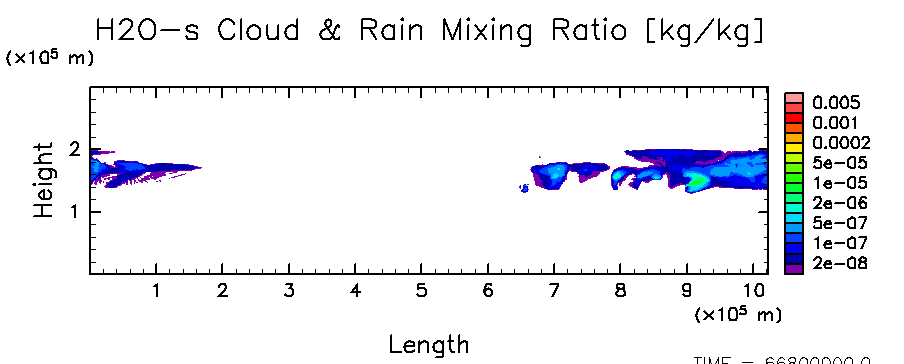

H2O 雲と雨の混合比

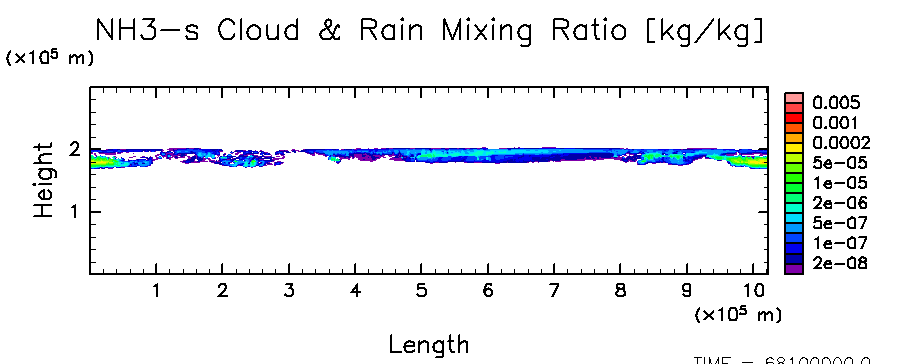

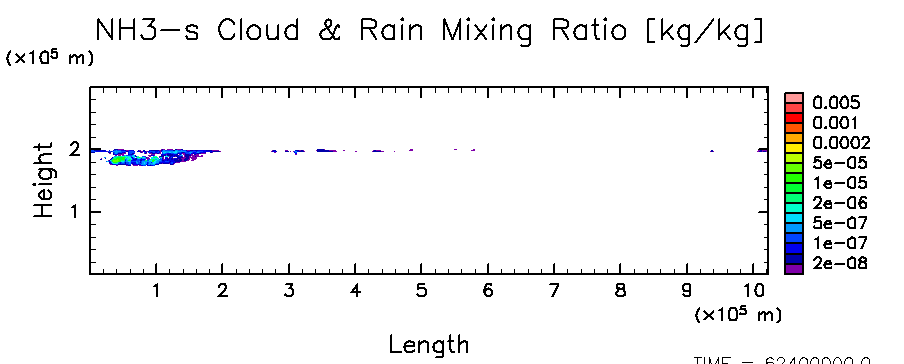

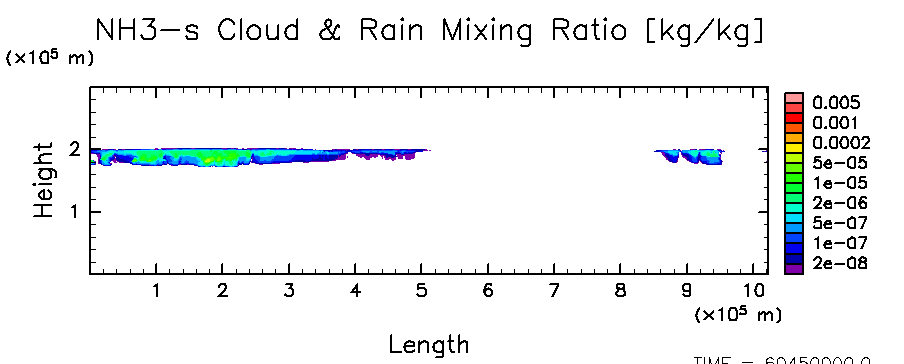

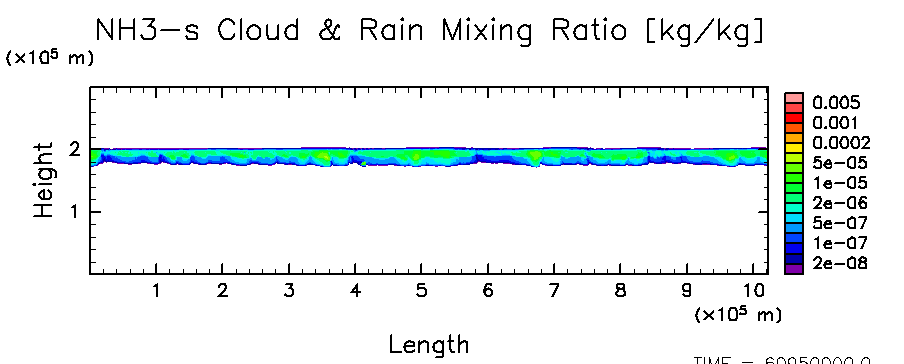

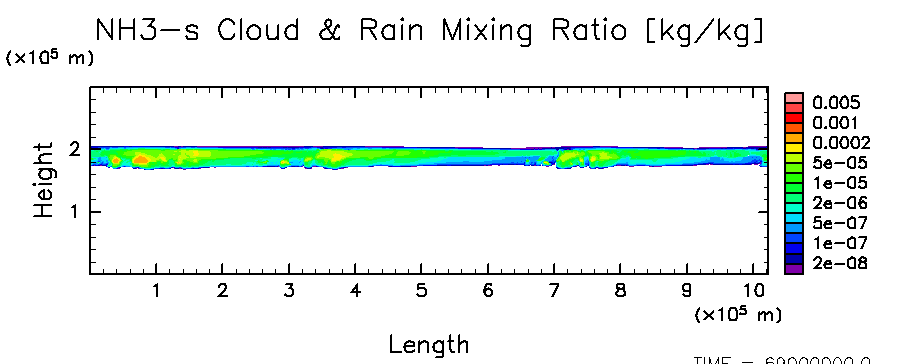

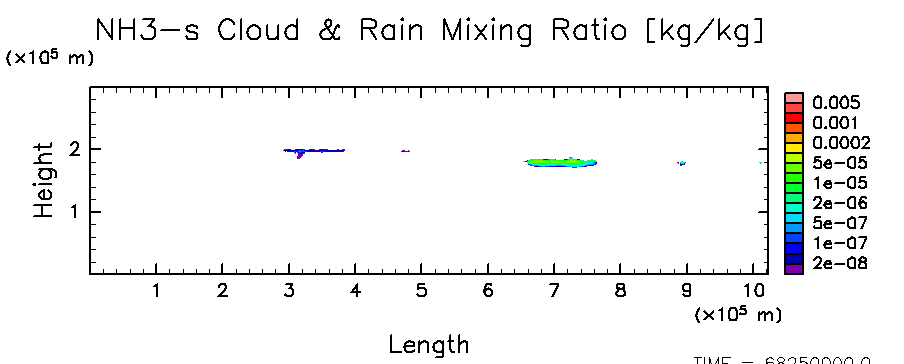

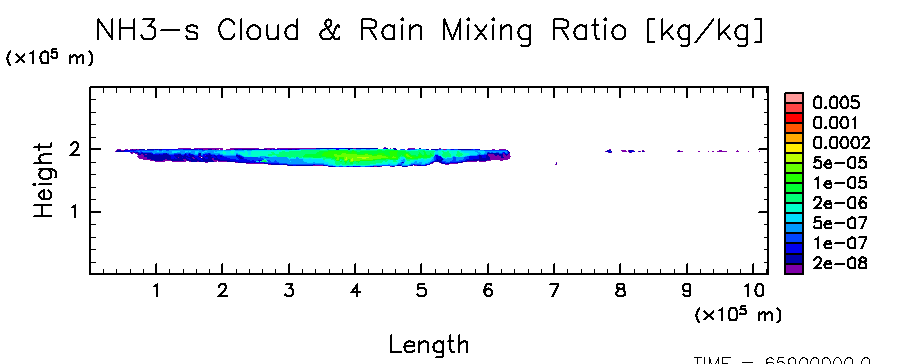

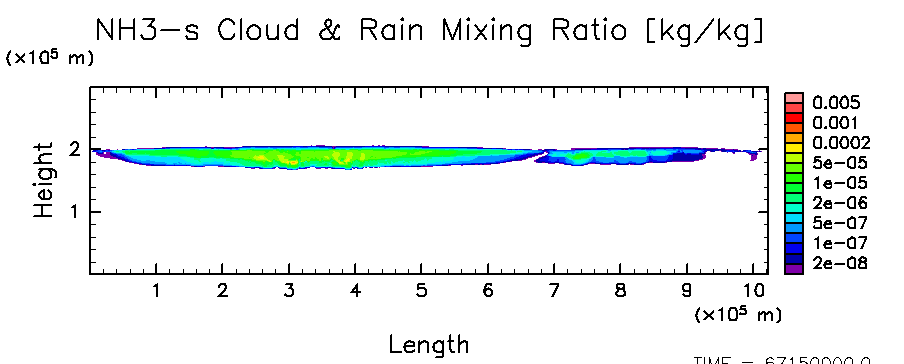

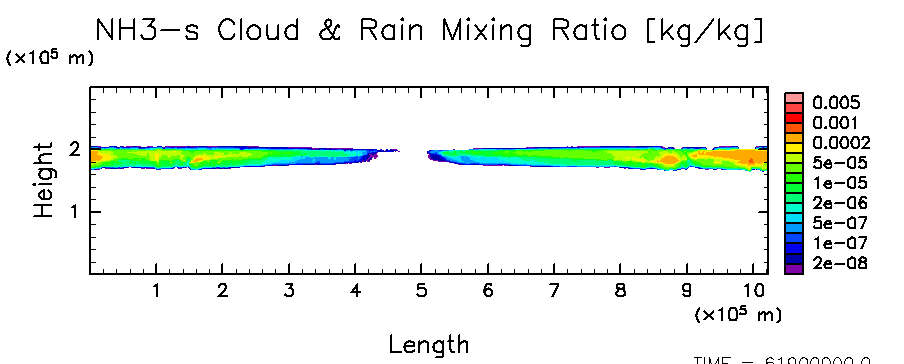

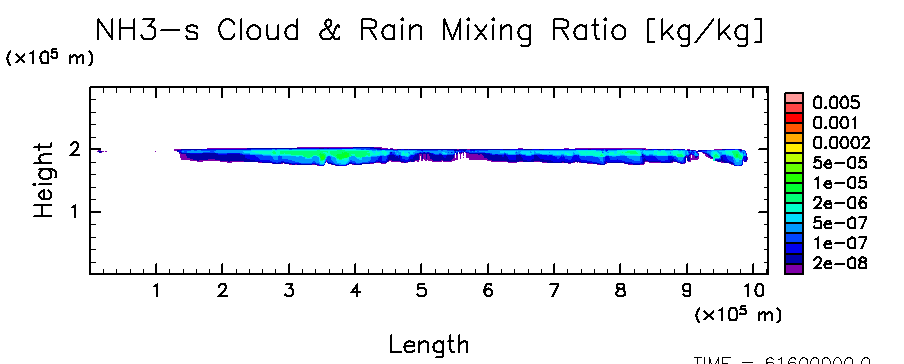

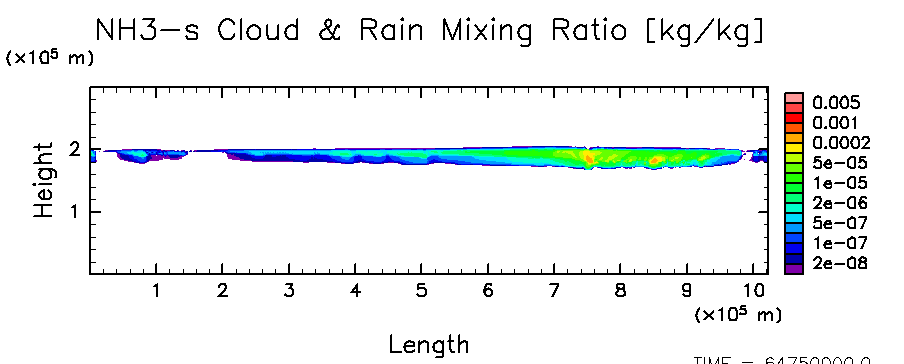

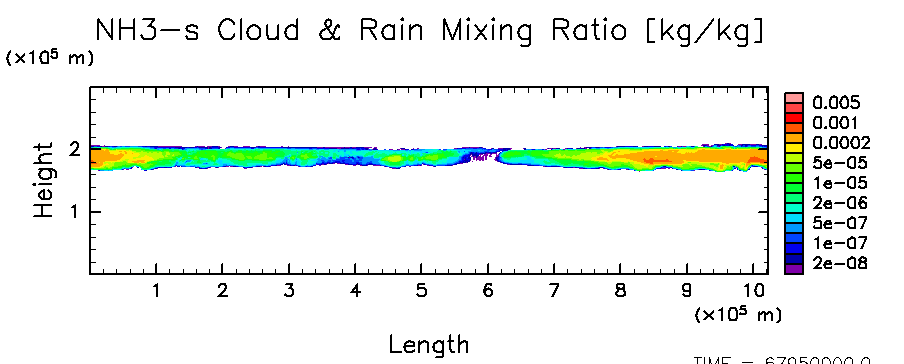

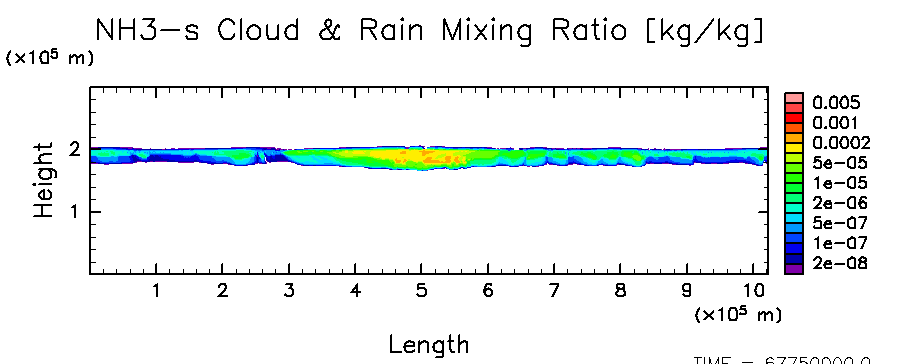

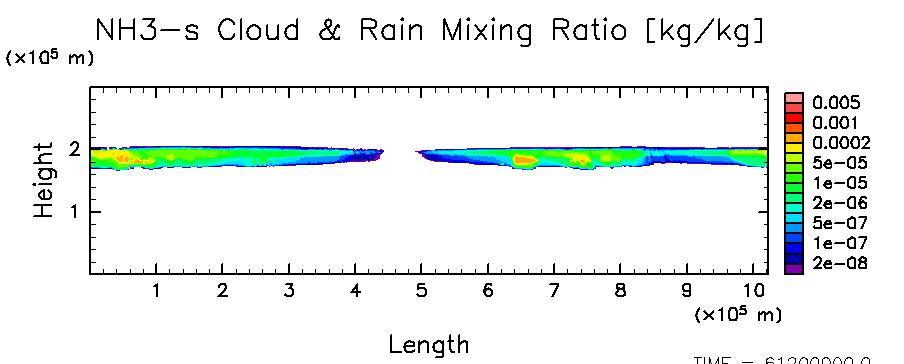

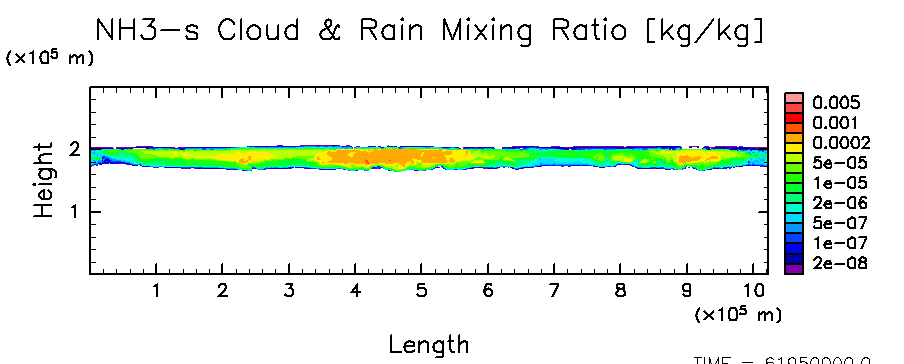

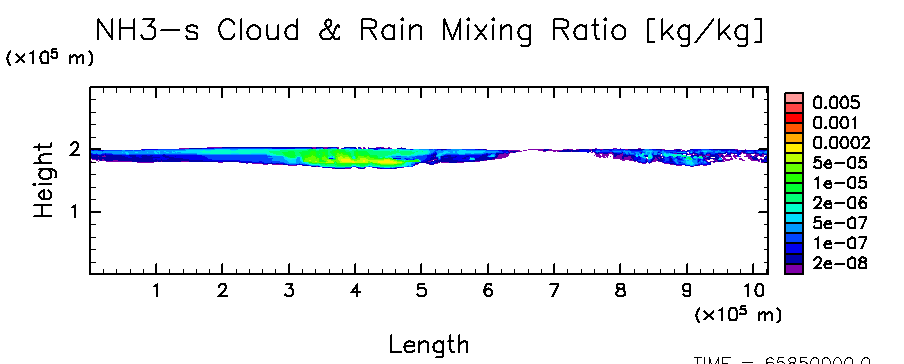

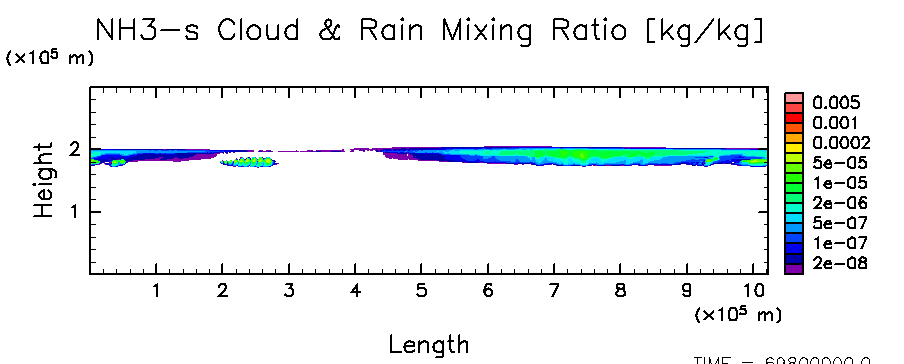

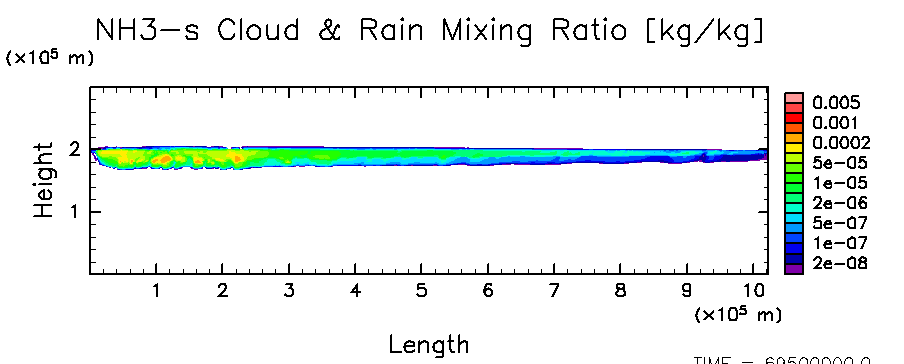

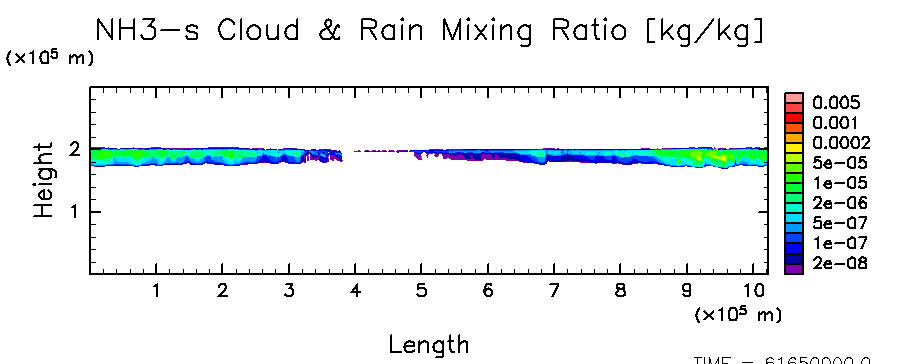

NH3 雲と雨の混合比

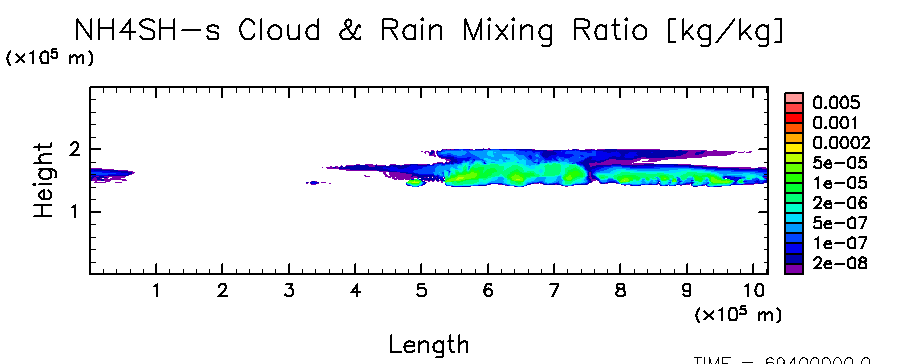

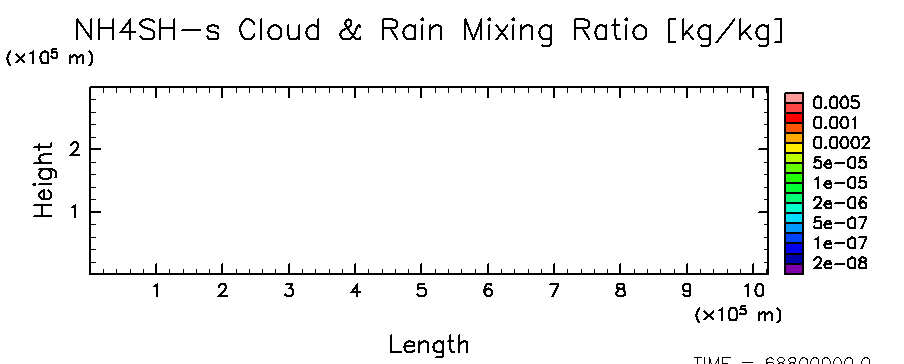

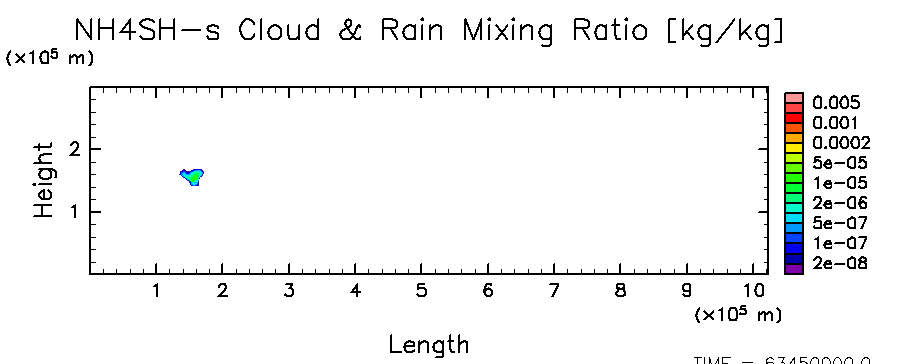

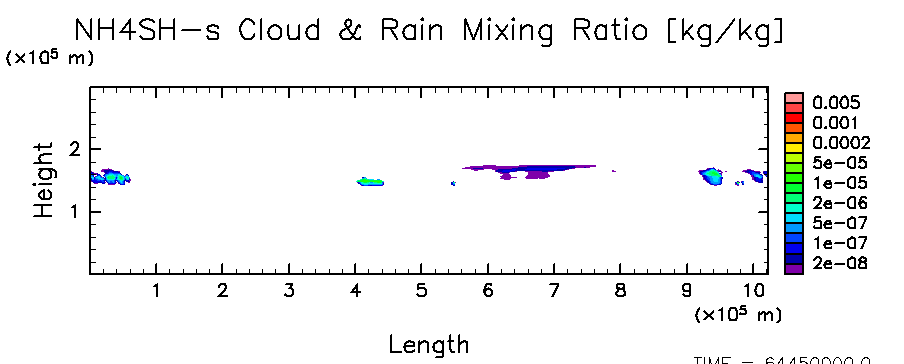

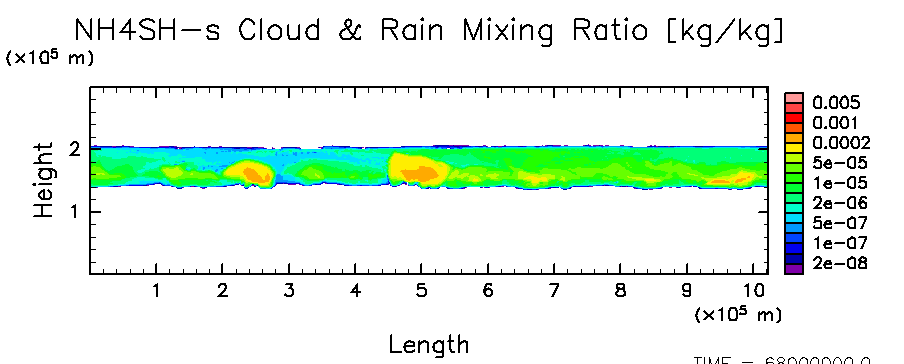

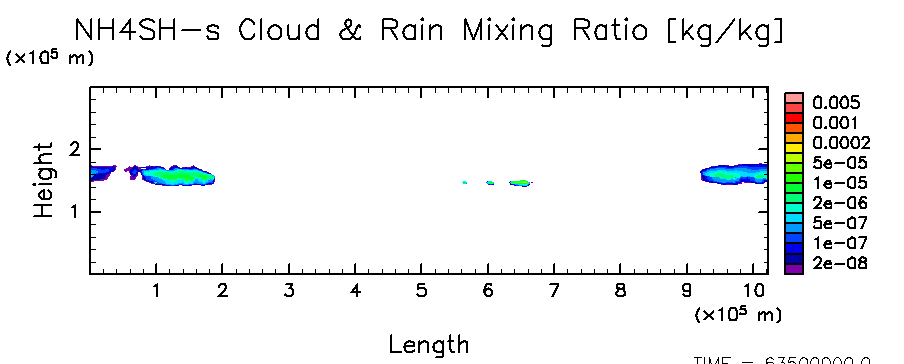

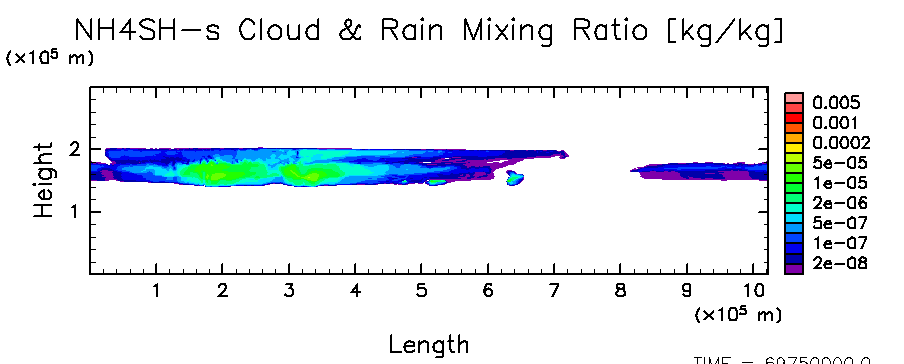

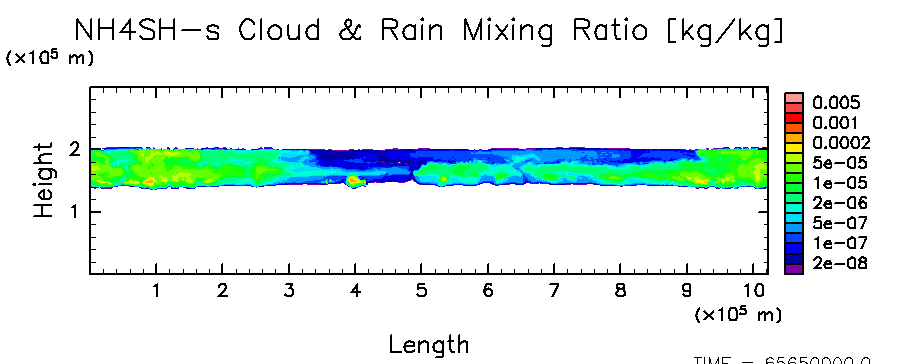

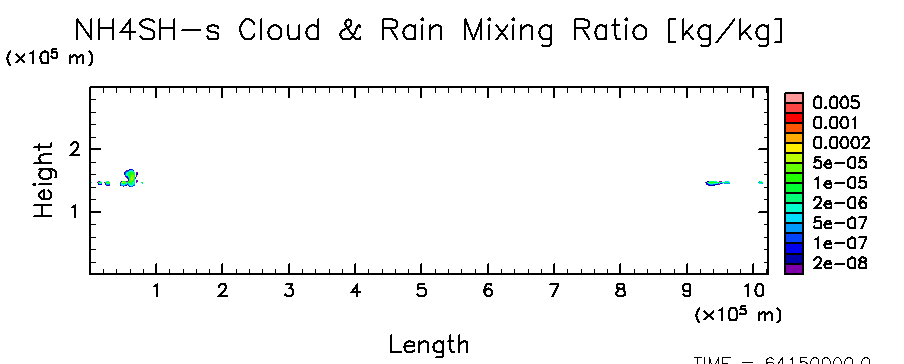

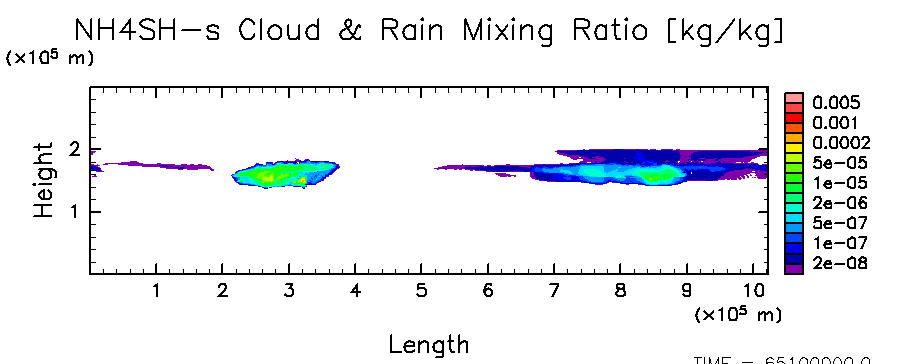

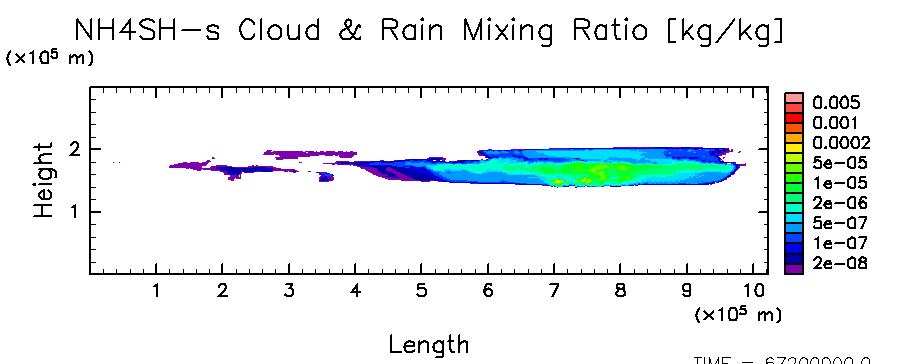

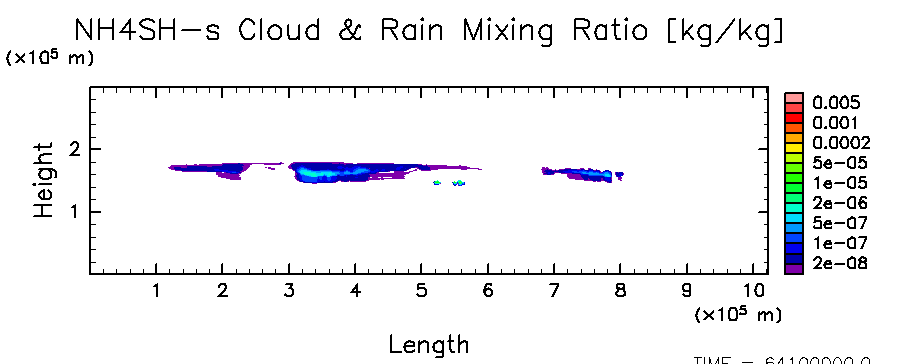

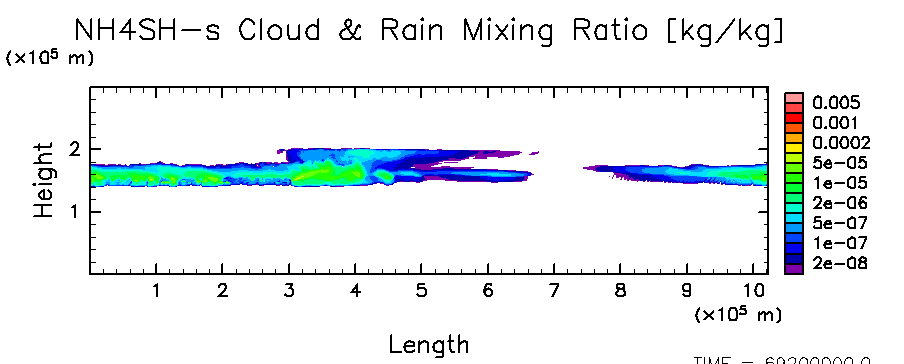

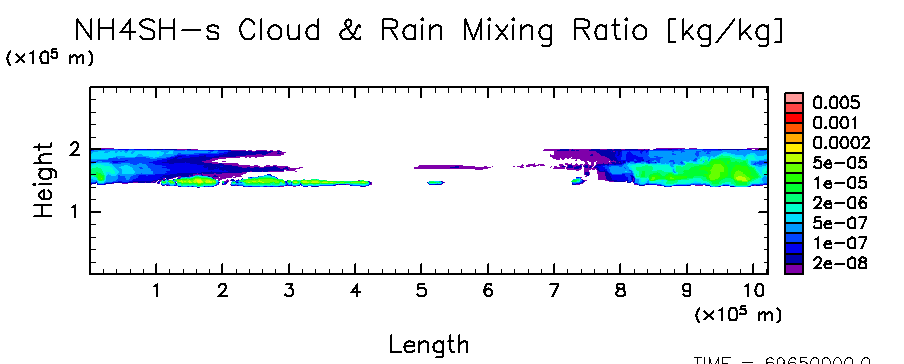

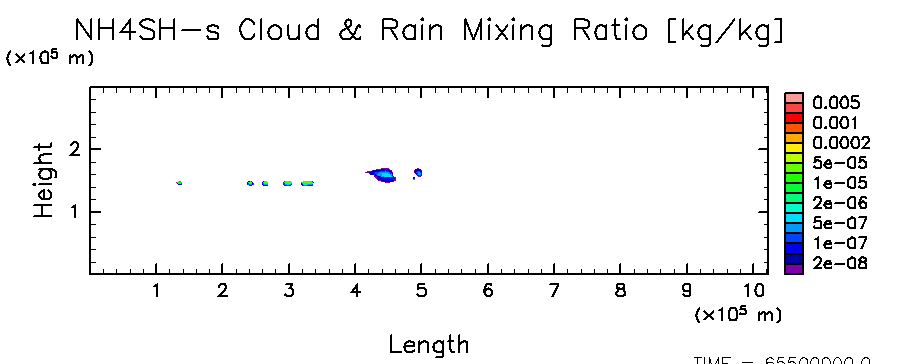

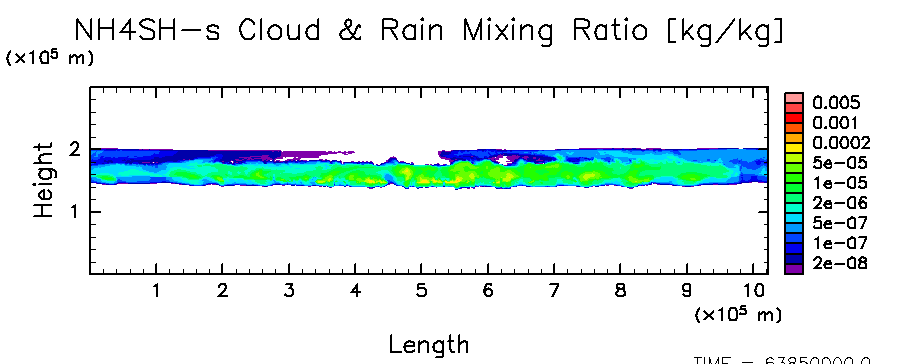

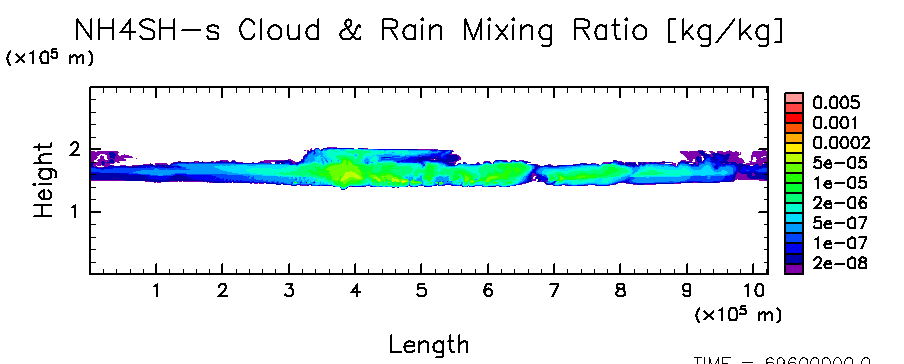

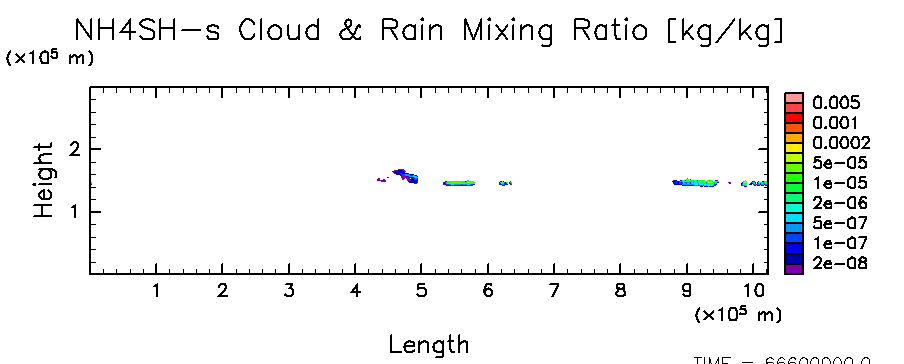

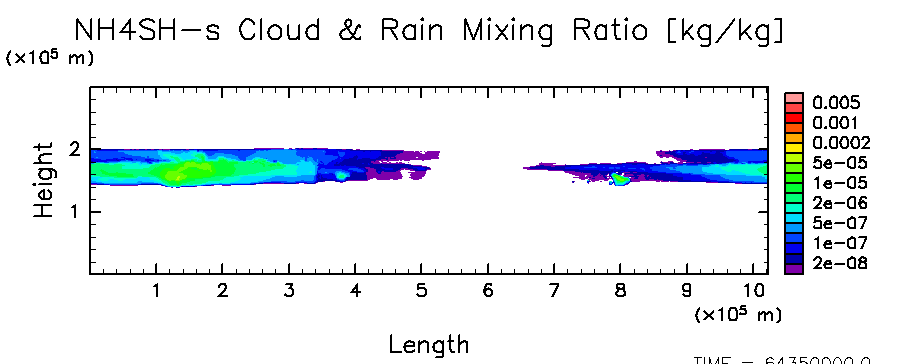

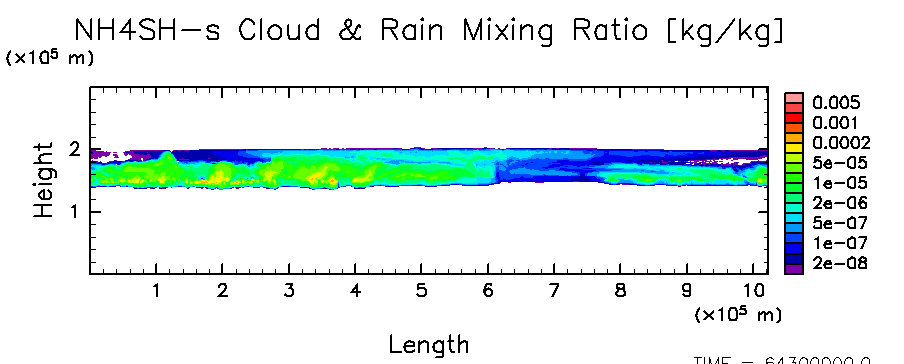

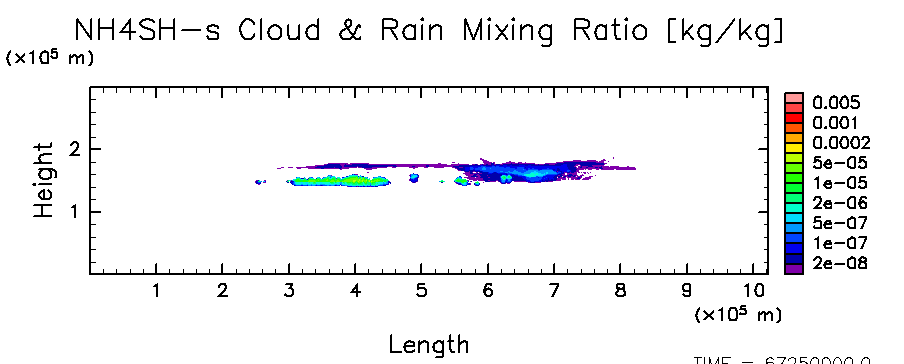

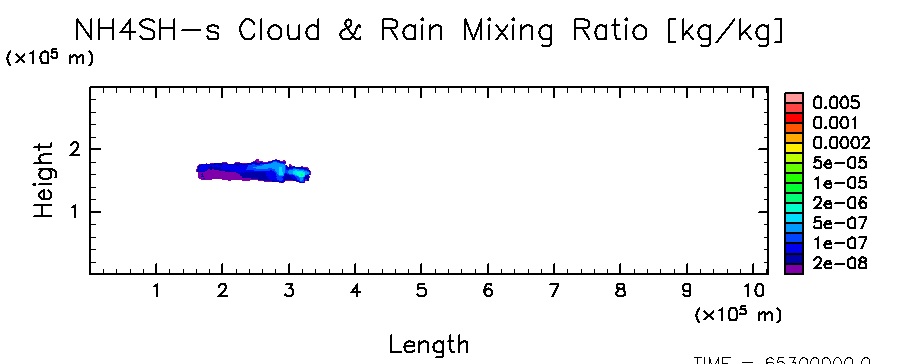

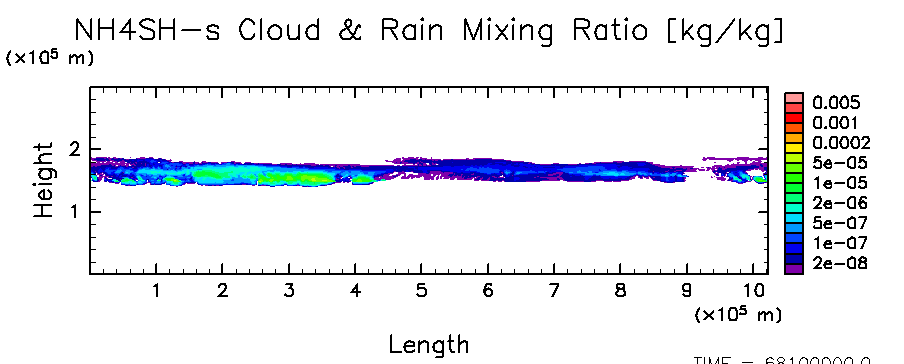

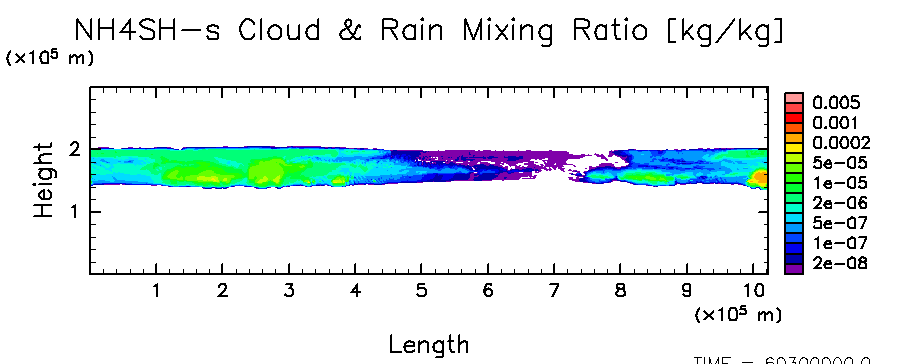

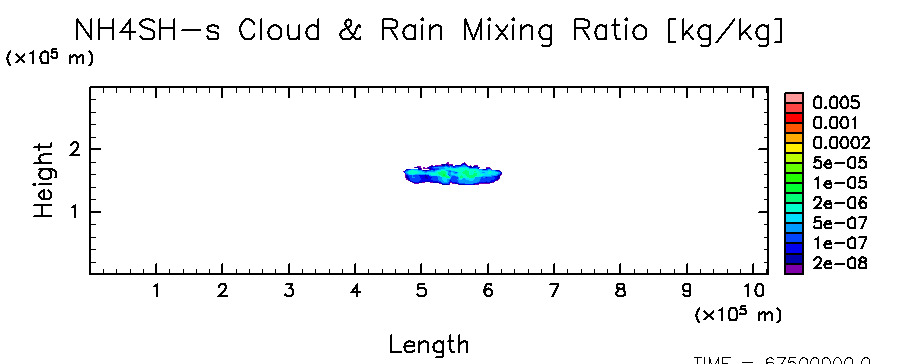

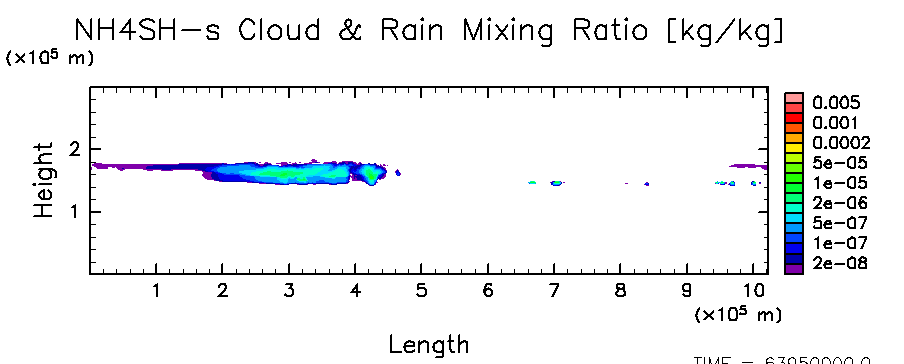

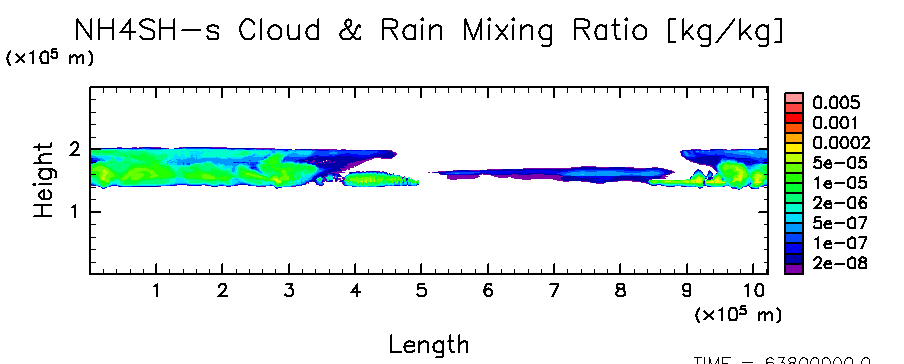

NH4SH 雲と雨の混合比

H2O 相対湿度

NH3 相対湿度

NH4SH 平衡状態からのずれ

凝結と反応による温位変化

浮力

浮力(温度の寄与)

浮力(分子量の寄与)

浮力(引きづりの効果)

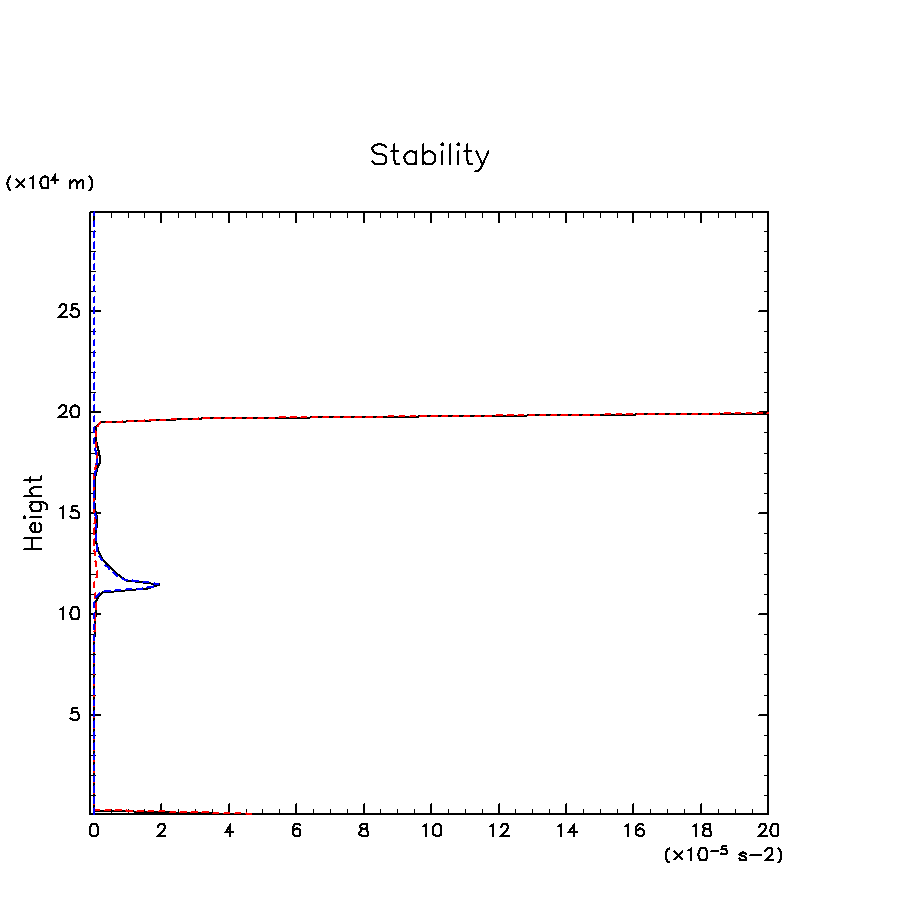

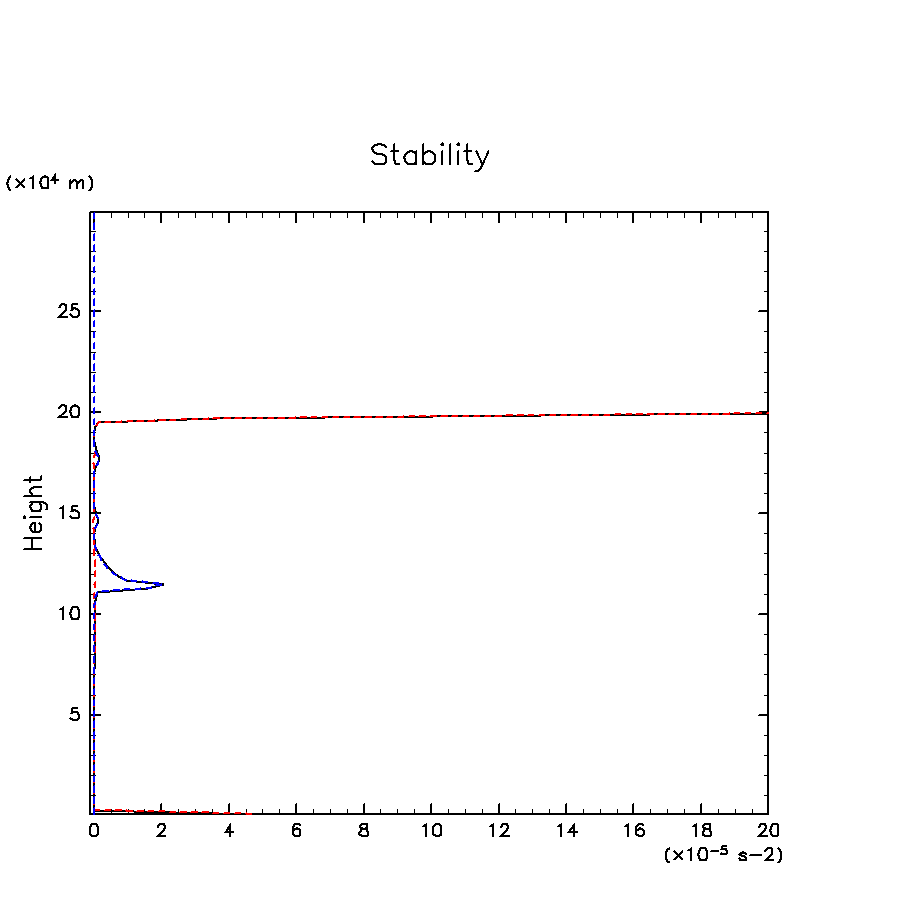

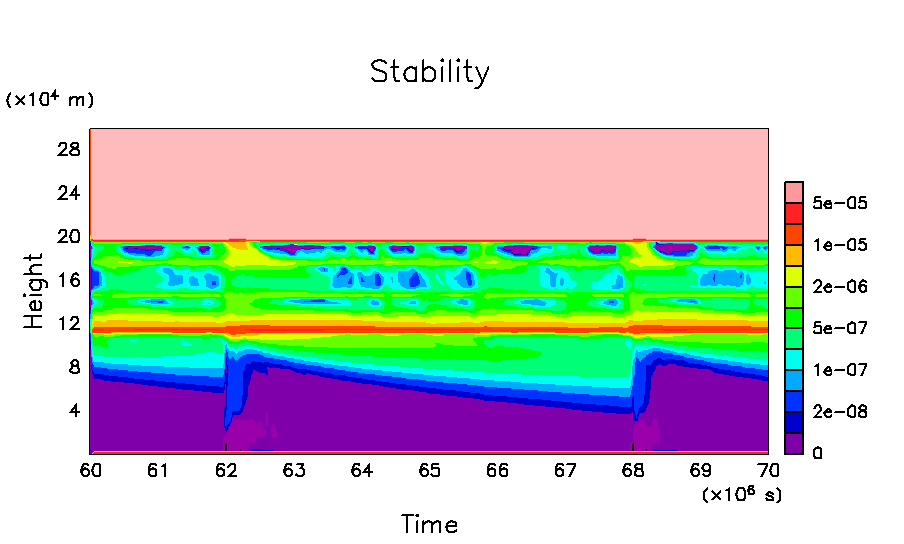

安定度

安定度(温度の寄与)

安定度(分子量の寄与)





































H2O 蒸気の移流による混合比変化

H2O 蒸気の乱流拡散による混合比変化

H2O 蒸気の数値拡散による混合比変化

H2O 蒸気の穴埋めプログラムによる混合比変化

H2O 蒸気の穴埋めプログラム(2)凝結による混合比変化

H2O 蒸気の凝結/蒸発による混合比変化

H2O 蒸気の地表面フラックスによる混合比変化















H2S 蒸気の移流による混合比変化

H2S 蒸気の乱流拡散による混合比変化

H2S 蒸気の数値拡散による混合比変化

H2S 蒸気の穴埋めプログラムによる混合比変化

H2S 蒸気の穴埋めプログラム(2)凝結による混合比変化

H2S 蒸気の凝結/蒸発による混合比変化

H2S 蒸気の地表面フラックスによる混合比変化















NH3 蒸気の移流による混合比変化

NH3 蒸気の乱流拡散による混合比変化

NH3 蒸気の数値拡散による混合比変化

NH3 蒸気の穴埋めプログラムによる混合比変化

NH3 蒸気の穴埋めプログラム(2)凝結による混合比変化

NH3 蒸気の凝結/蒸発による混合比変化

NH3 蒸気の地表面フラックスによる混合比変化















温度の基本場

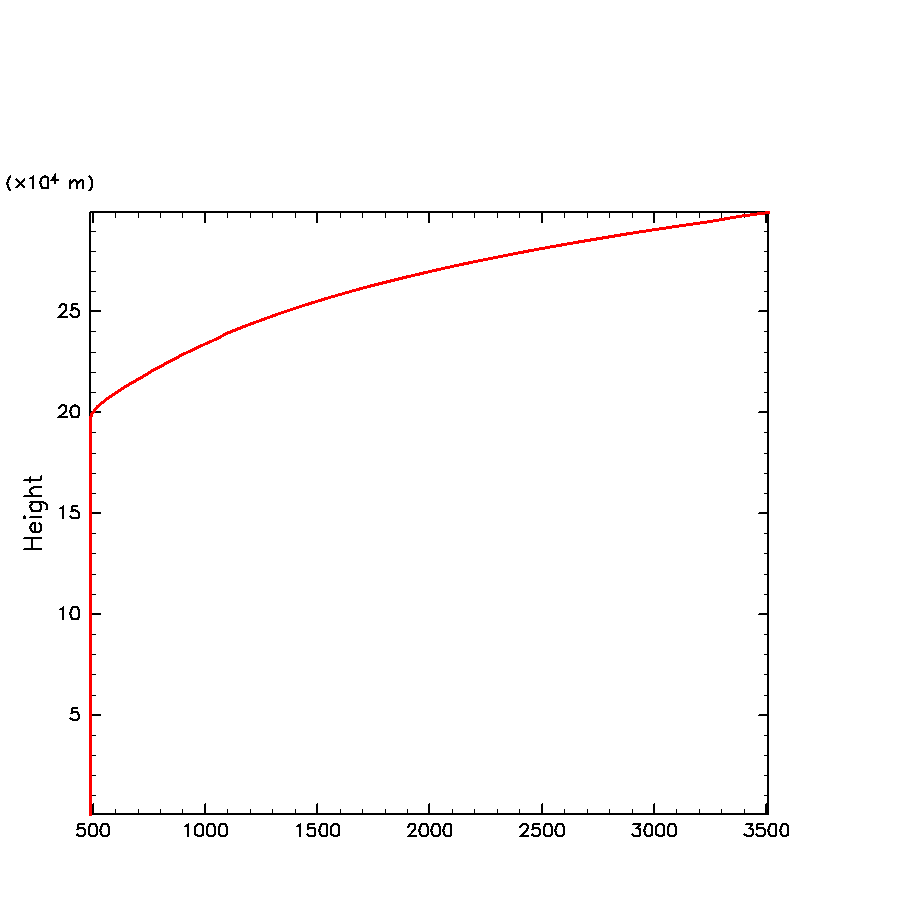

温位の基本場

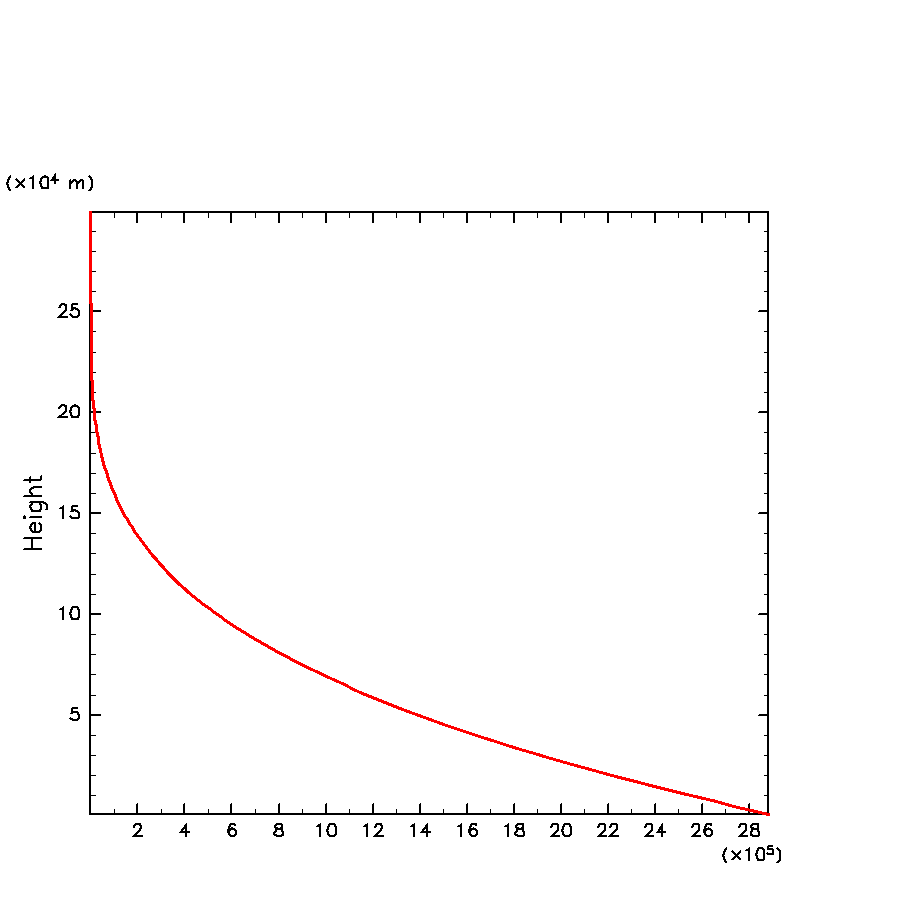

圧力の基本場

エクスナー関数の基本場

密度の基本場

音波速度の基本場

分子量の寄与の基本場

H2O 蒸気の混合比の基本場

H2S 蒸気の混合比の基本場

NH3 蒸気の混合比の基本場

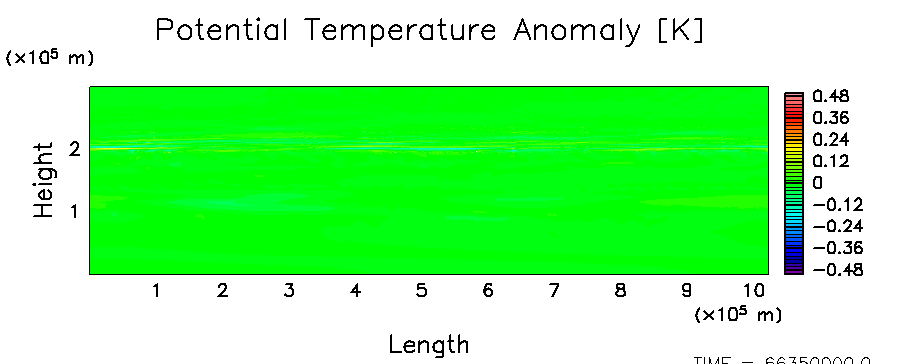

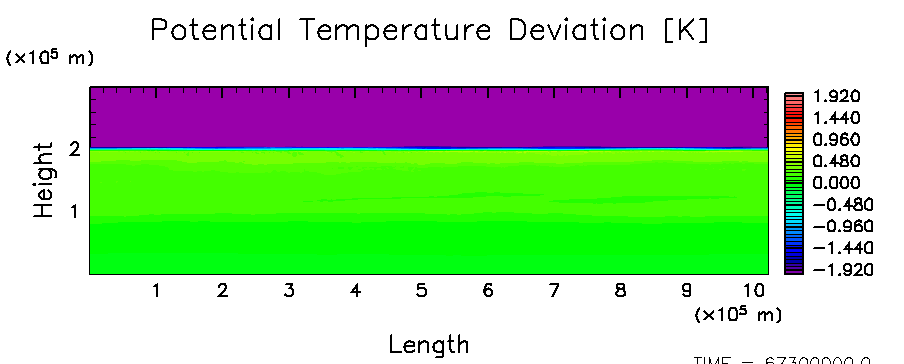

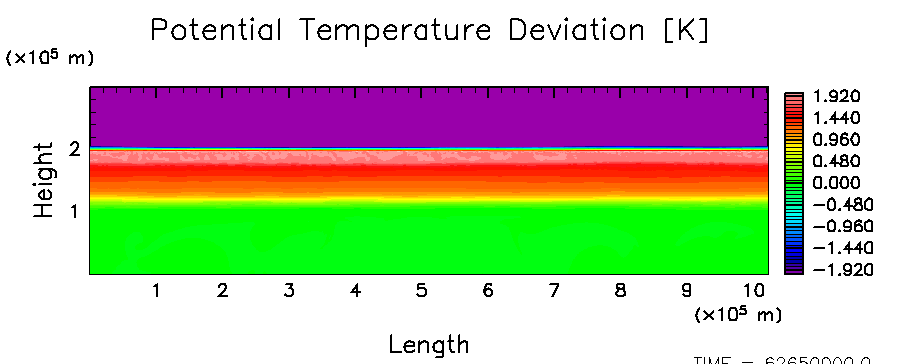

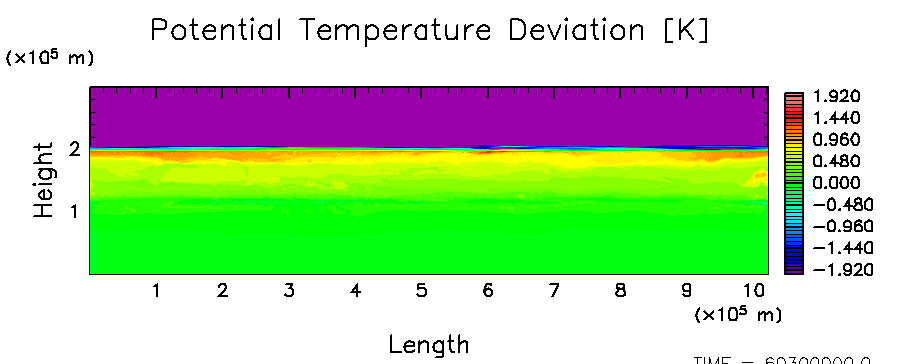

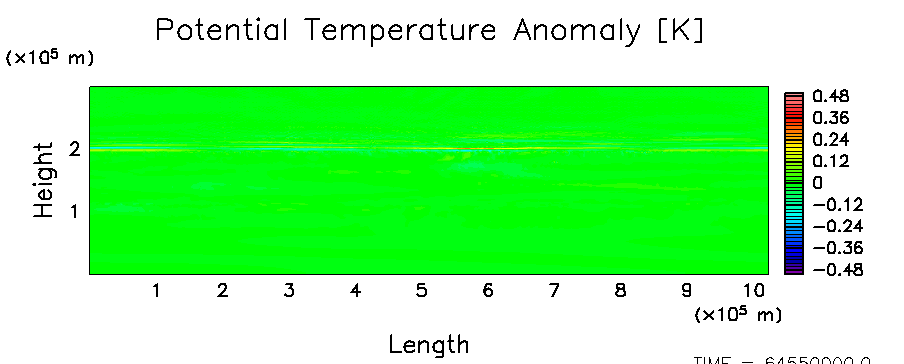

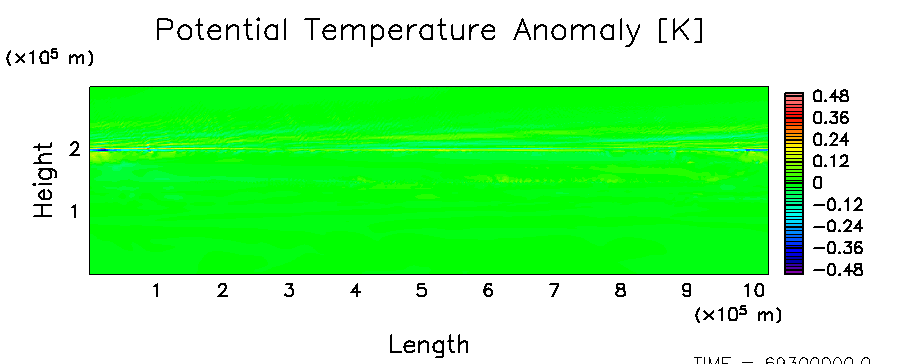

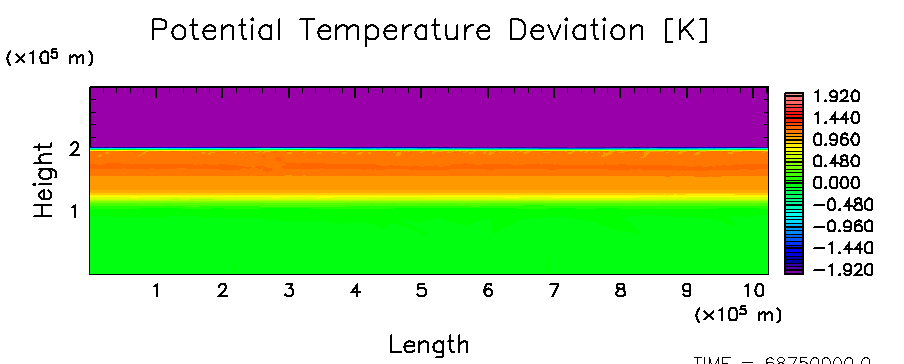

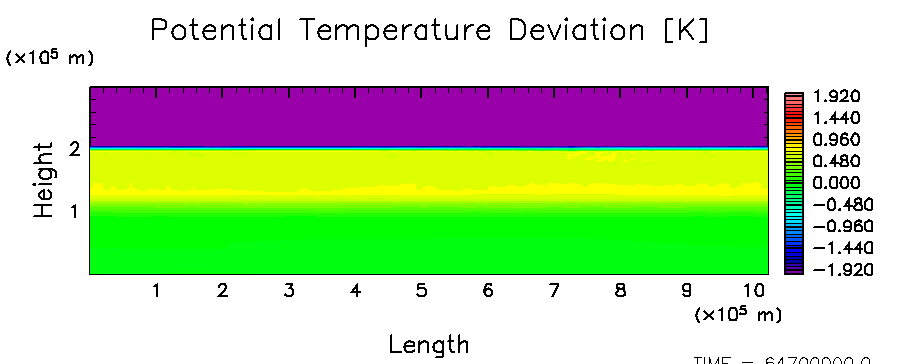

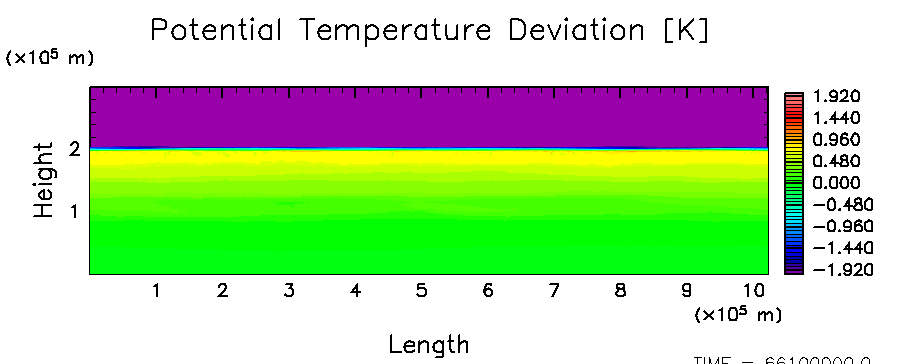

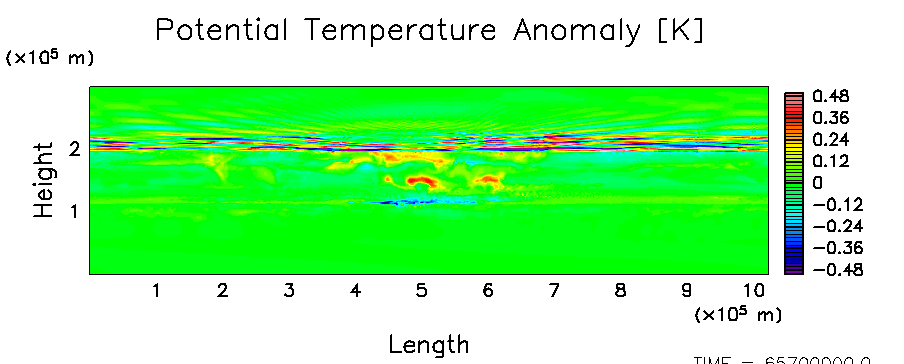

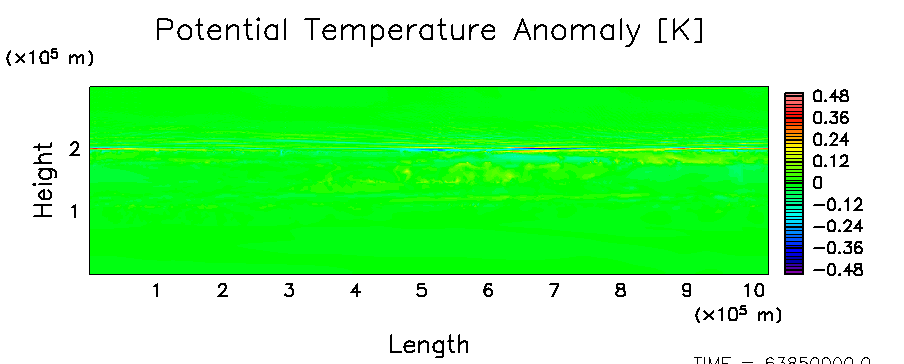

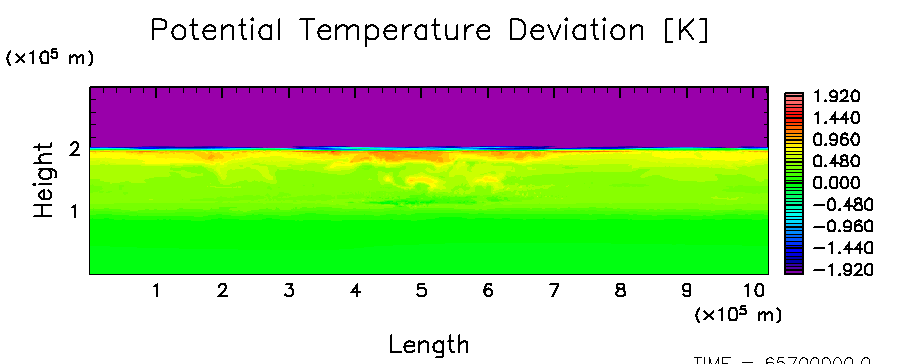

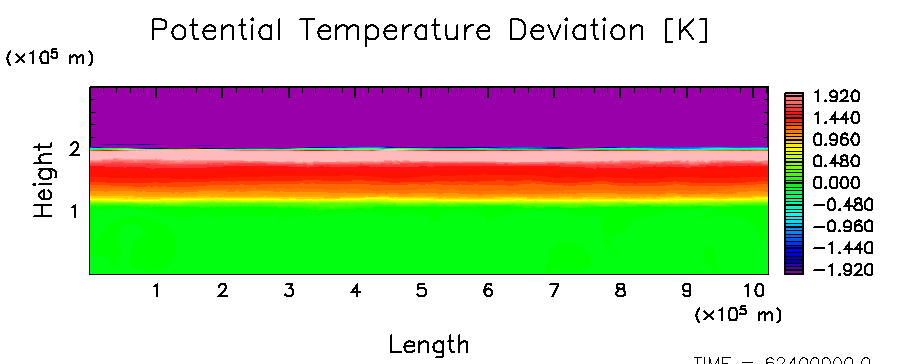

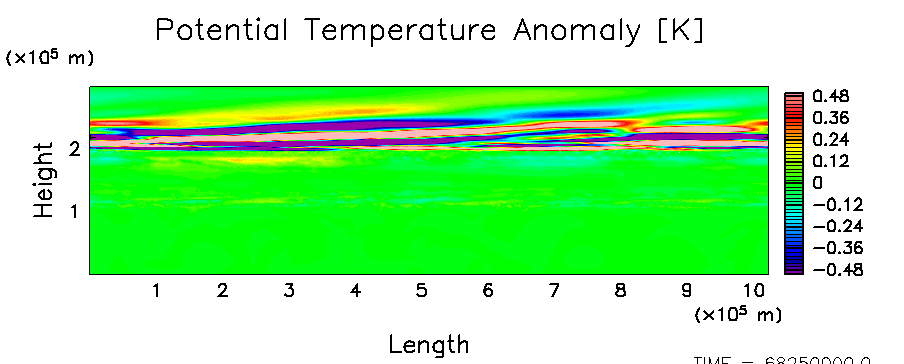

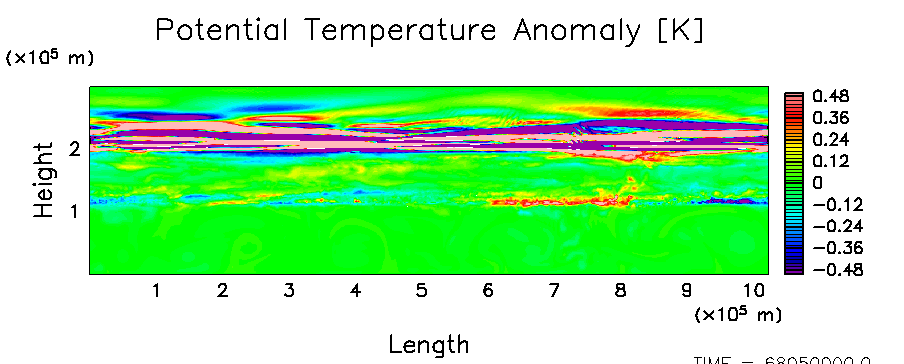

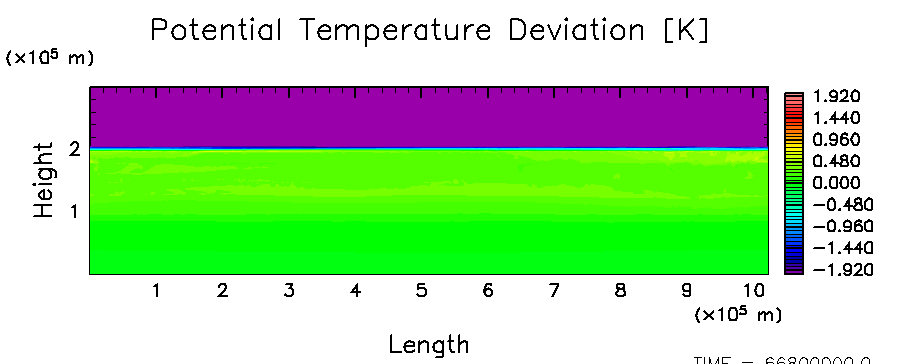

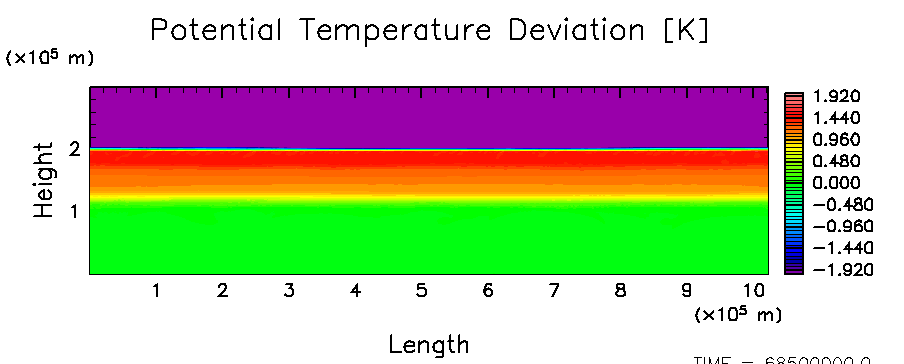

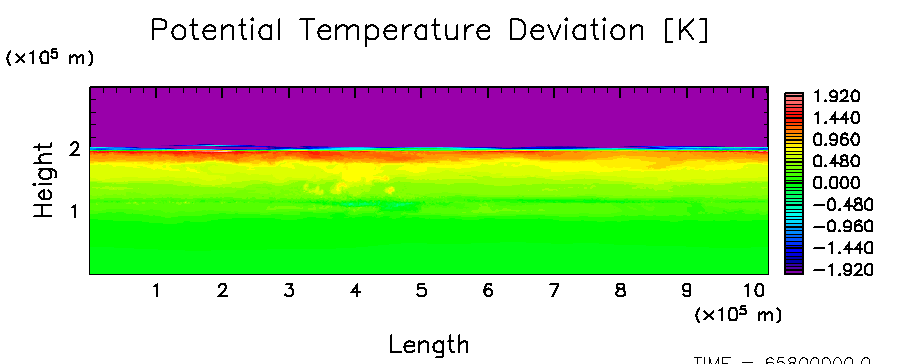

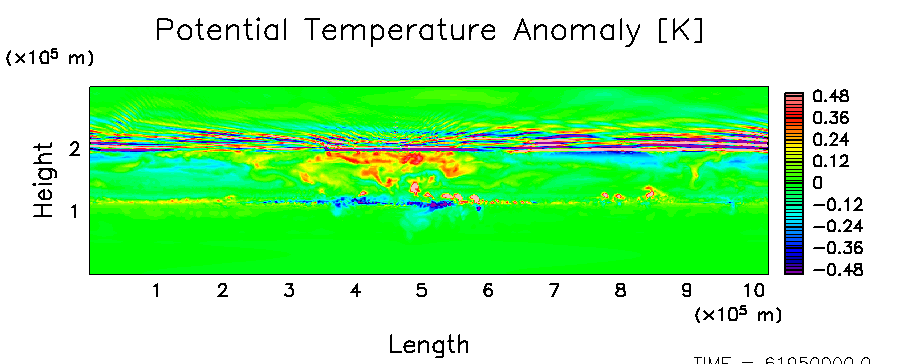

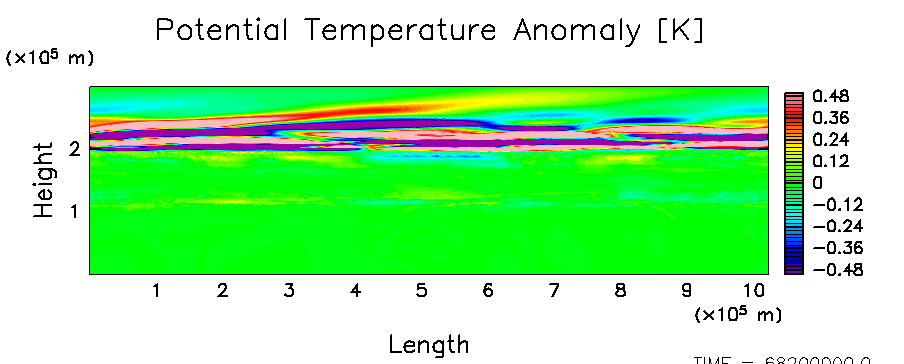

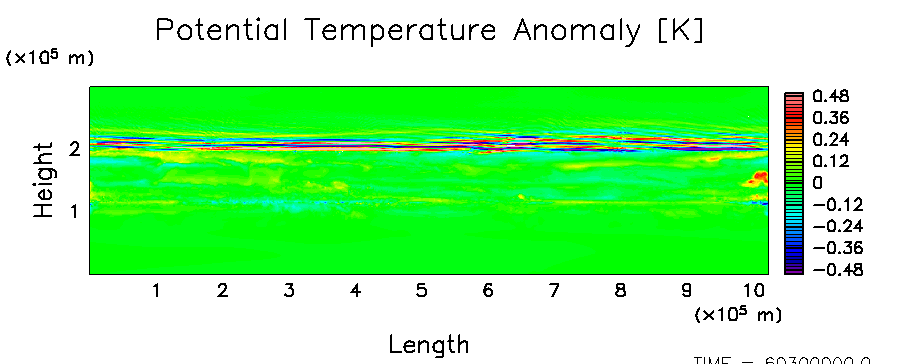

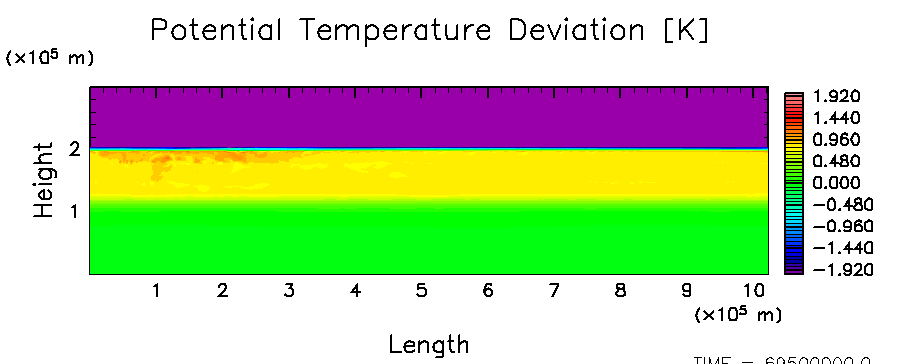

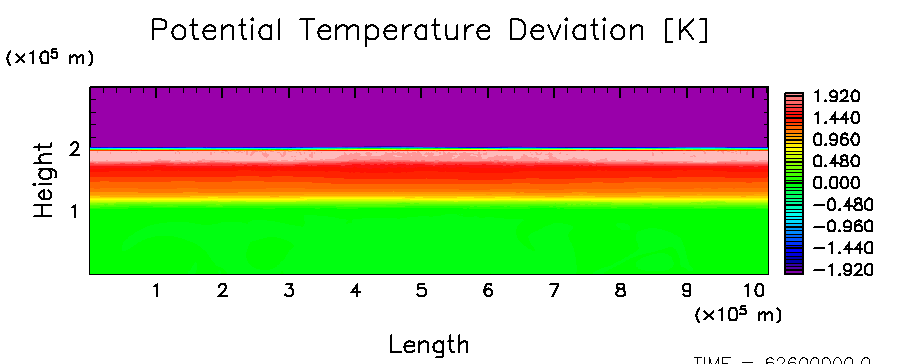

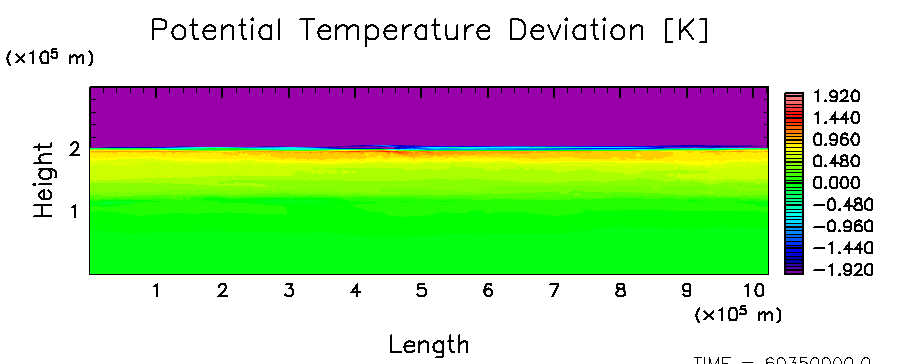

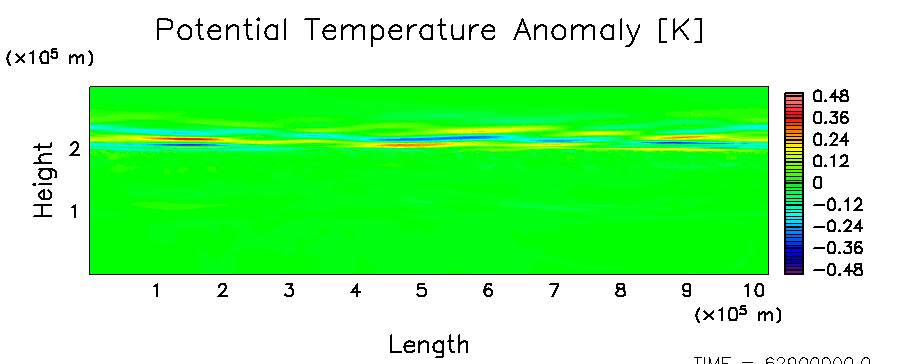

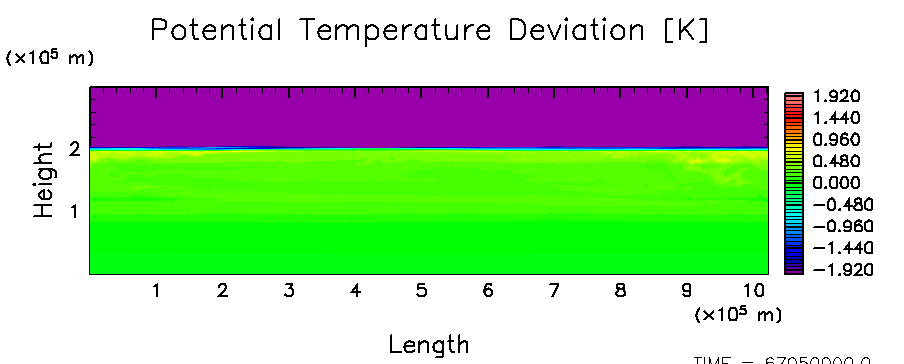

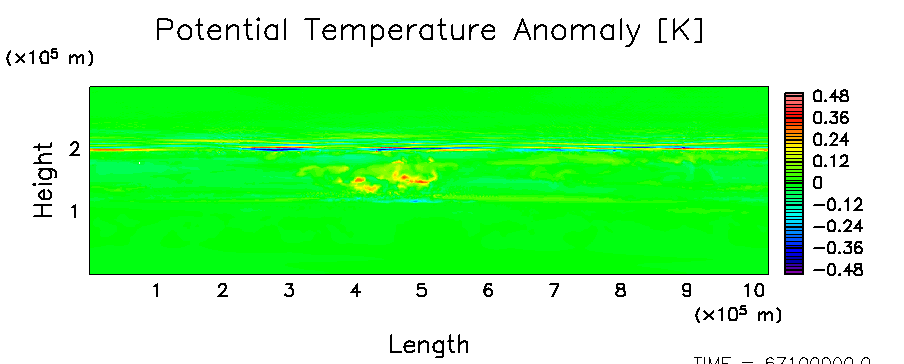

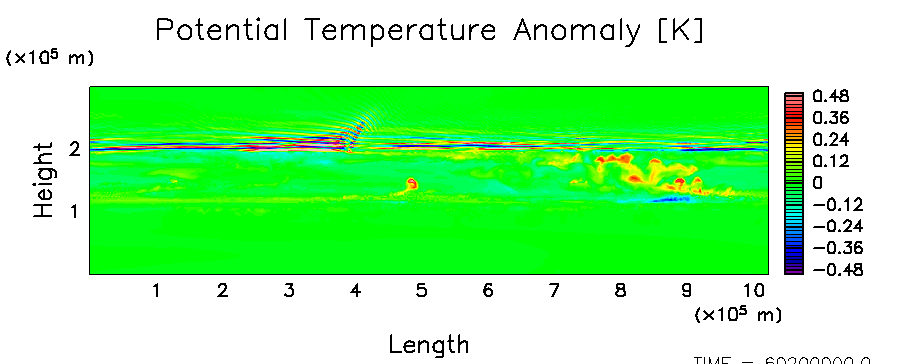

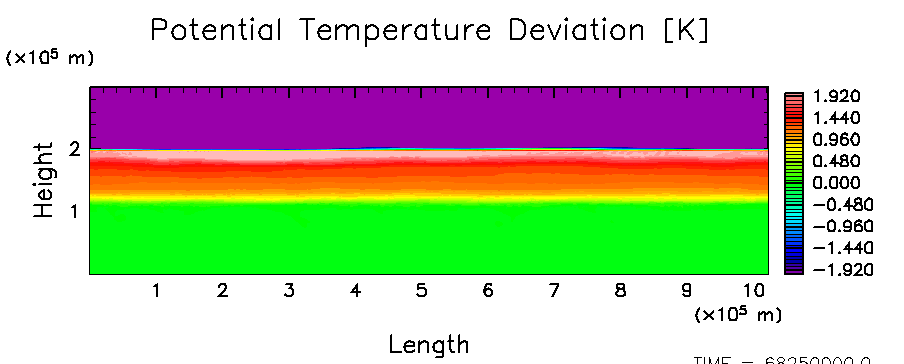

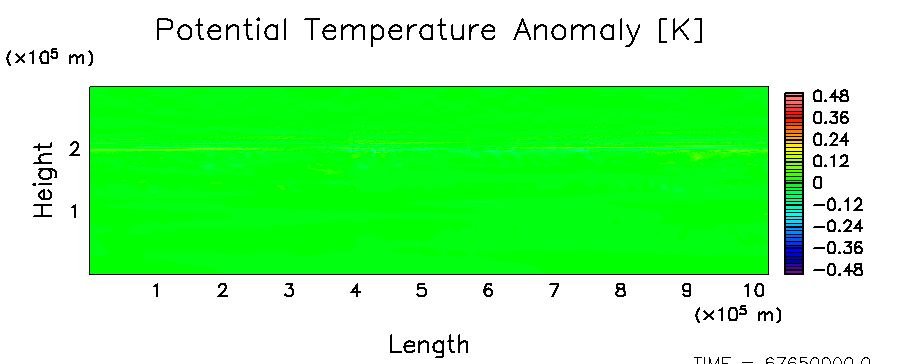

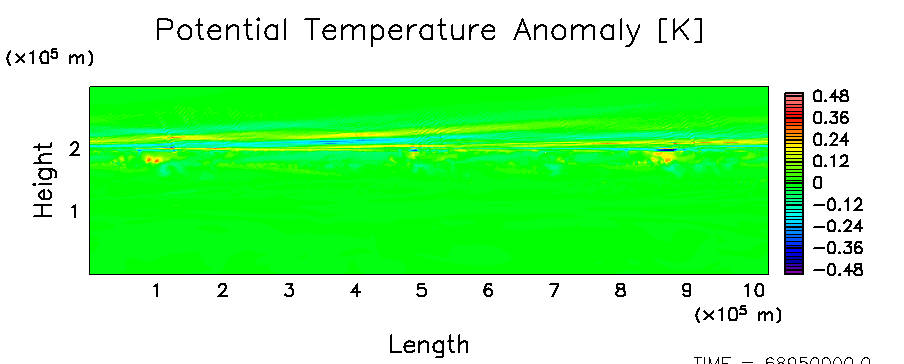

温位偏差(初期値からのずれ)

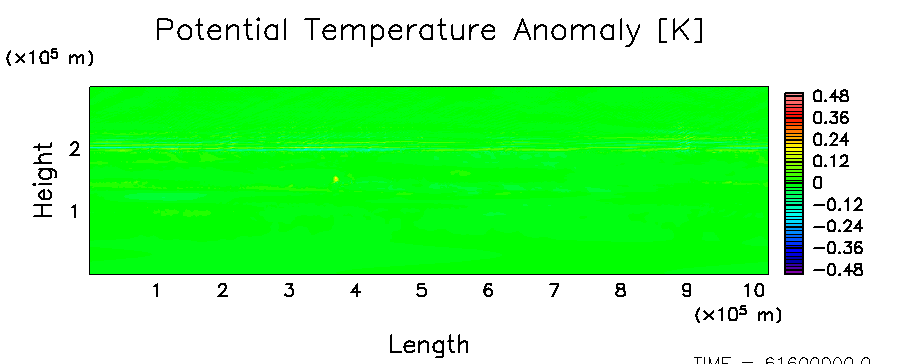

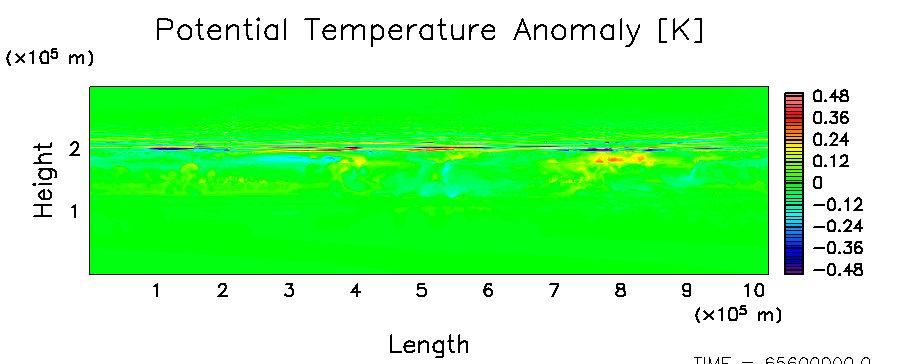

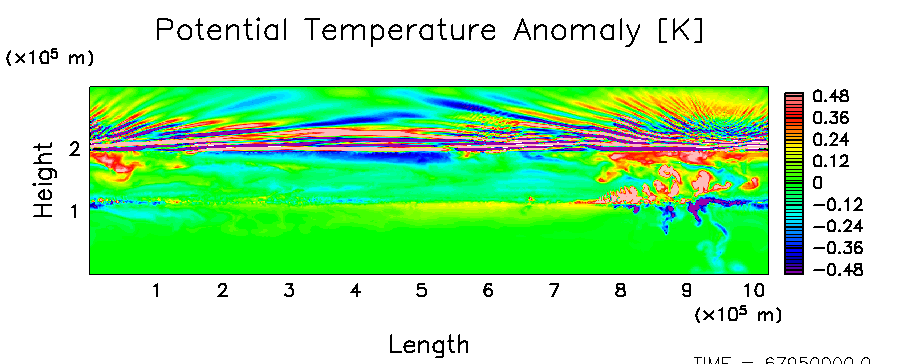

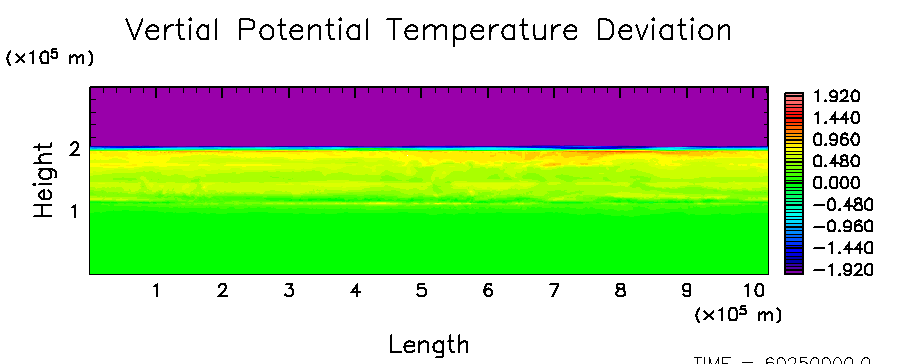

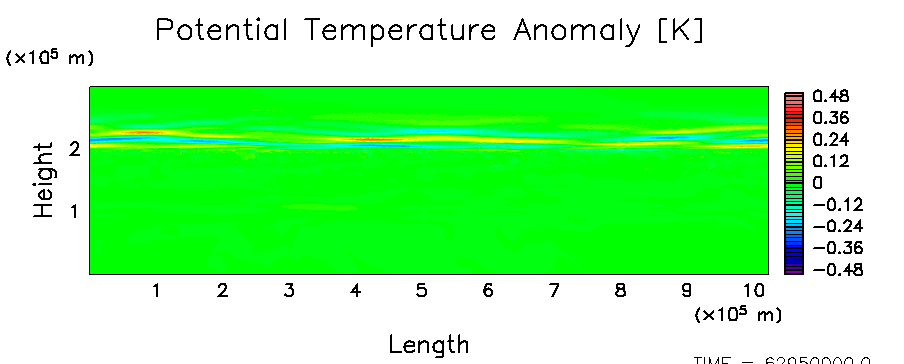

温位偏差(水平平均からのずれ)

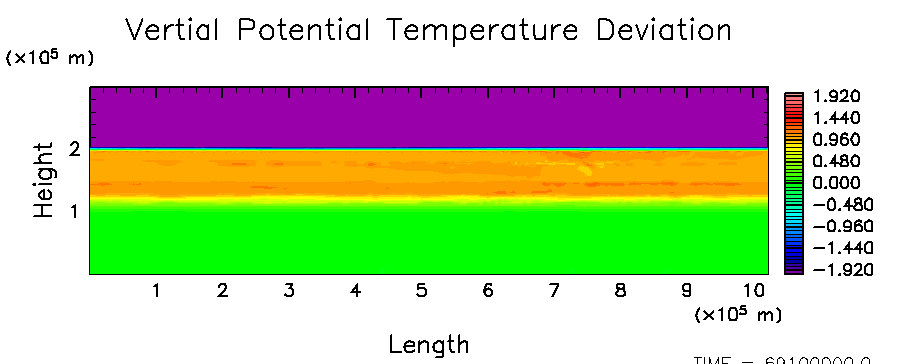

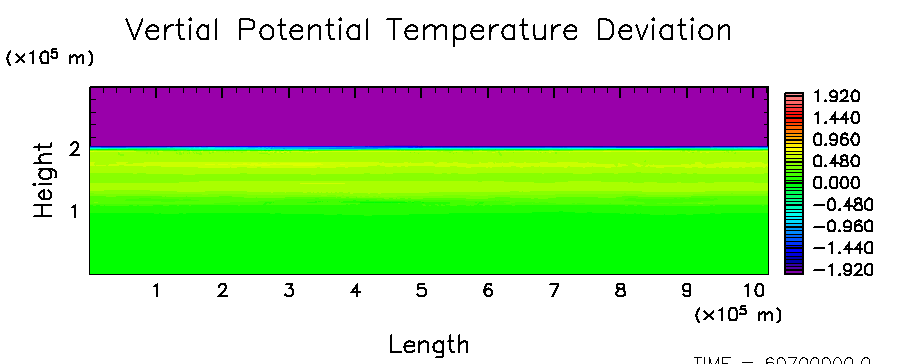

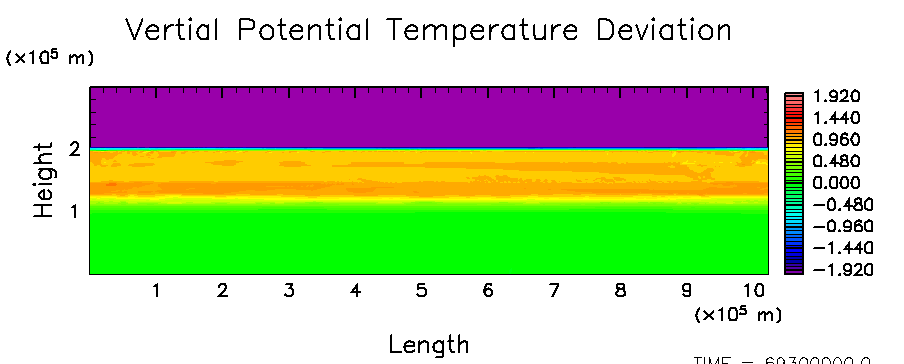

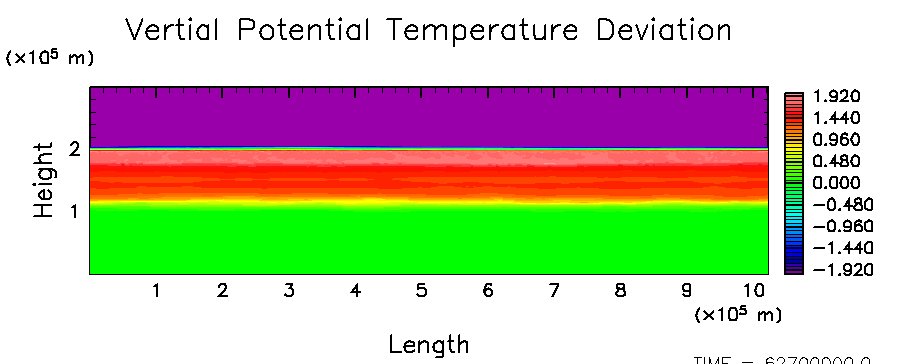

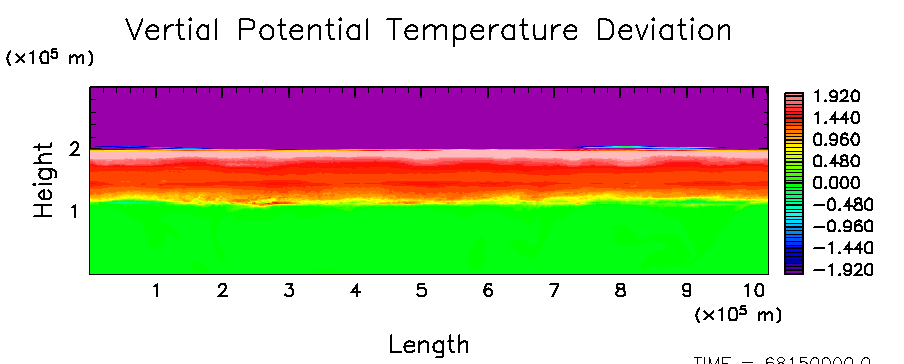

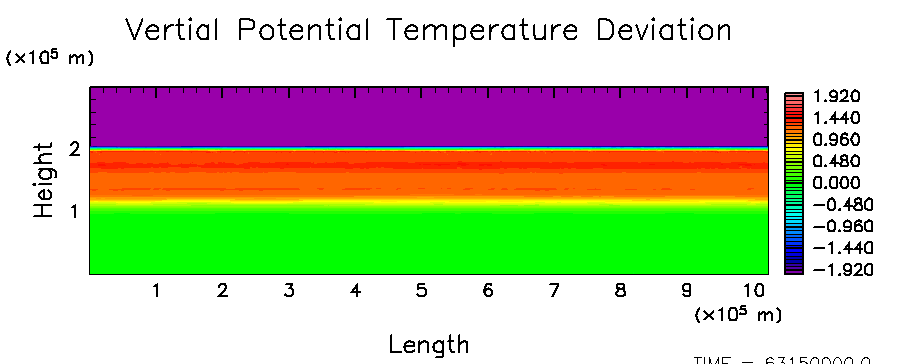

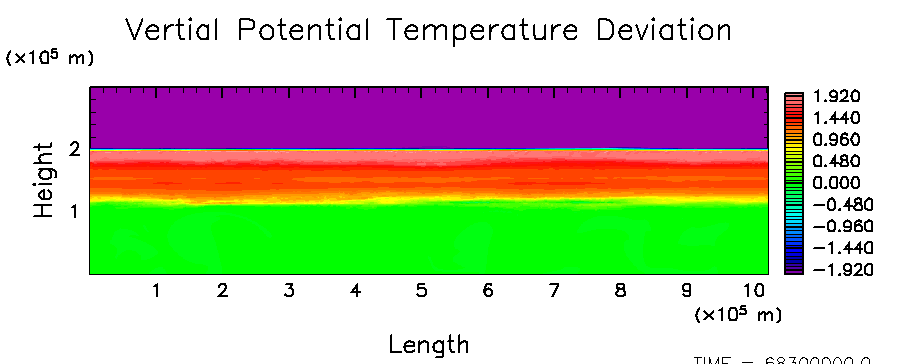

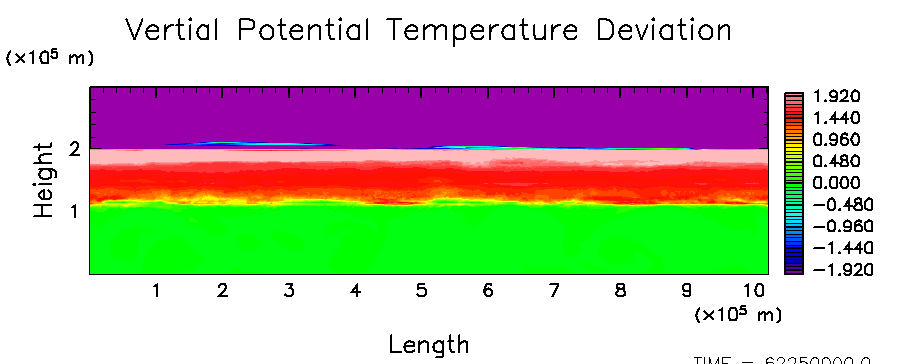

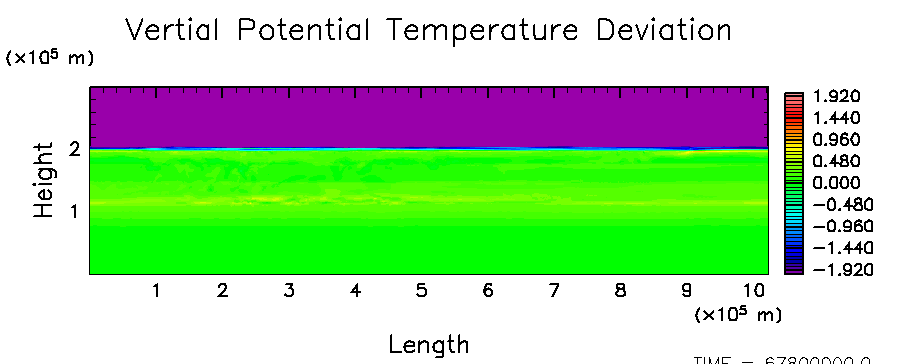

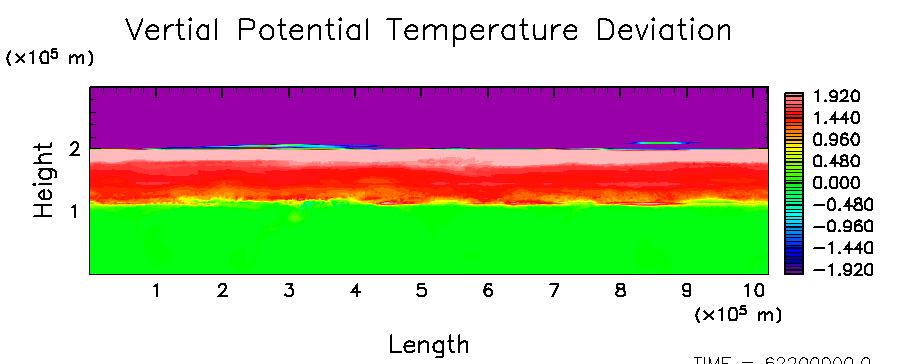

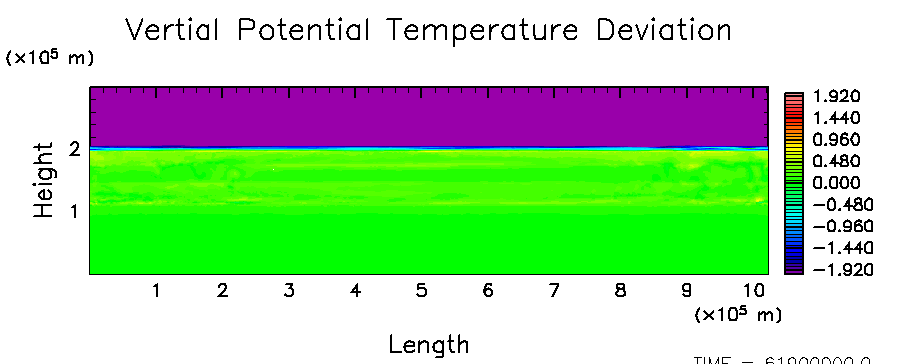

仮温位偏差(初期値からのずれ)

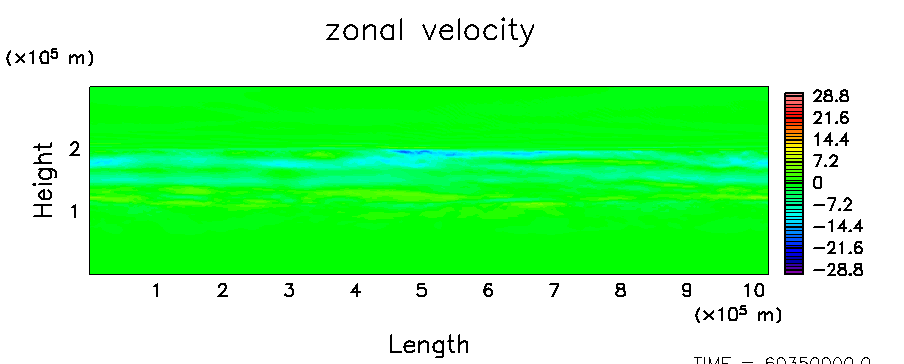

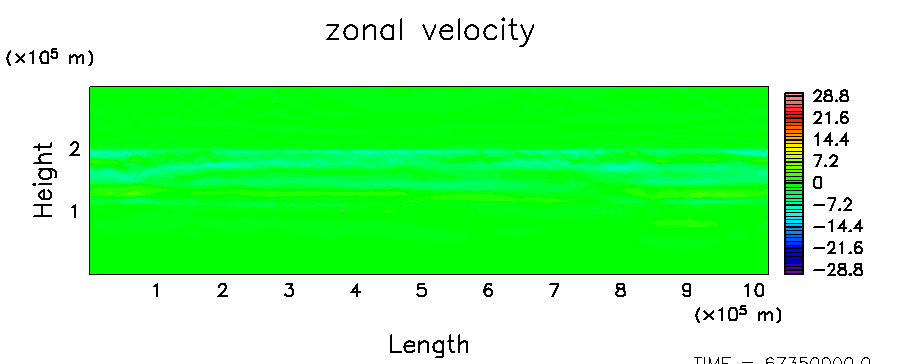

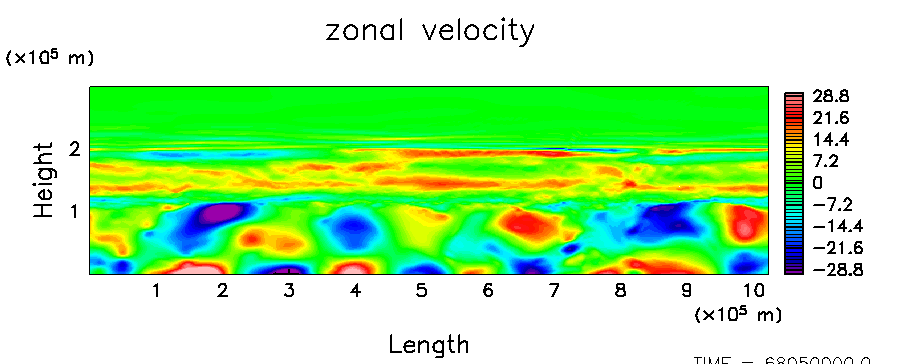

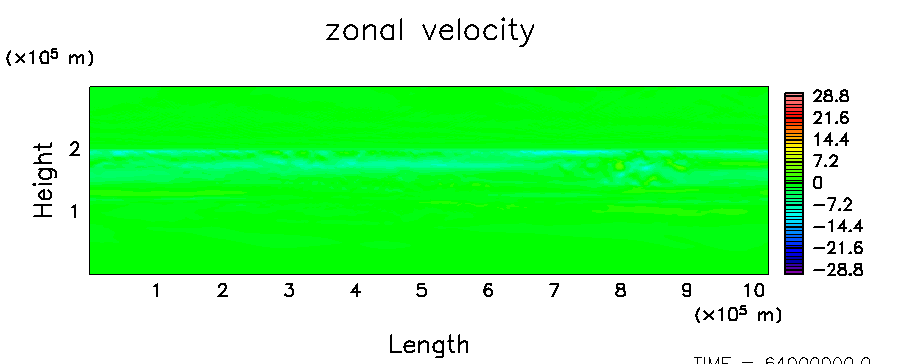

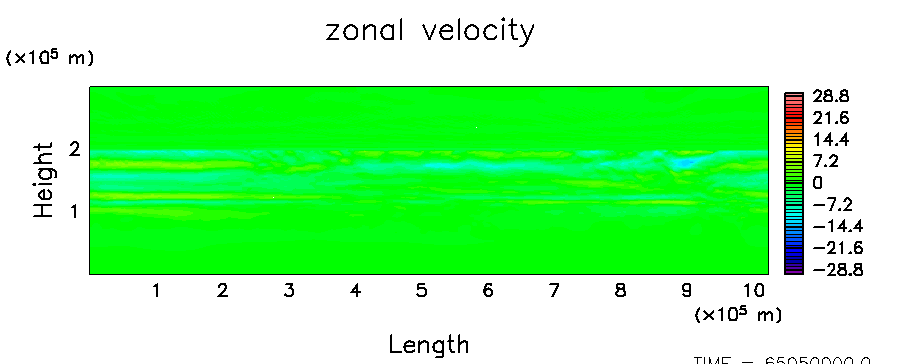

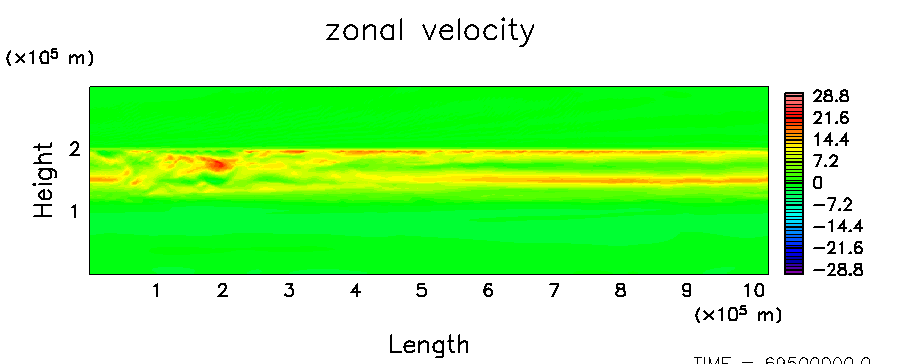

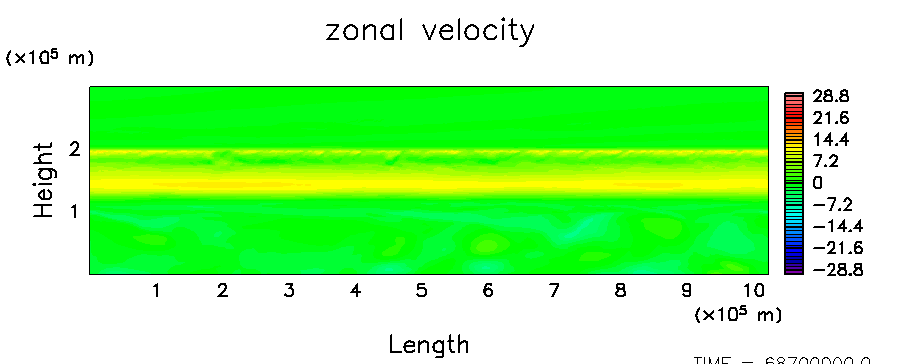

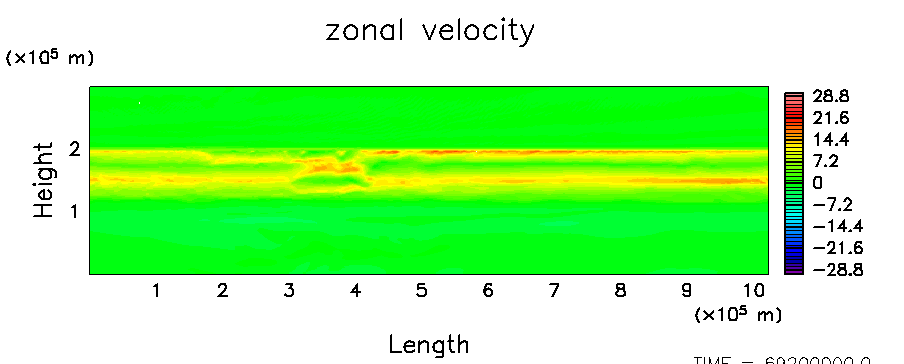

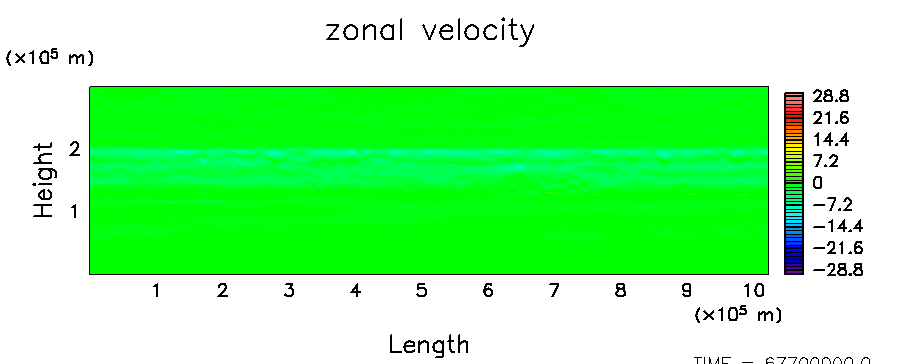

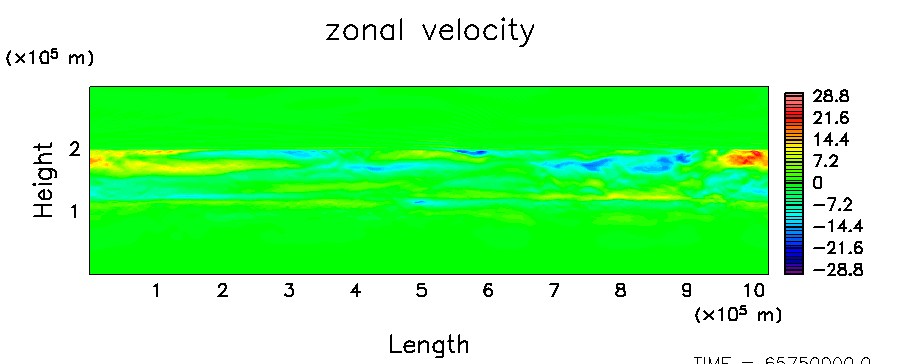

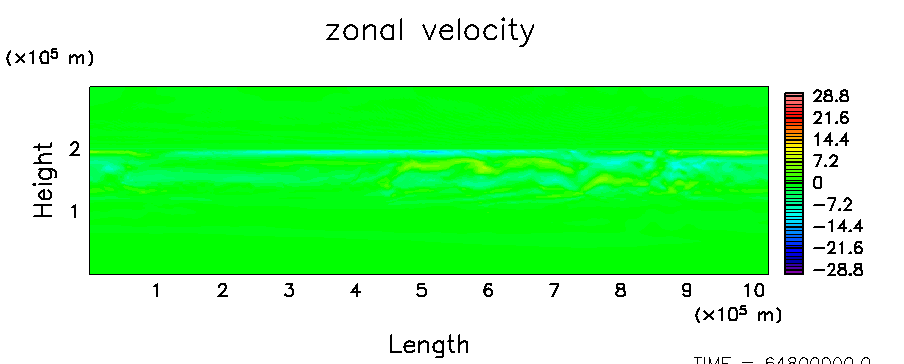

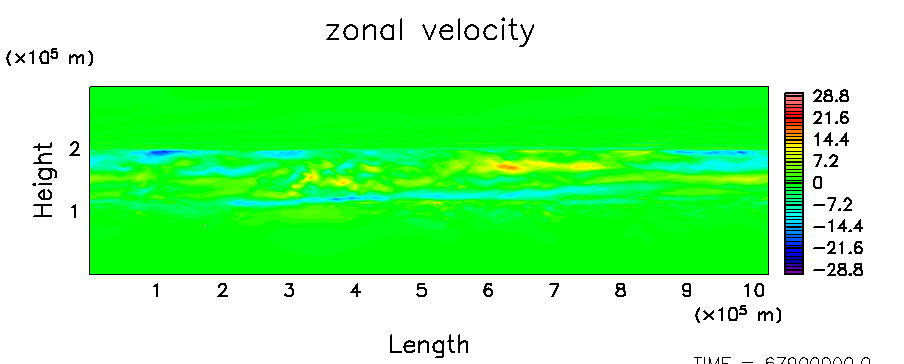

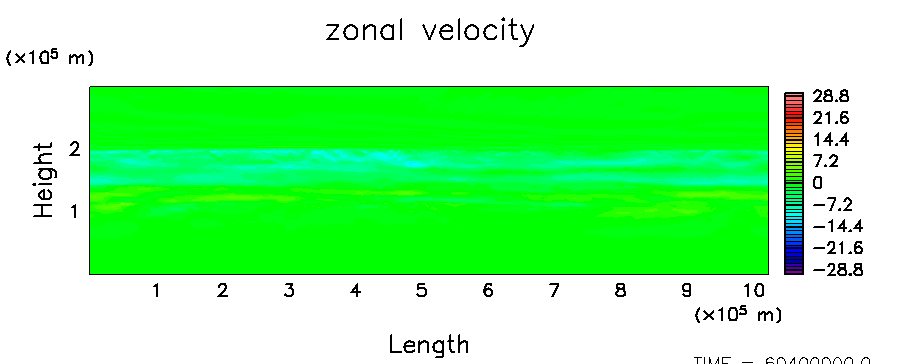

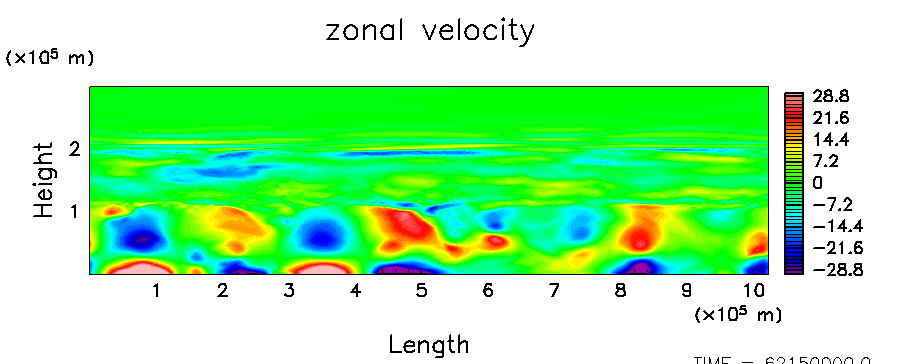

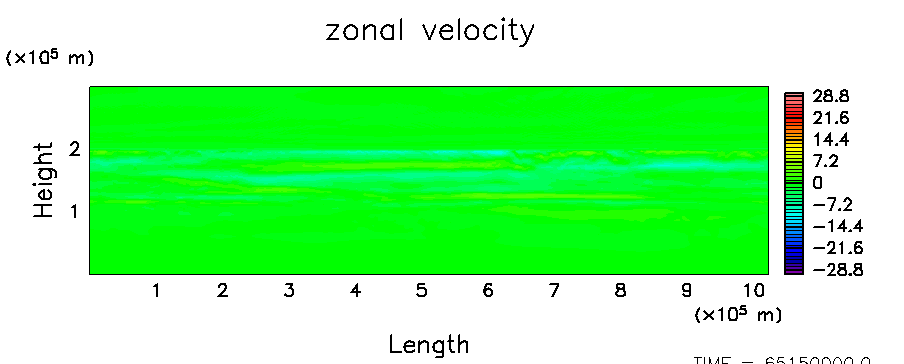

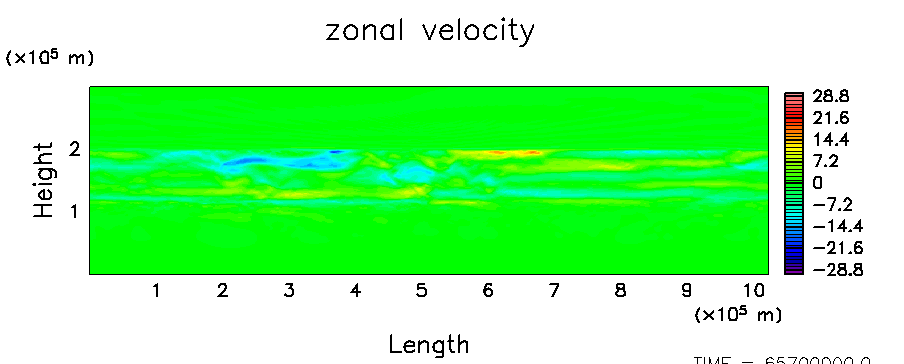

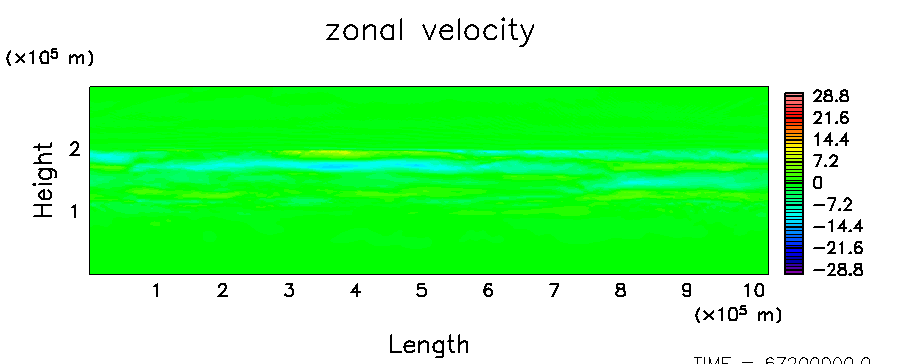

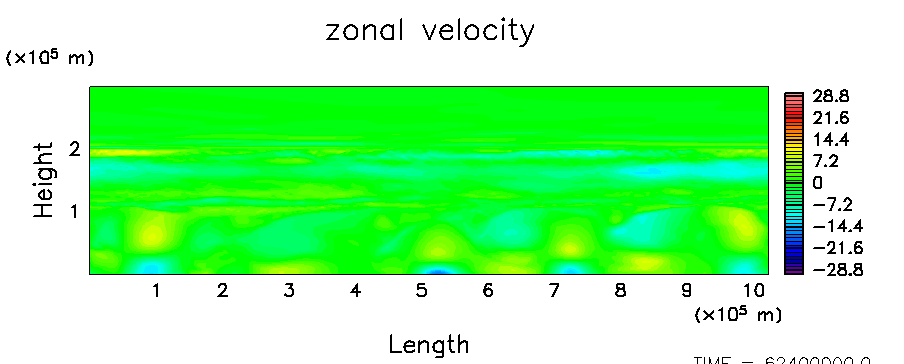

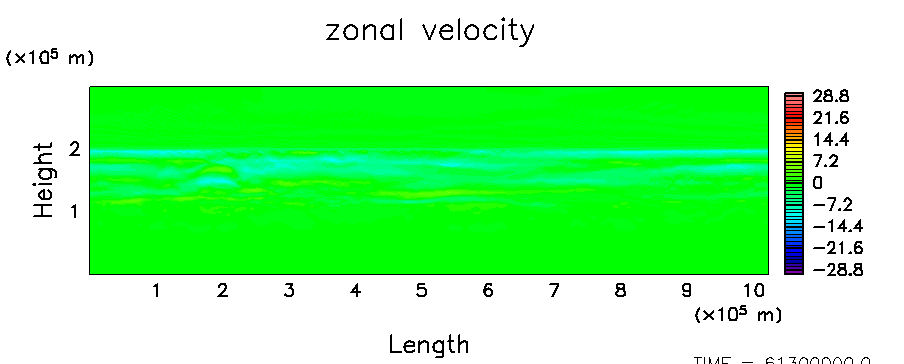

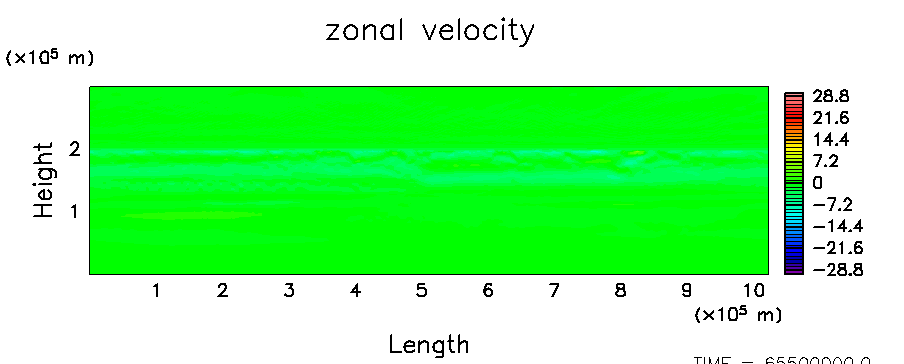

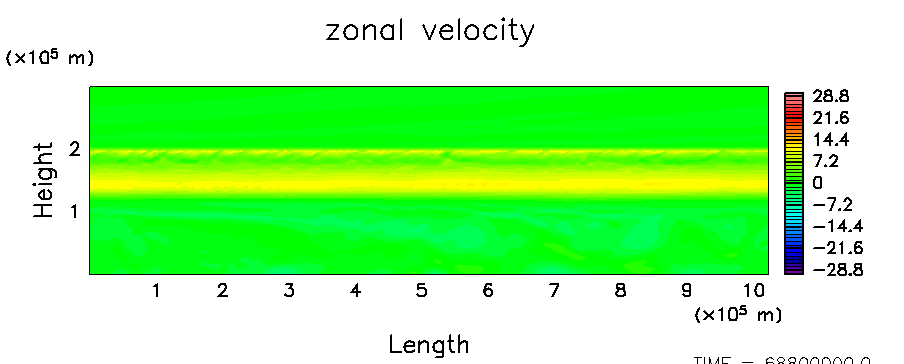

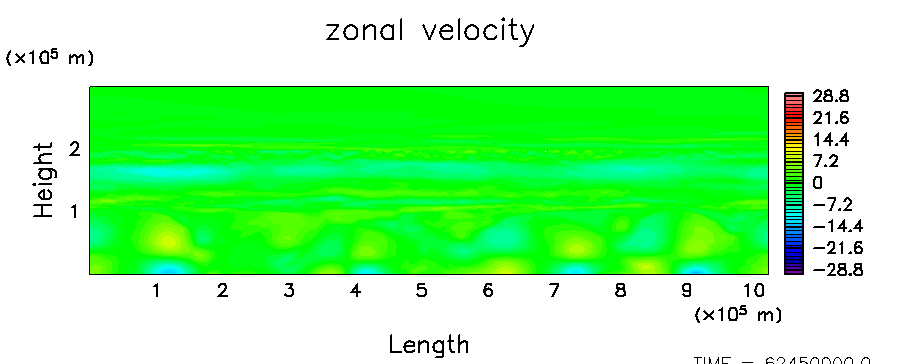

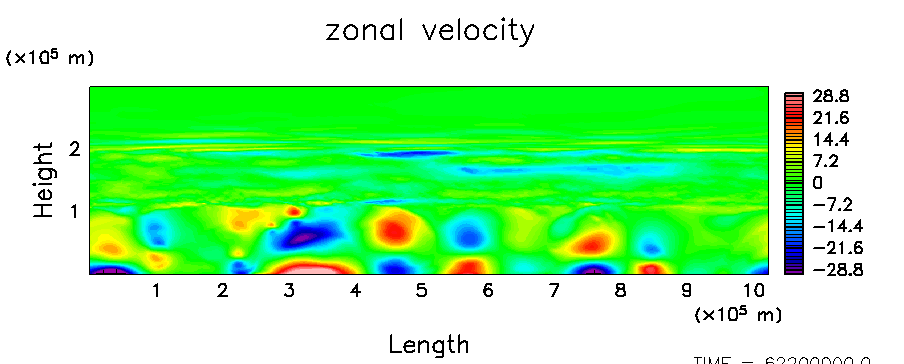

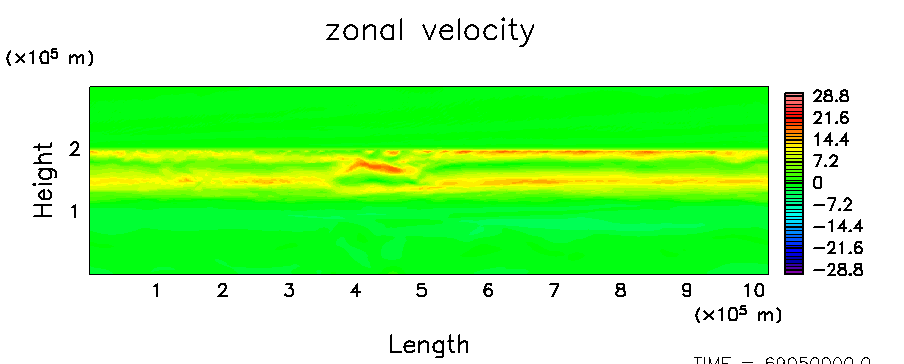

水平風速

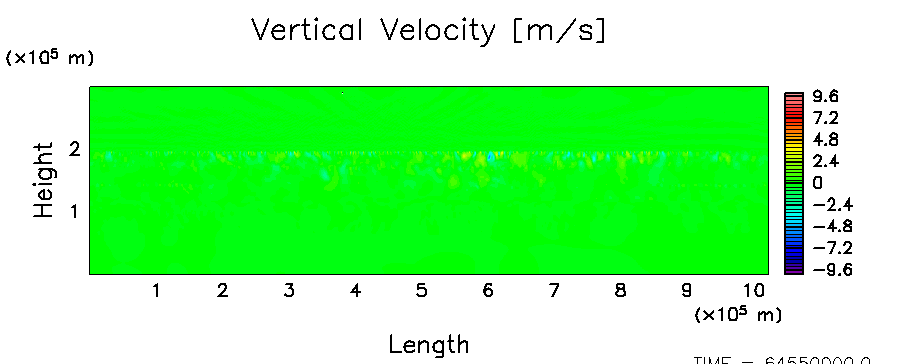

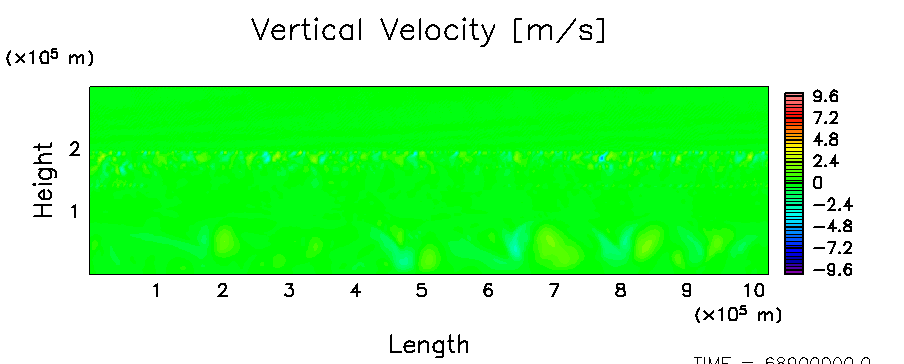

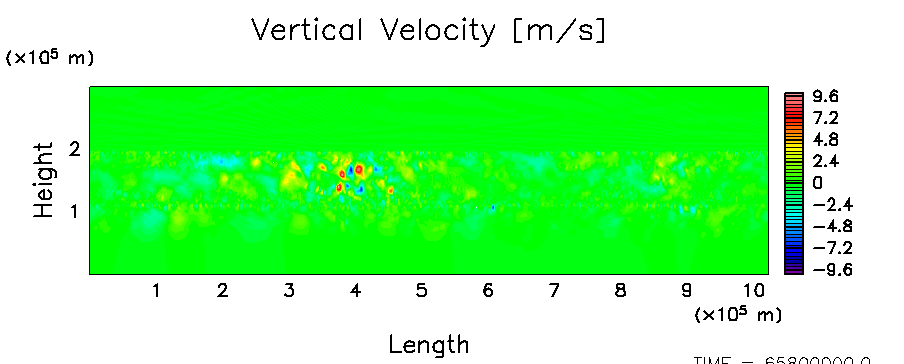

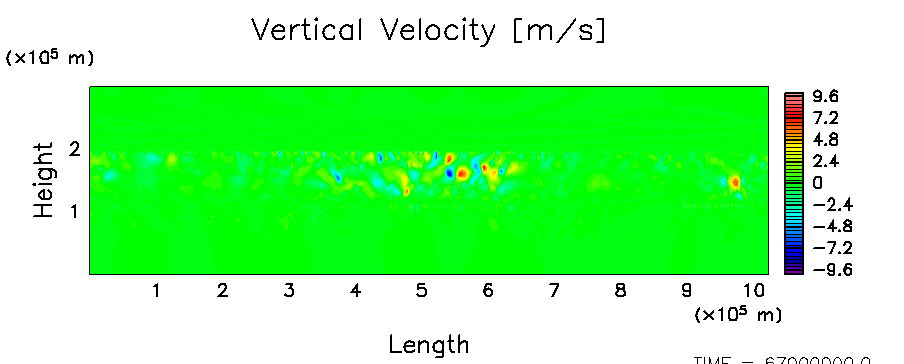

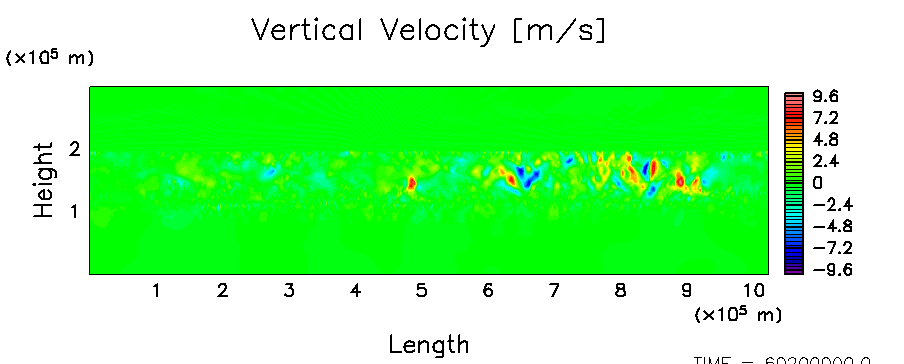

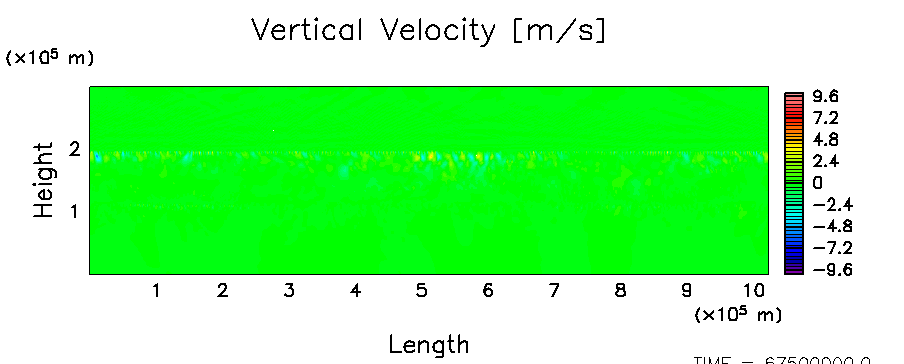

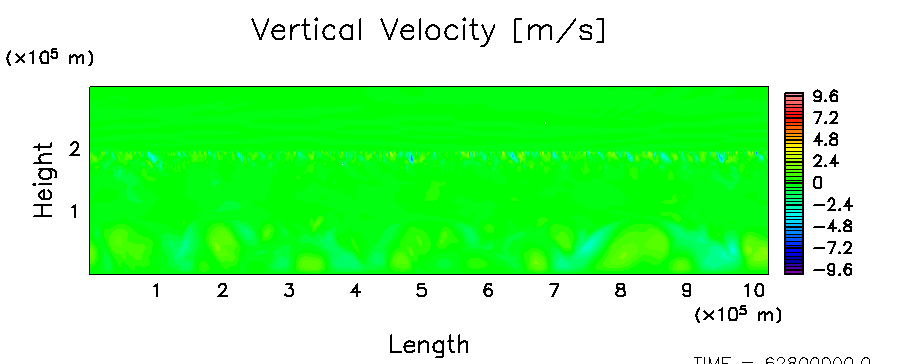

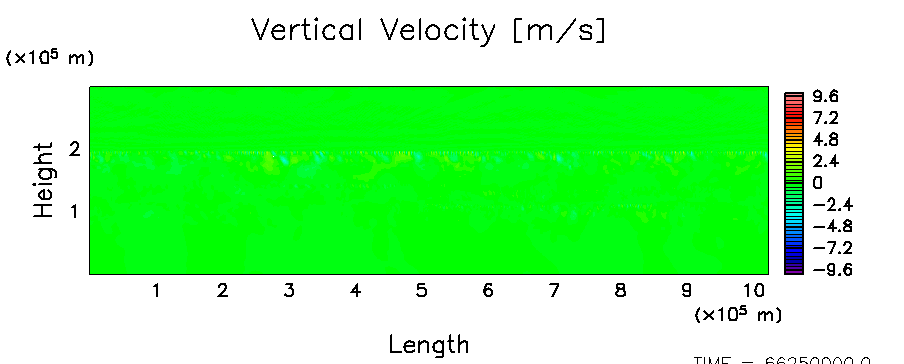

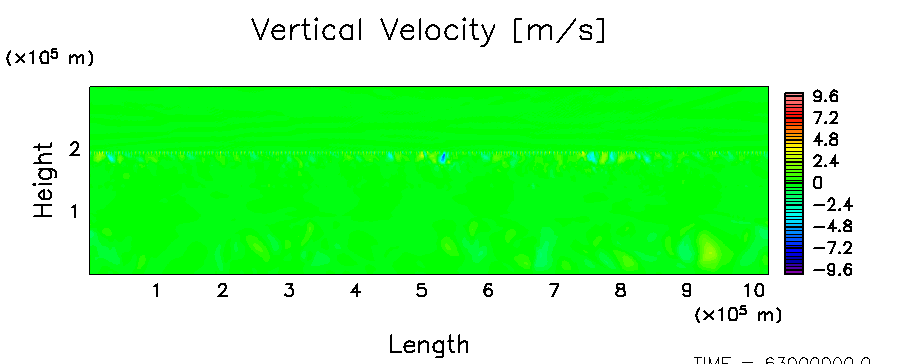

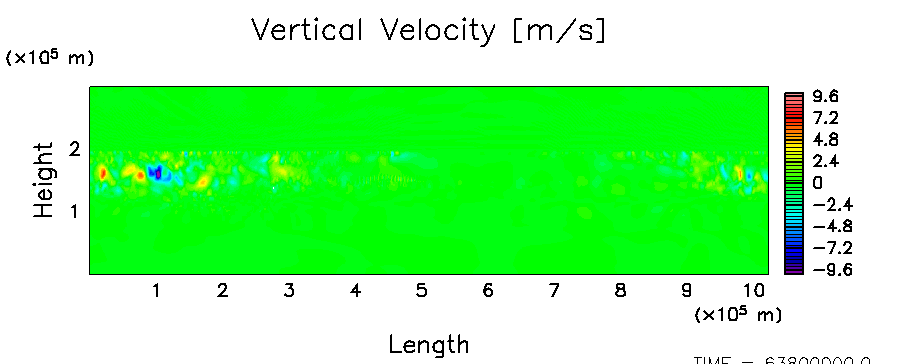

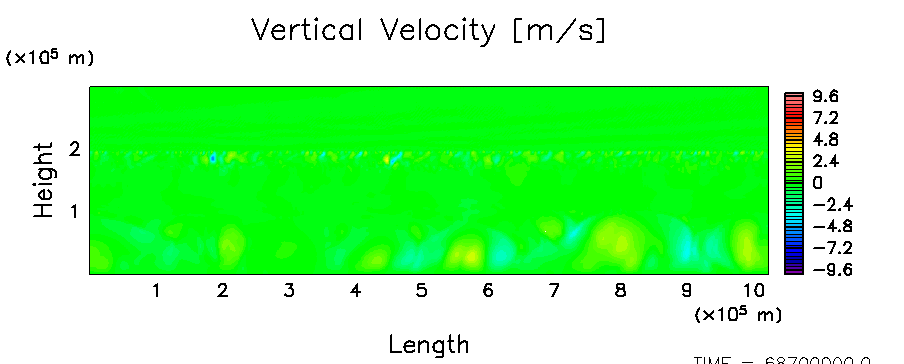

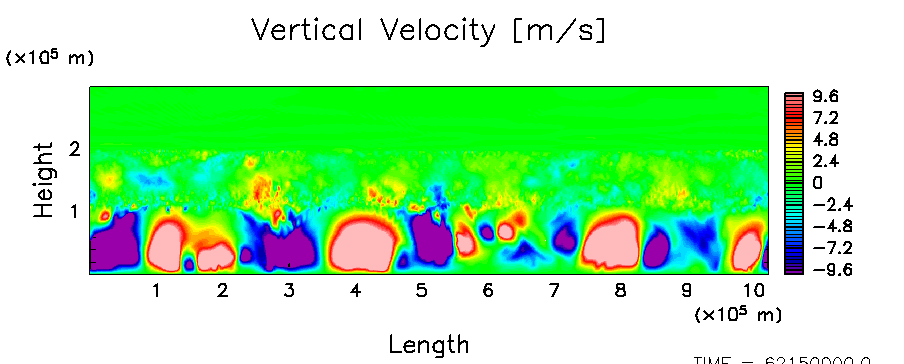

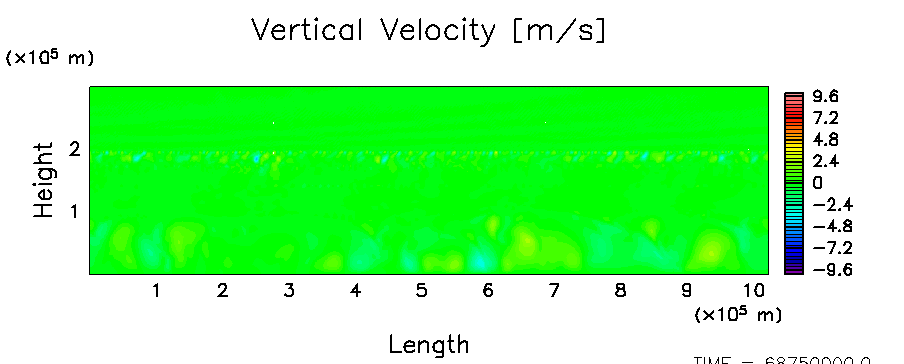

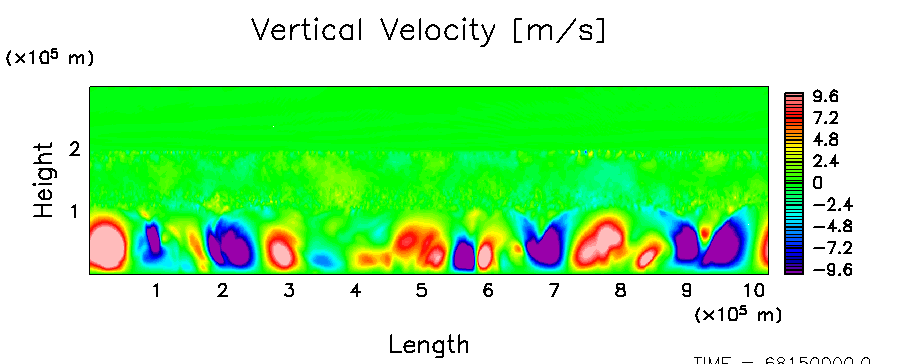

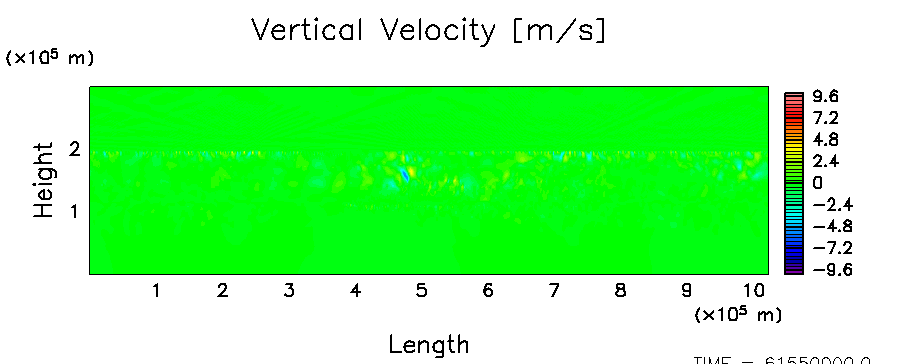

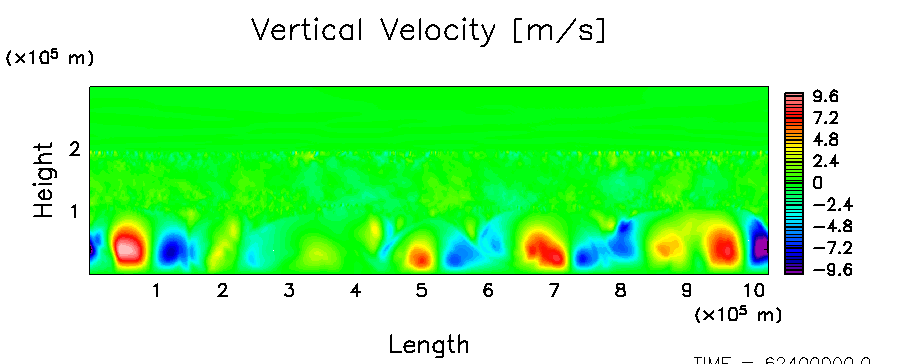

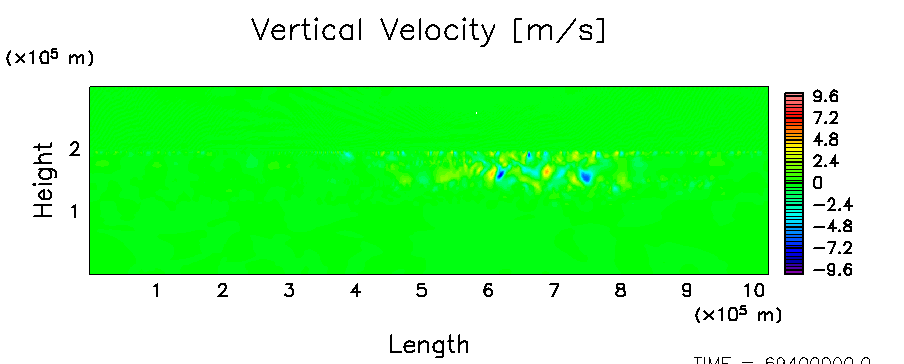

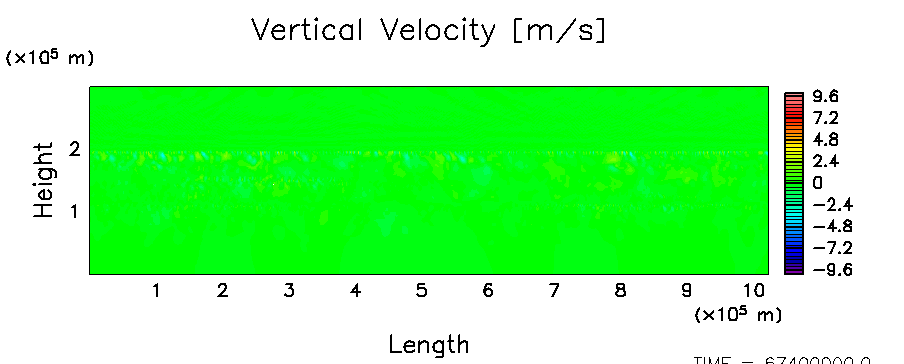

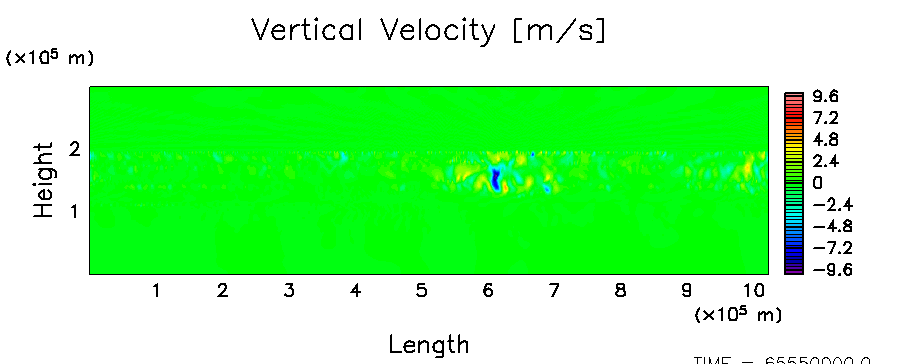

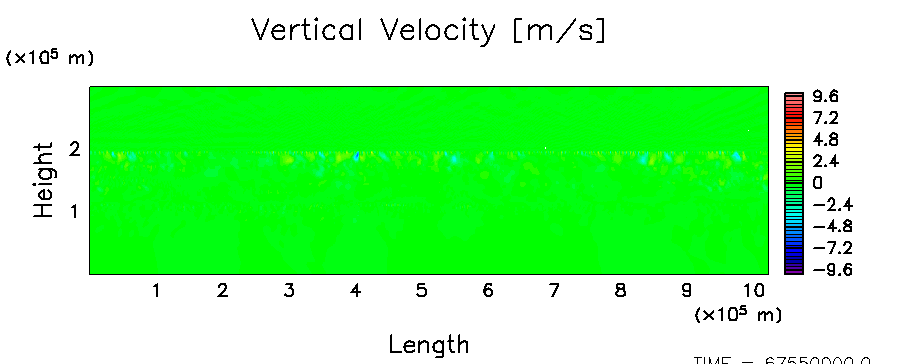

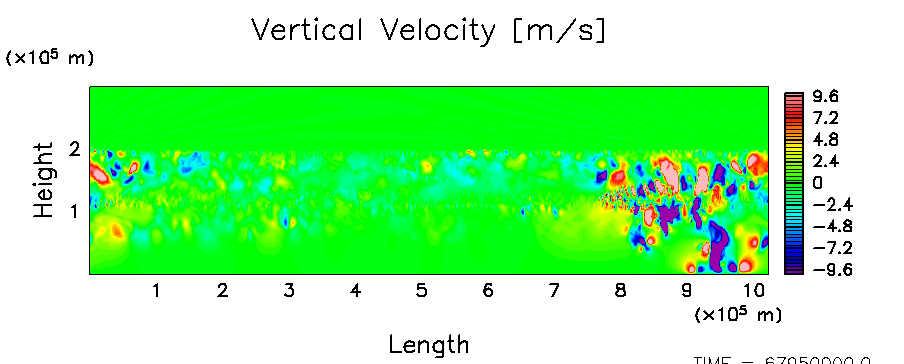

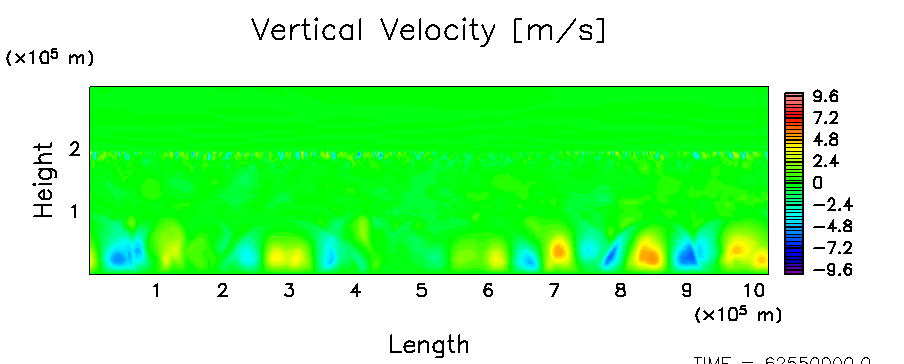

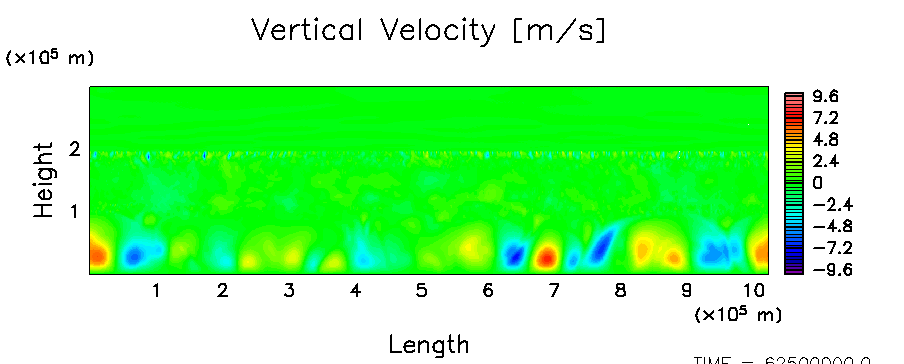

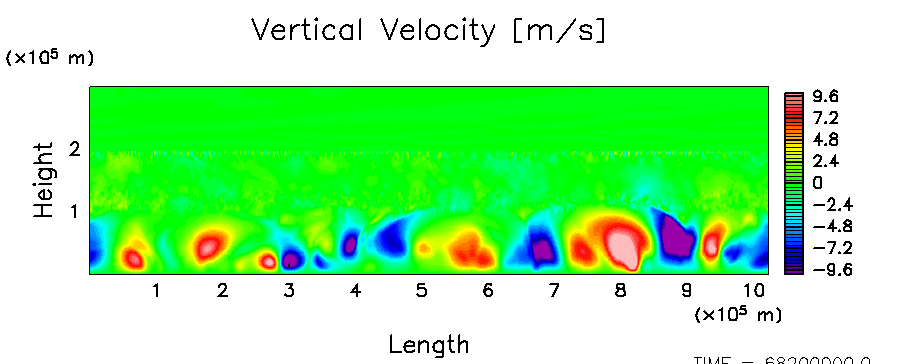

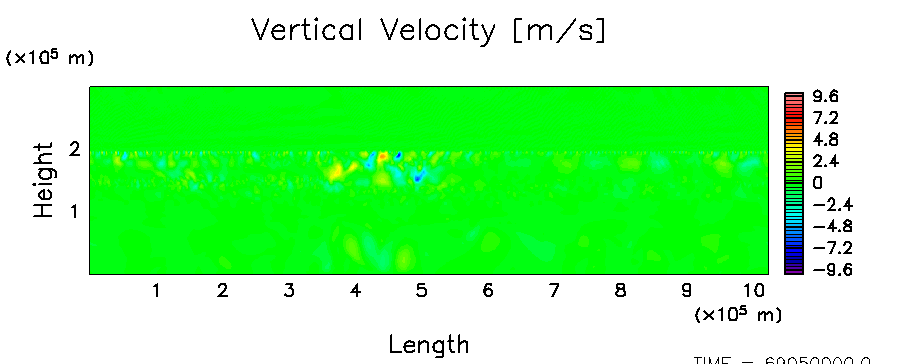

鉛直風速

流線関数(線型プロット)

凝結成分気体混合比(赤: H2O, 緑: H2S, 青: NH3)

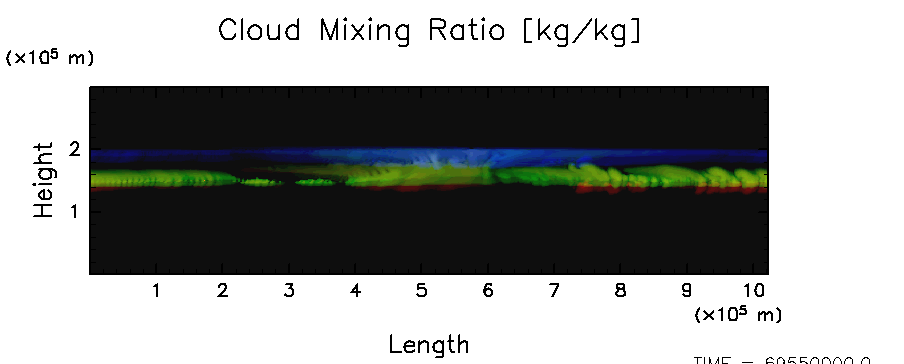

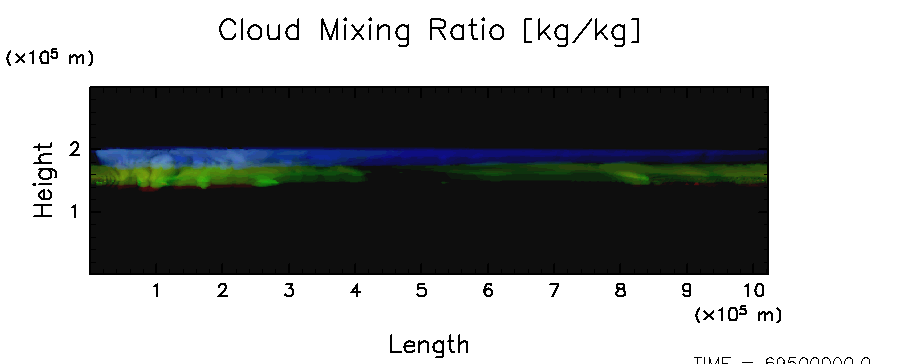

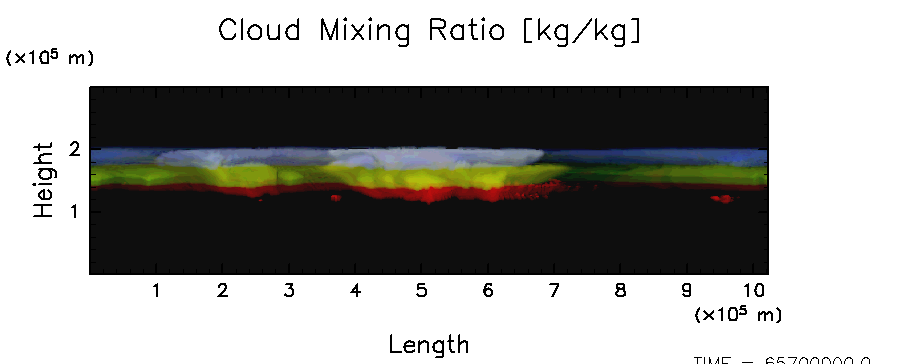

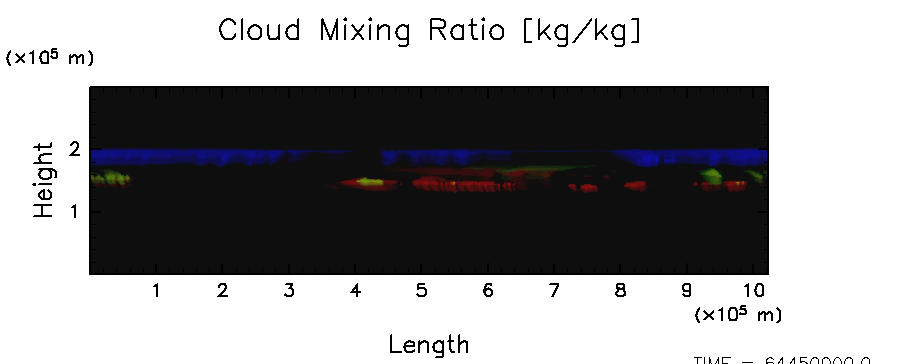

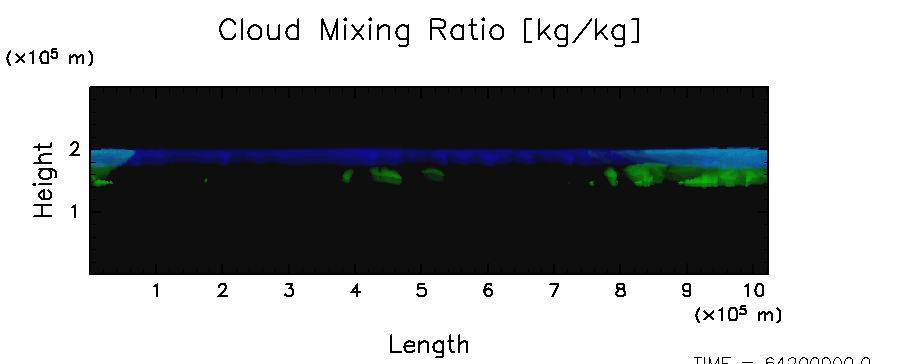

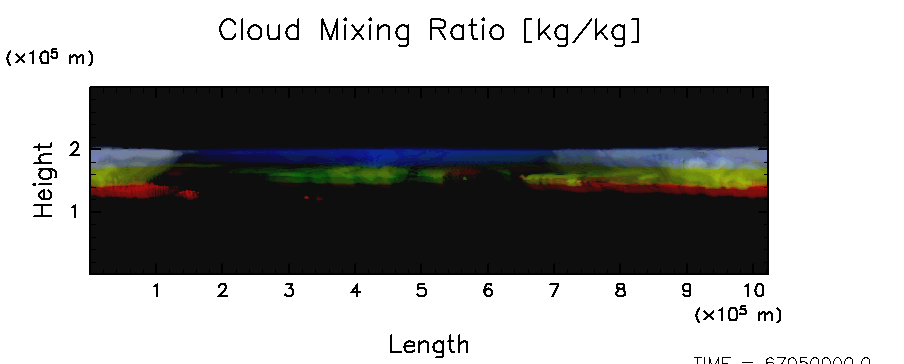

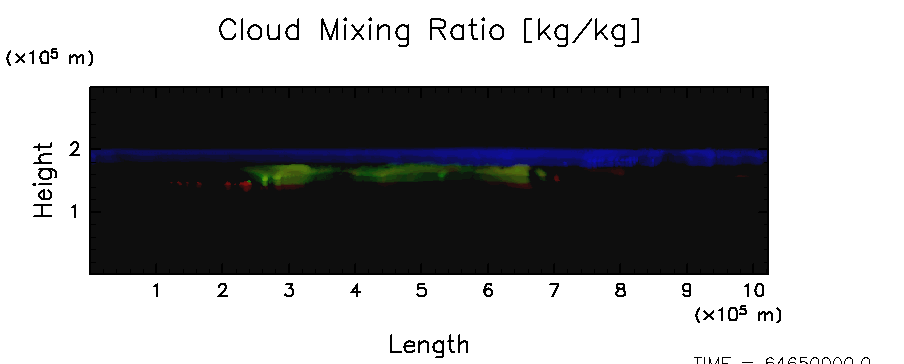

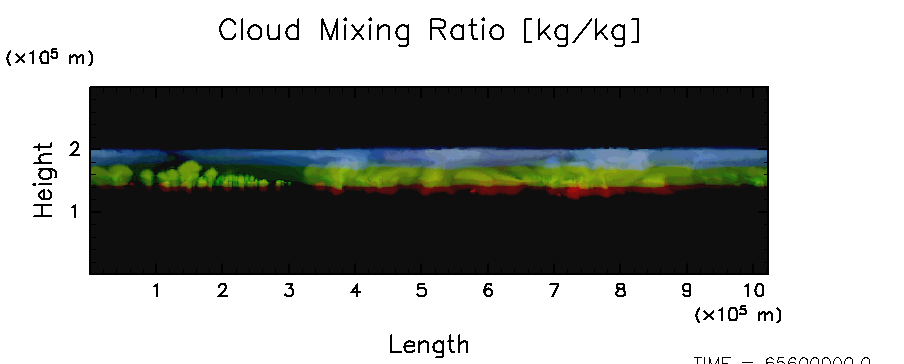

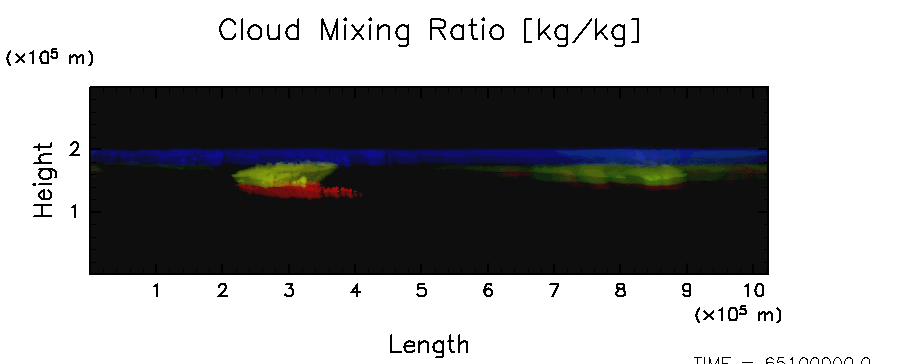

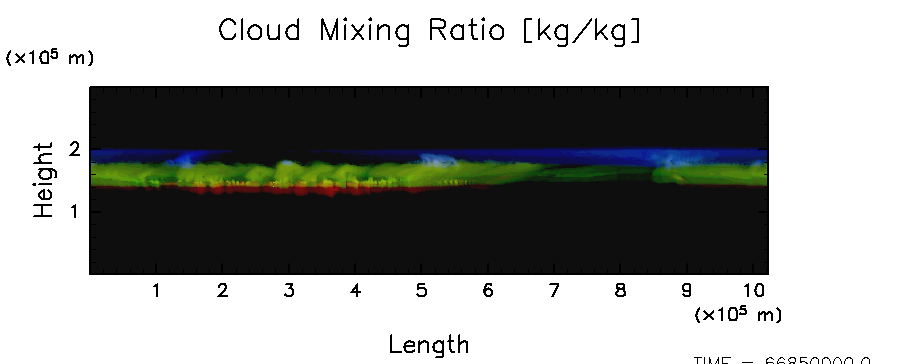

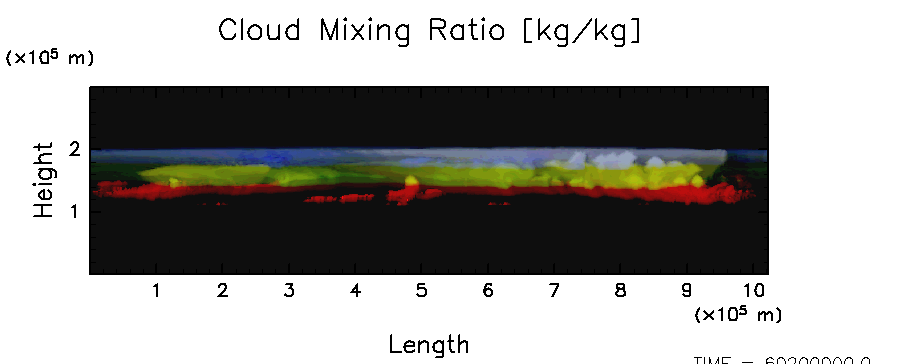

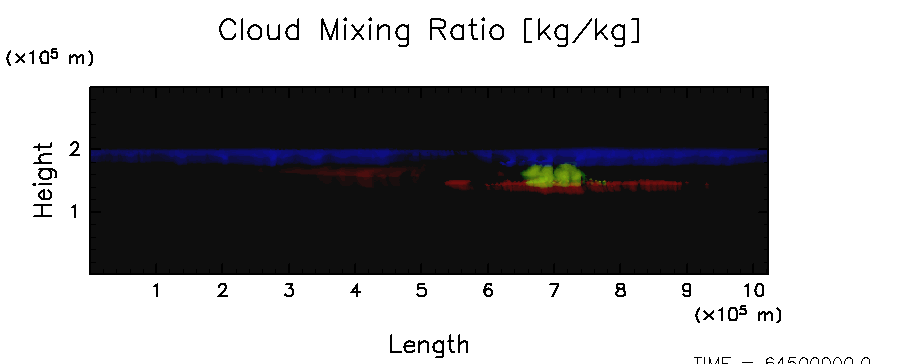

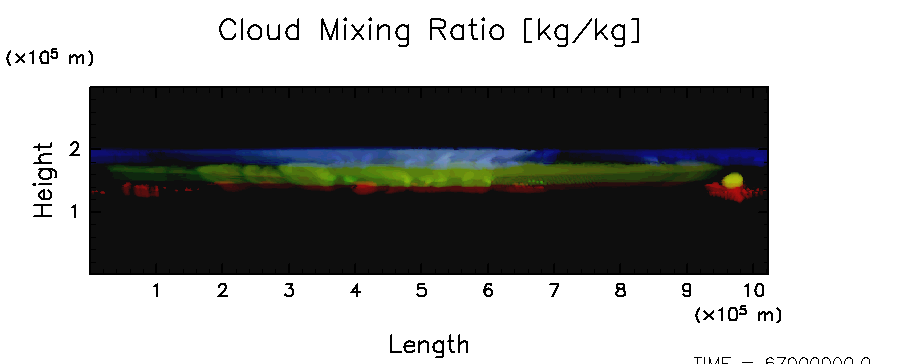

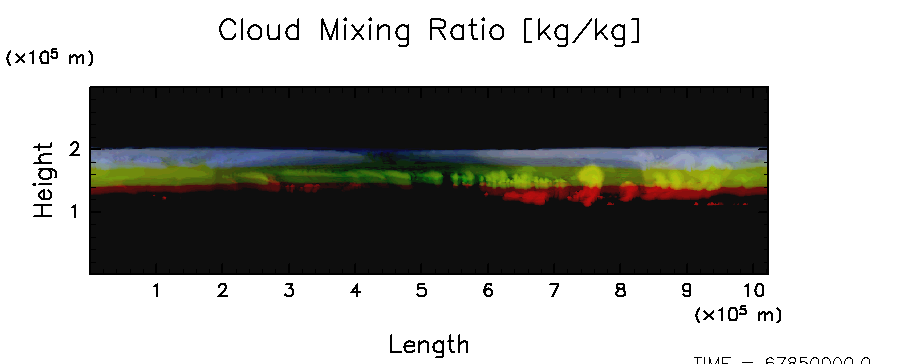

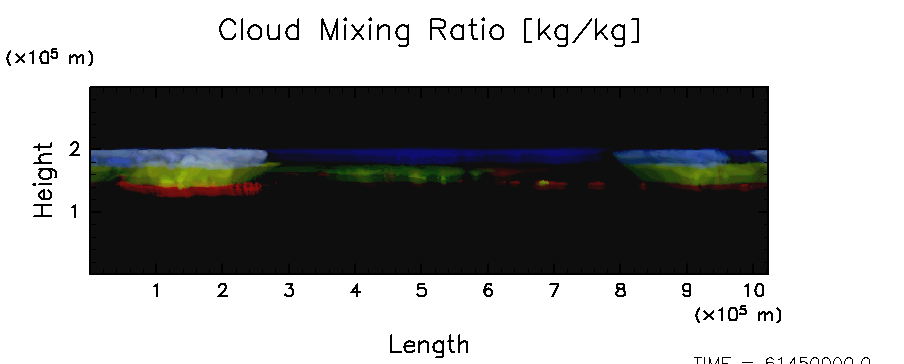

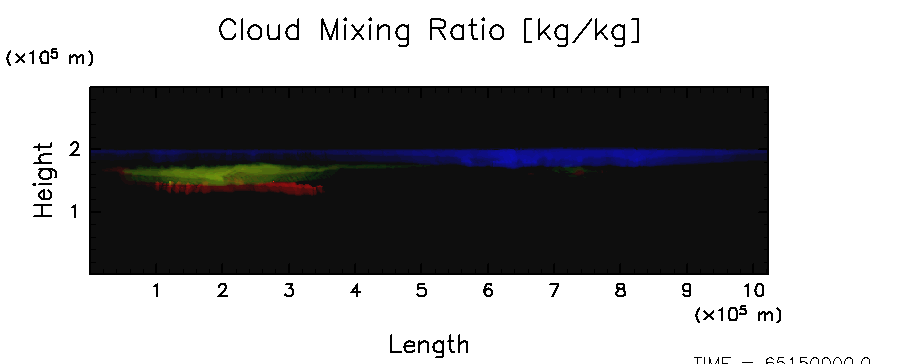

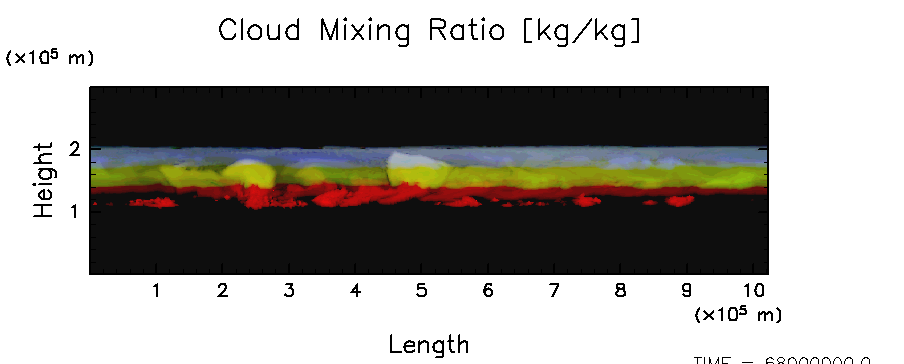

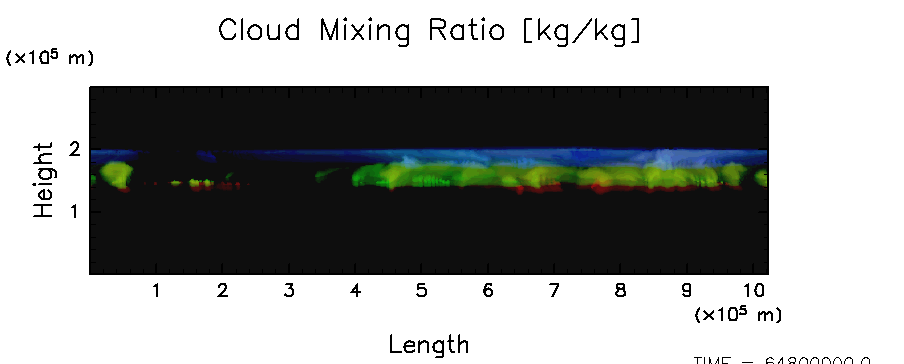

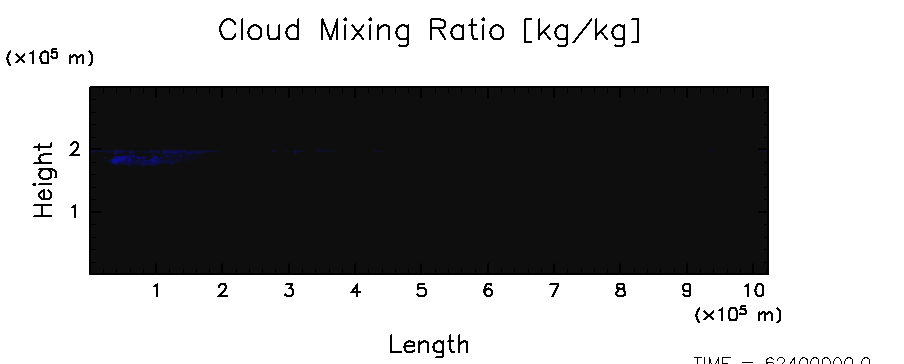

凝結物混合比(赤: H2O, 緑: NH4SH, 青: NH3)

NH4SH の相平衡からのずれ

H2O 相対湿度

NH3 相対湿度

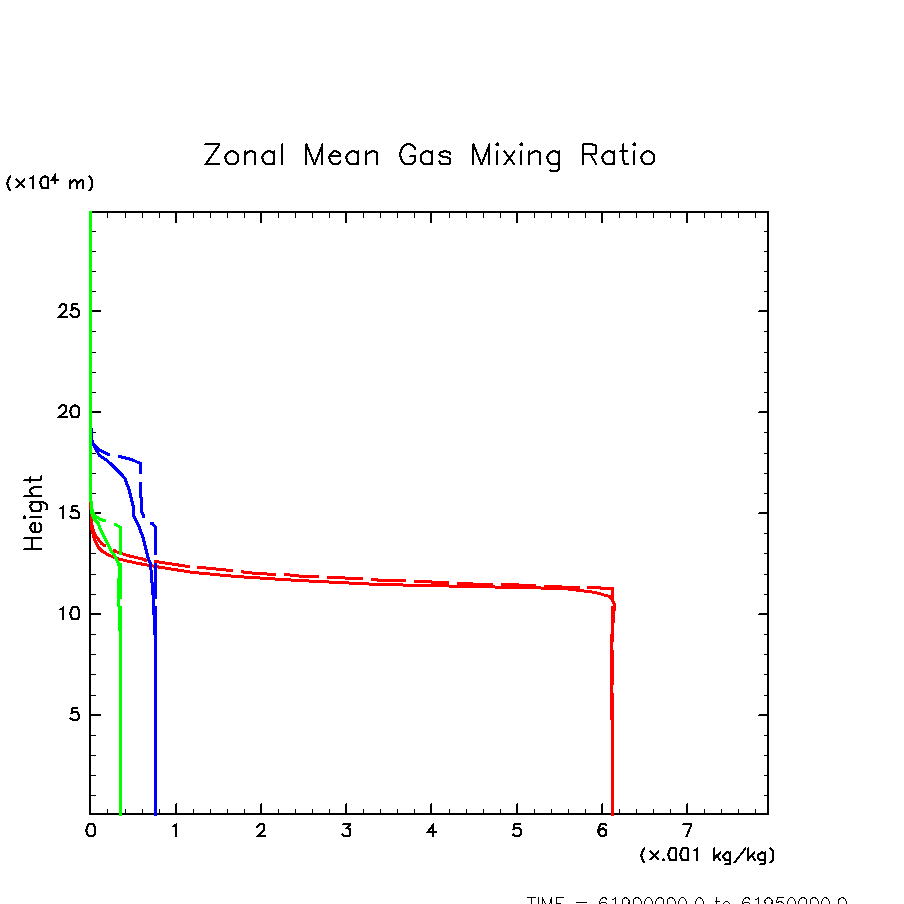

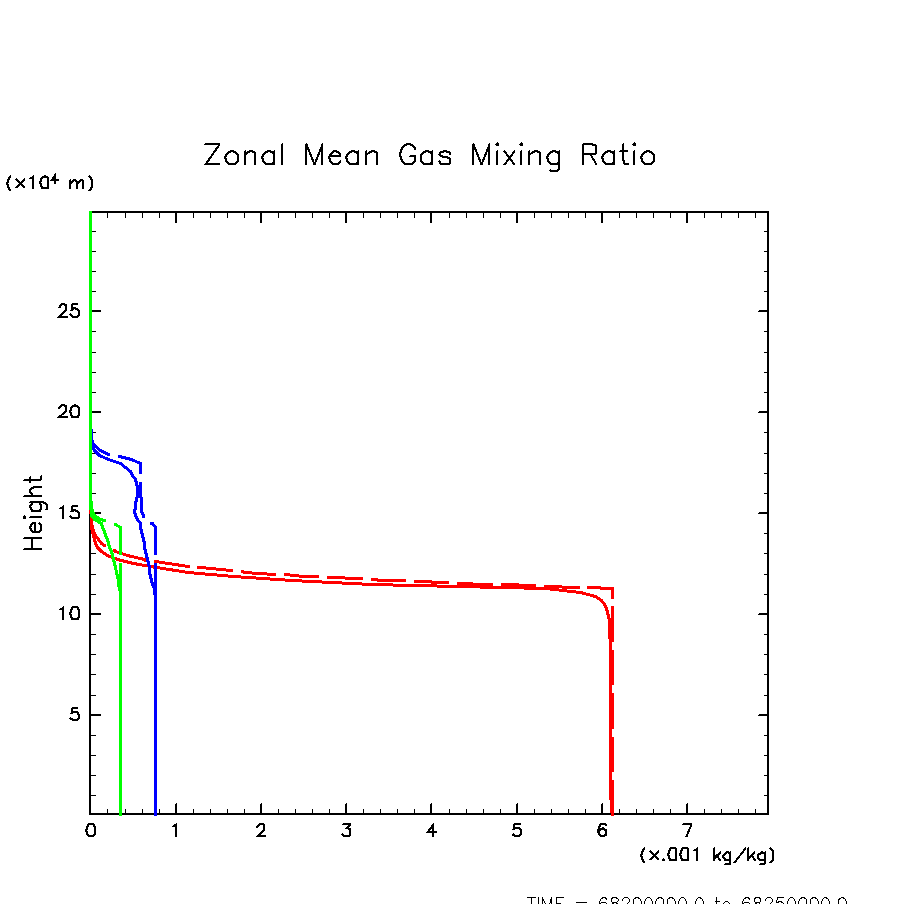

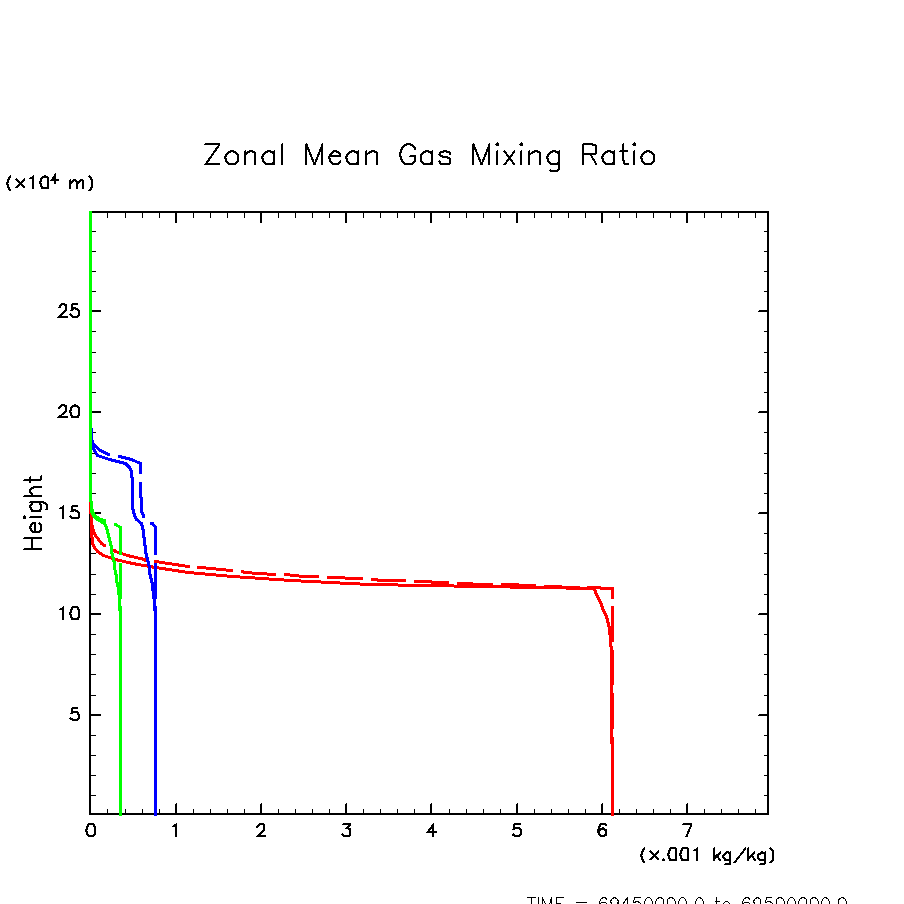

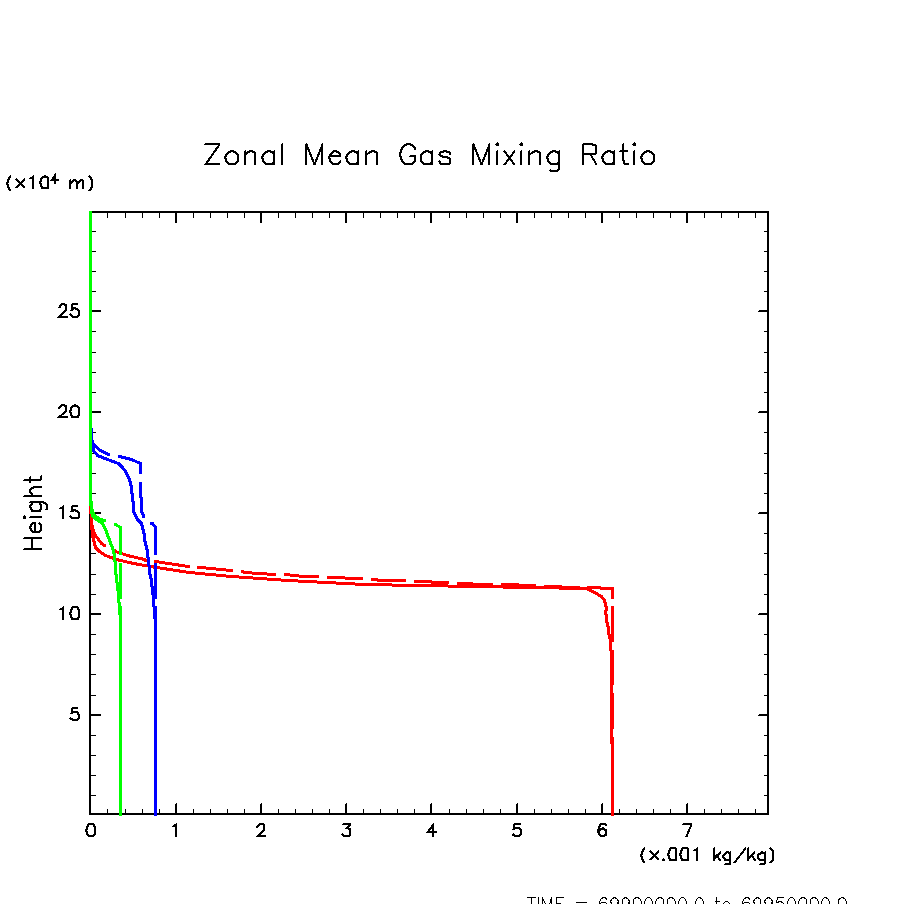

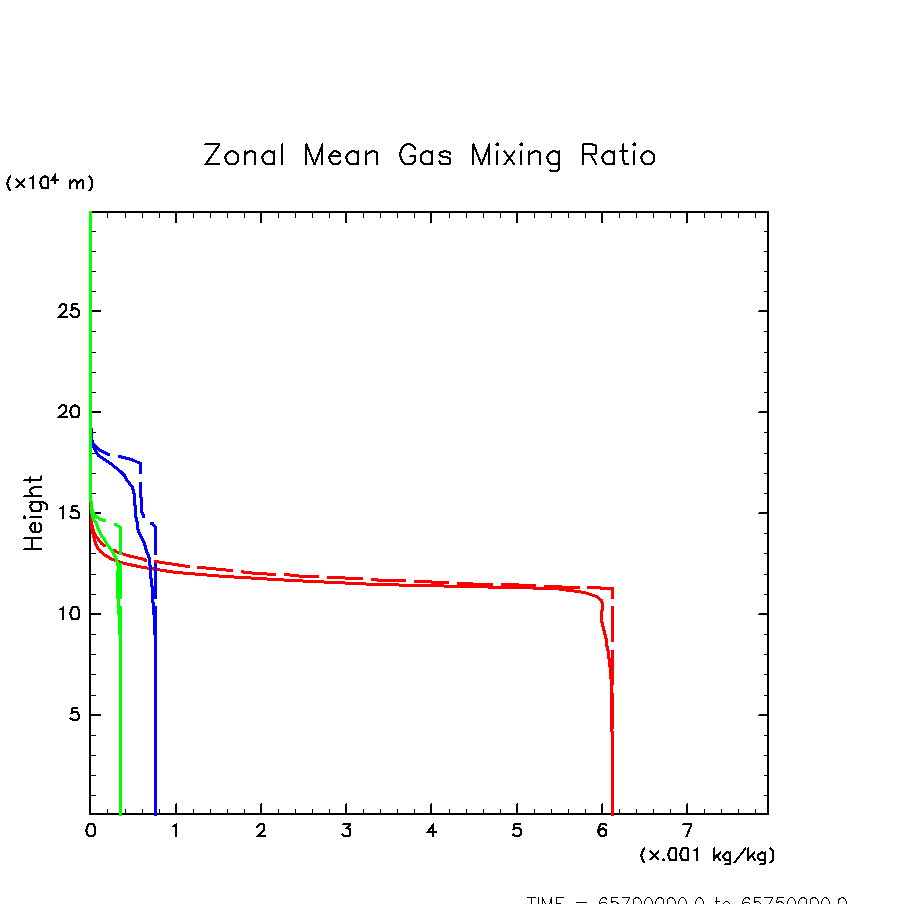

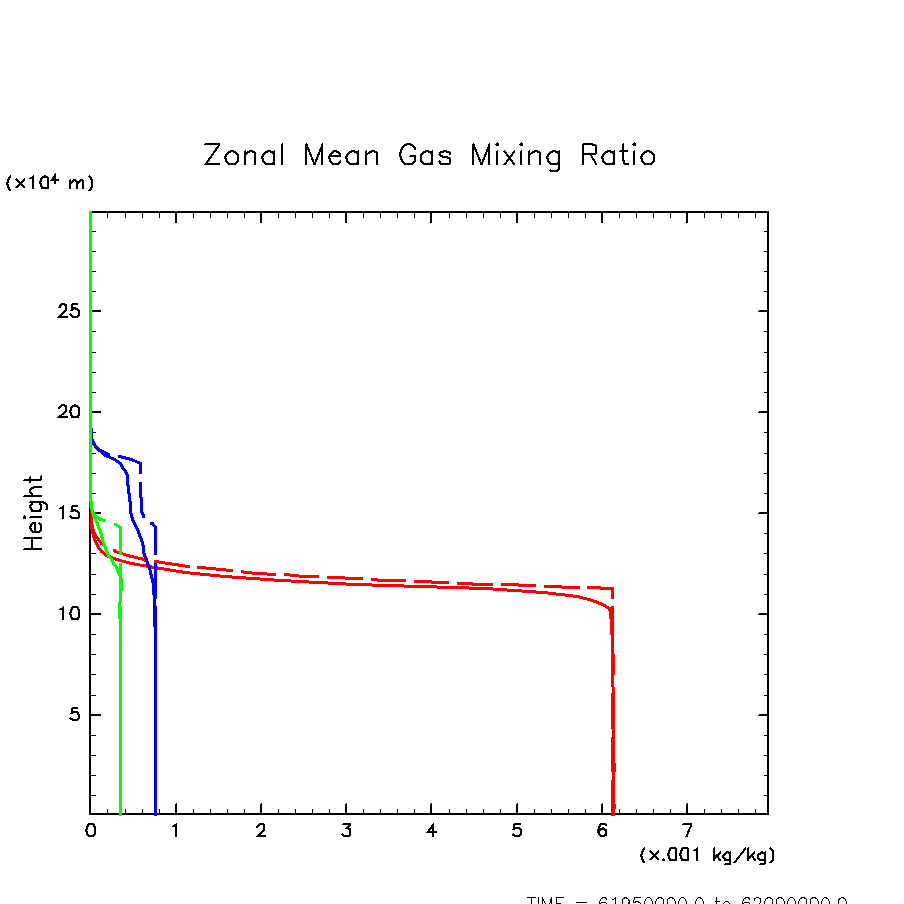

凝結成分気体混合比の水平・時間平均(赤: H2O, 緑: H2S, 青: NH3)

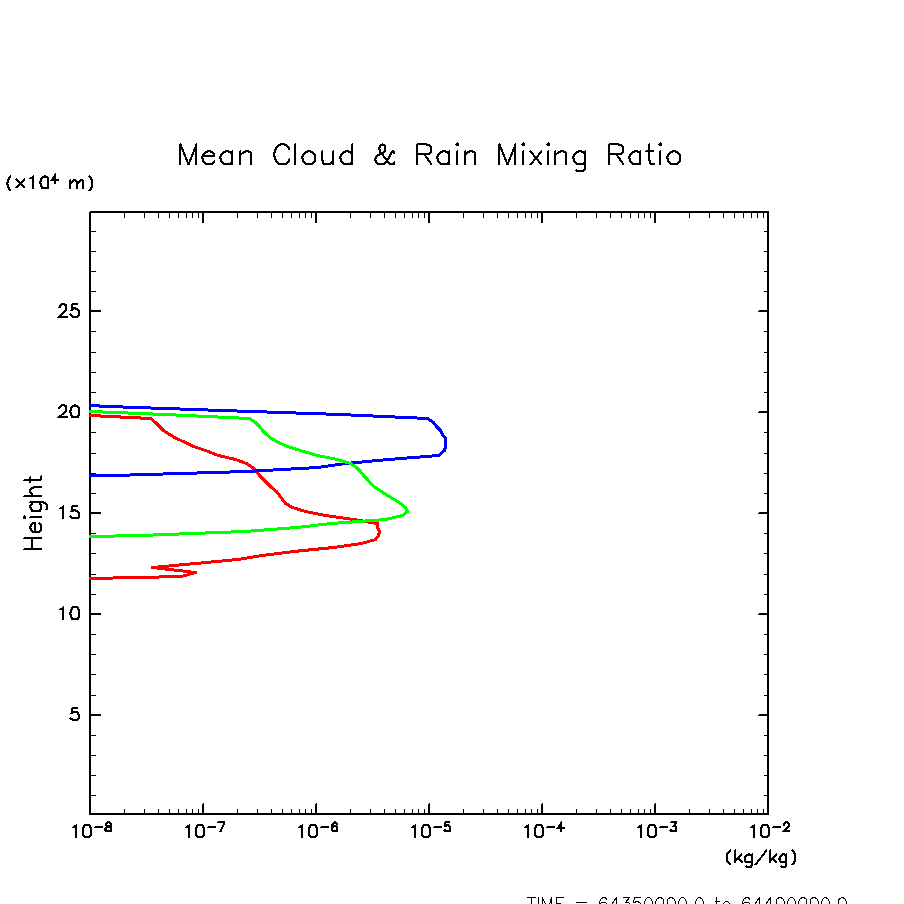

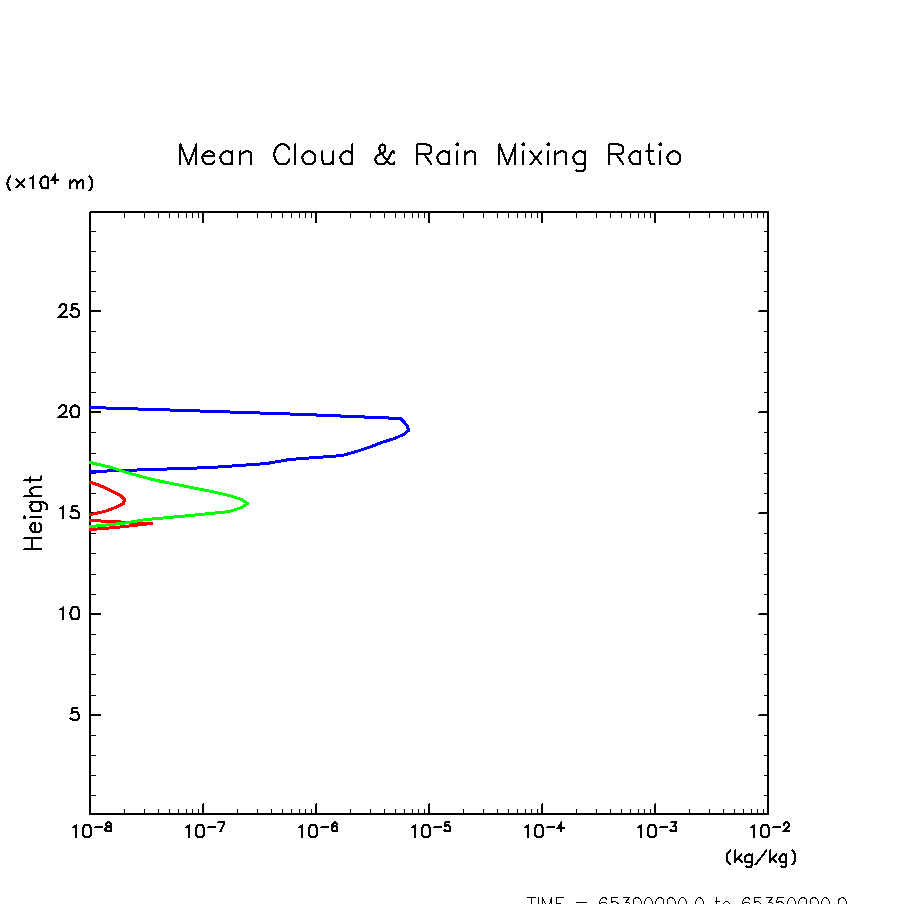

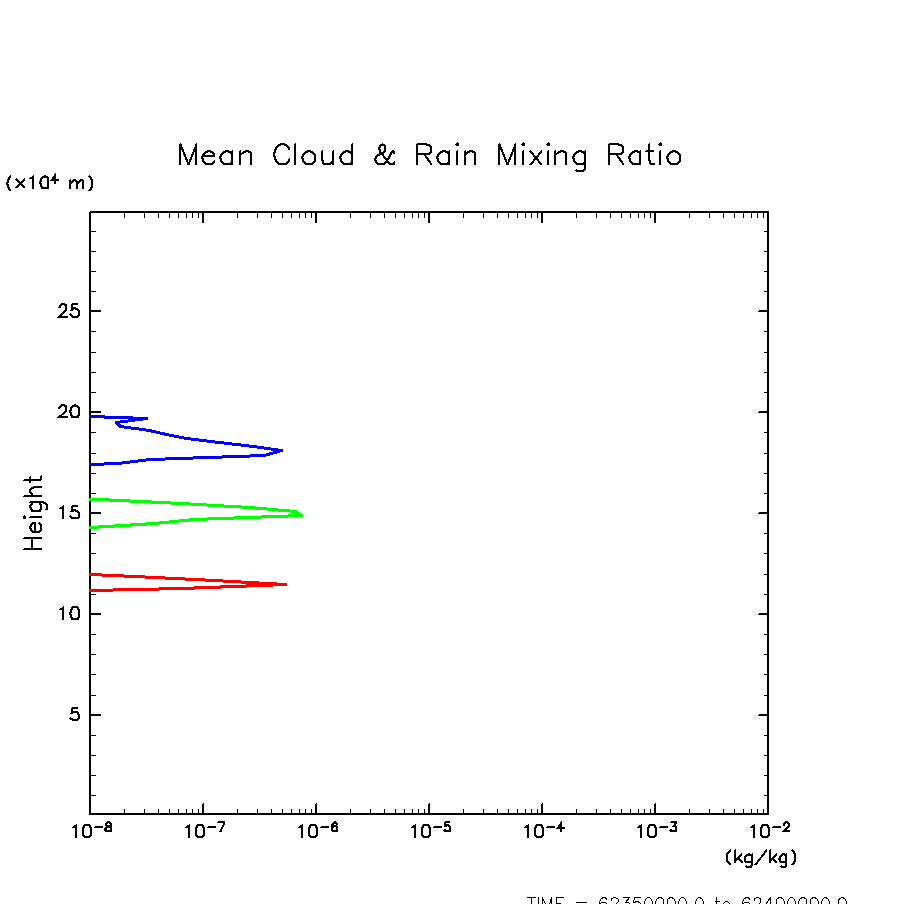

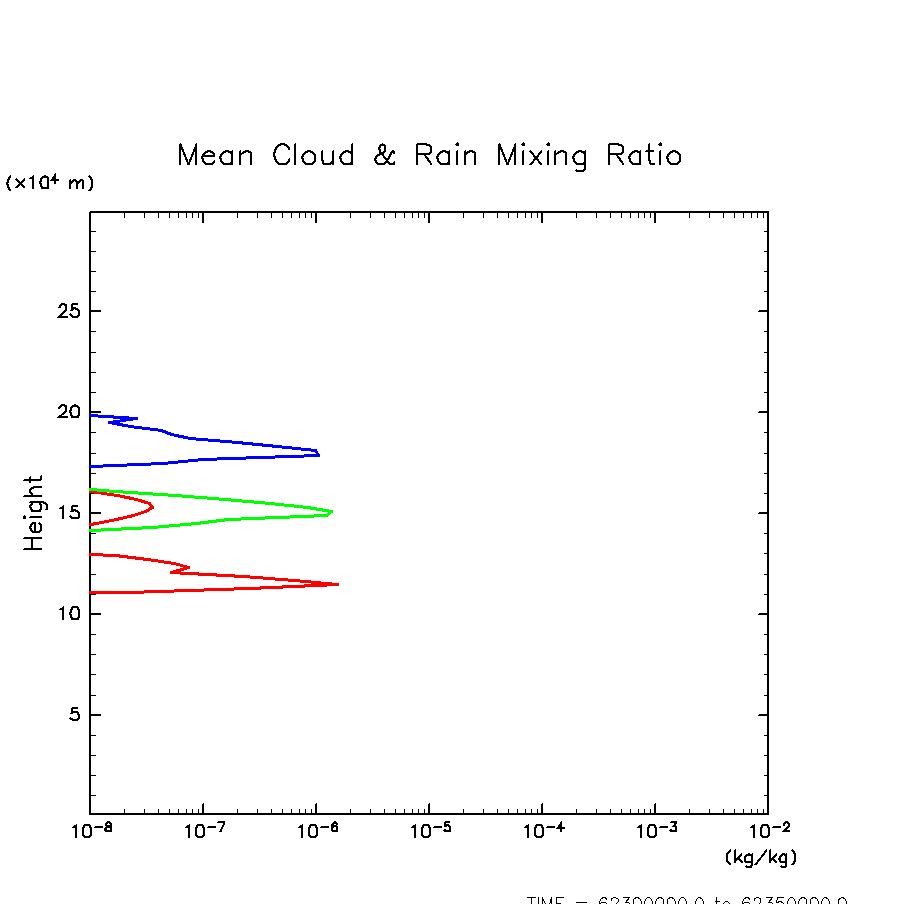

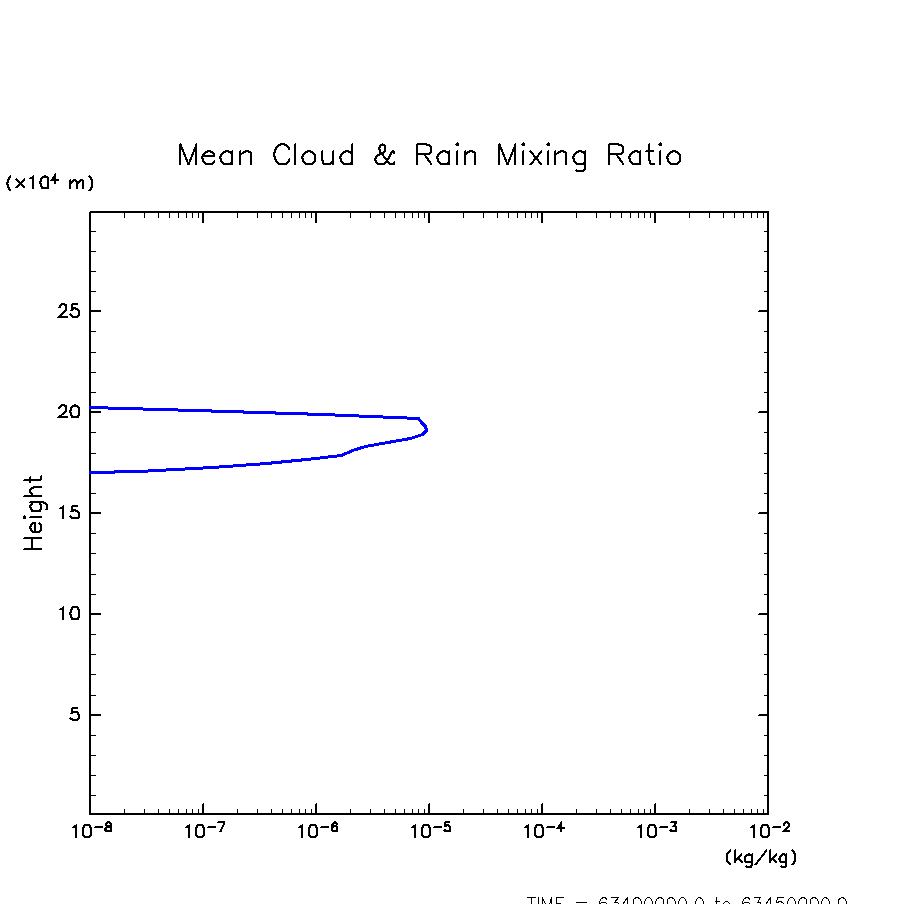

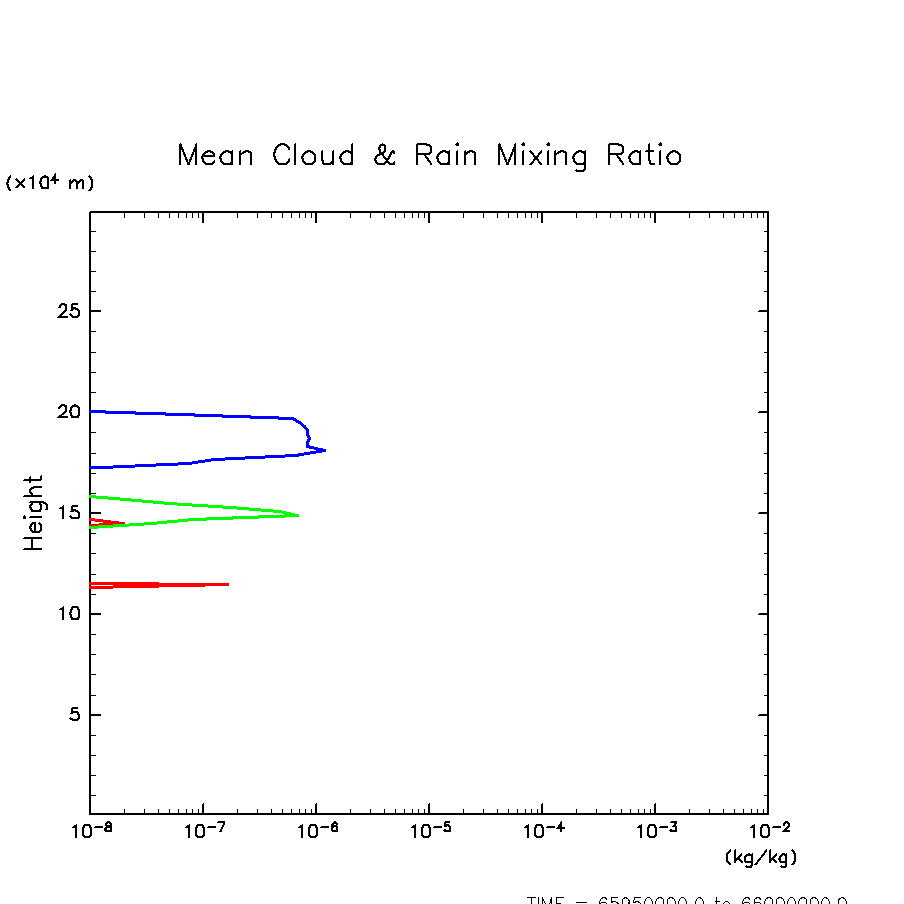

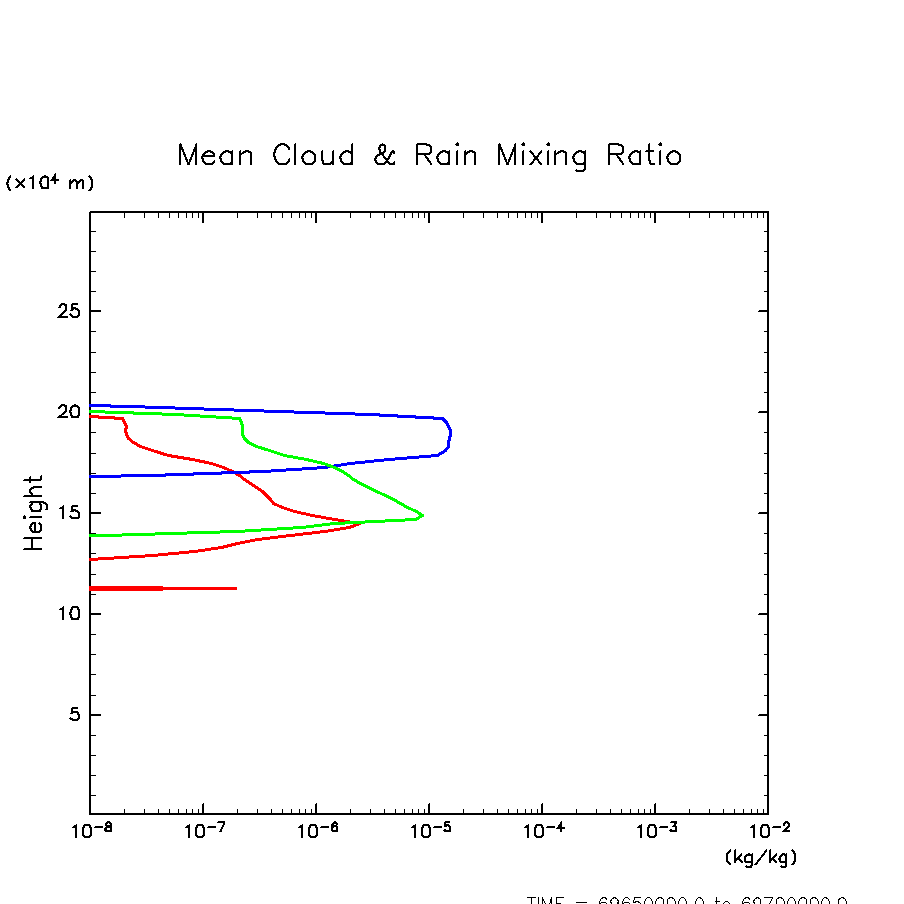

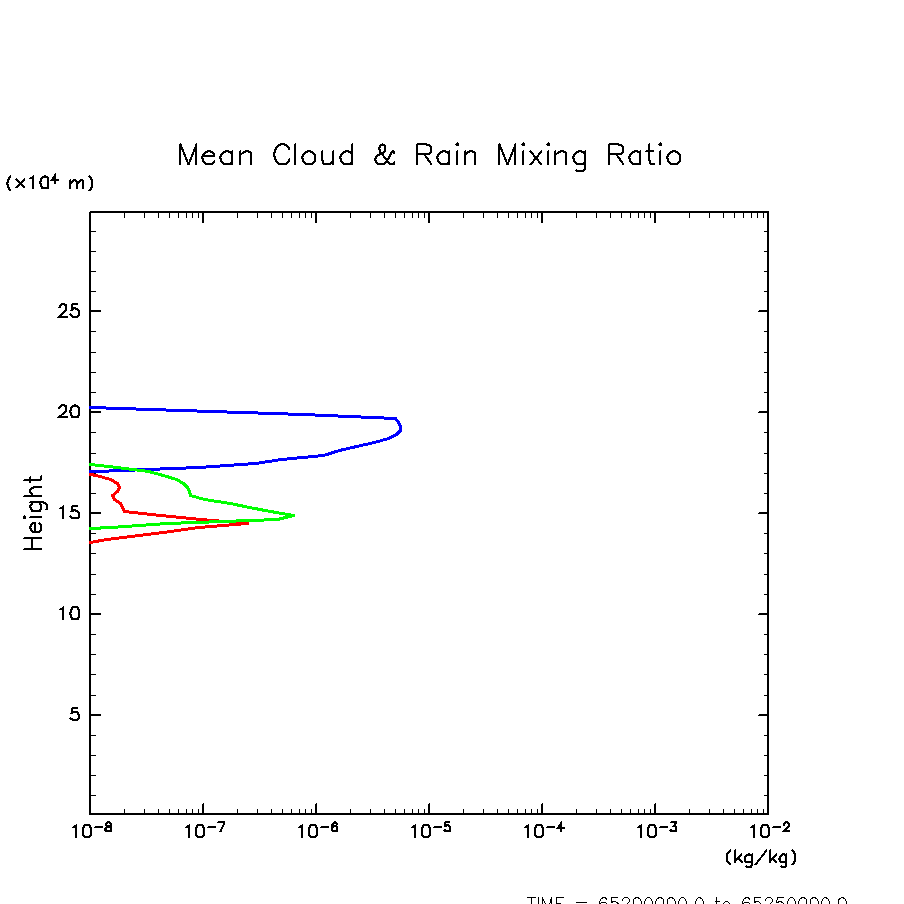

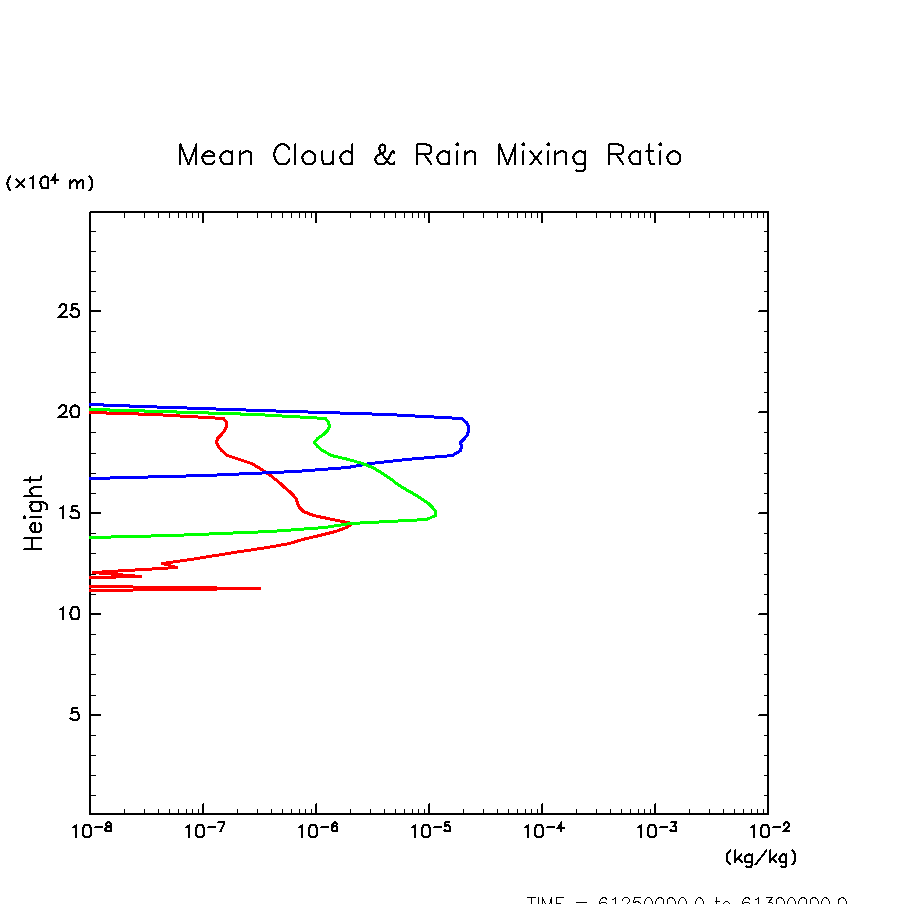

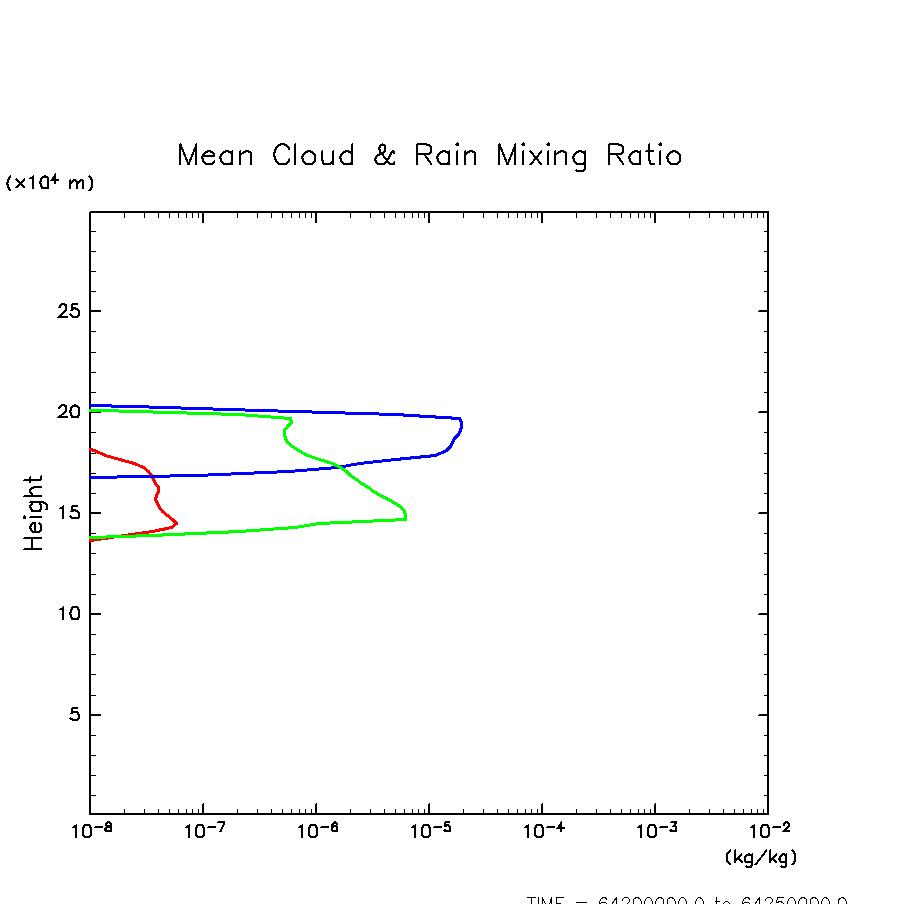

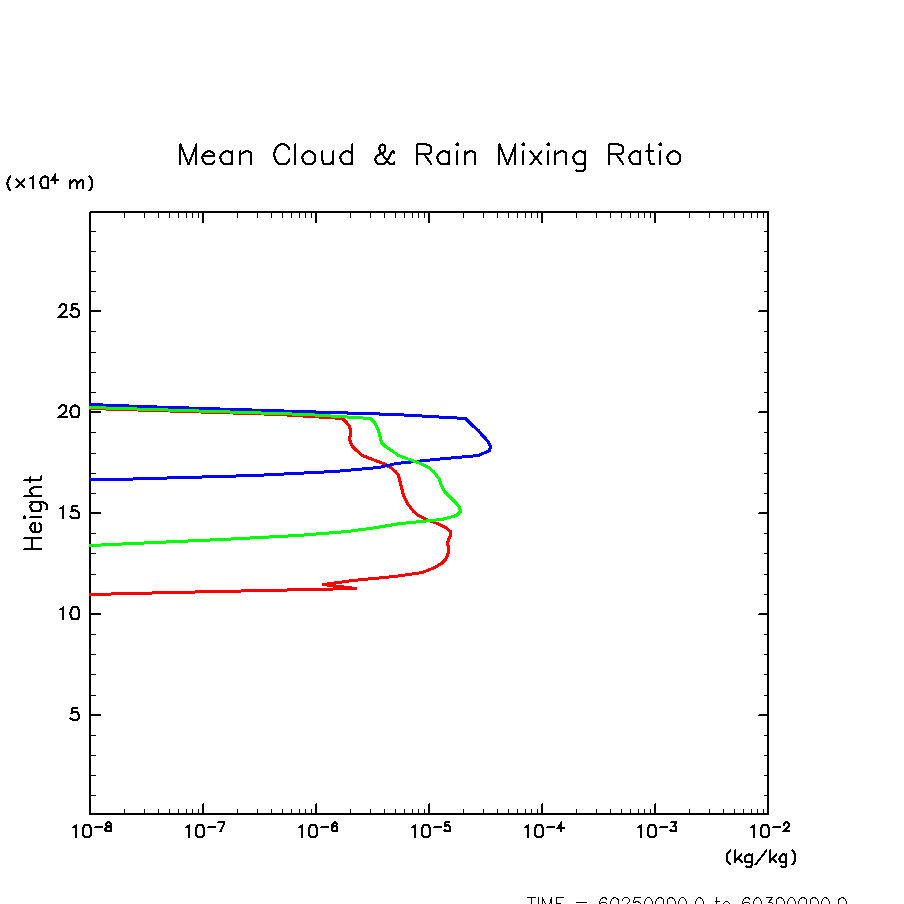

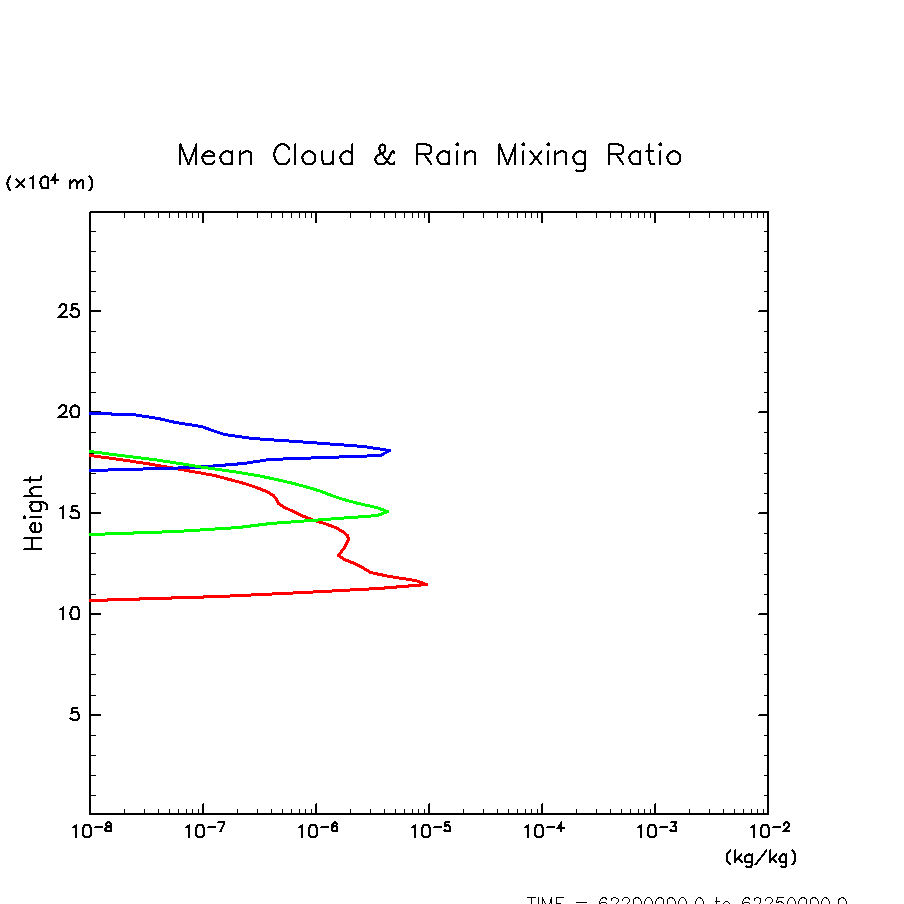

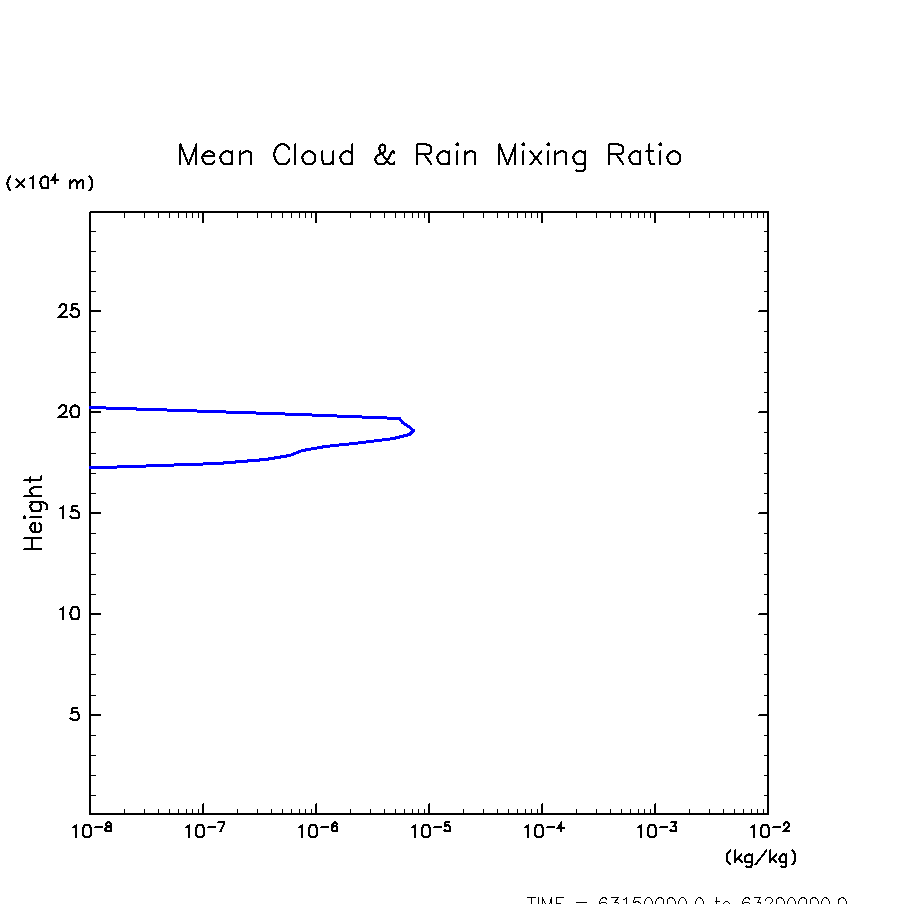

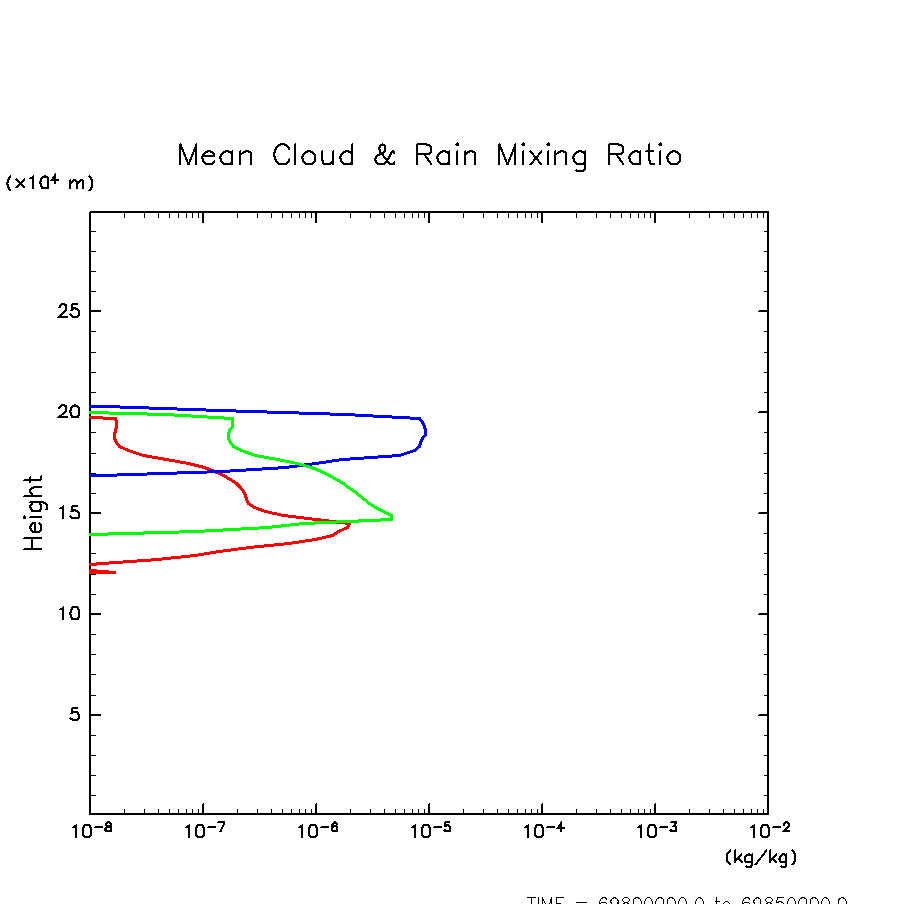

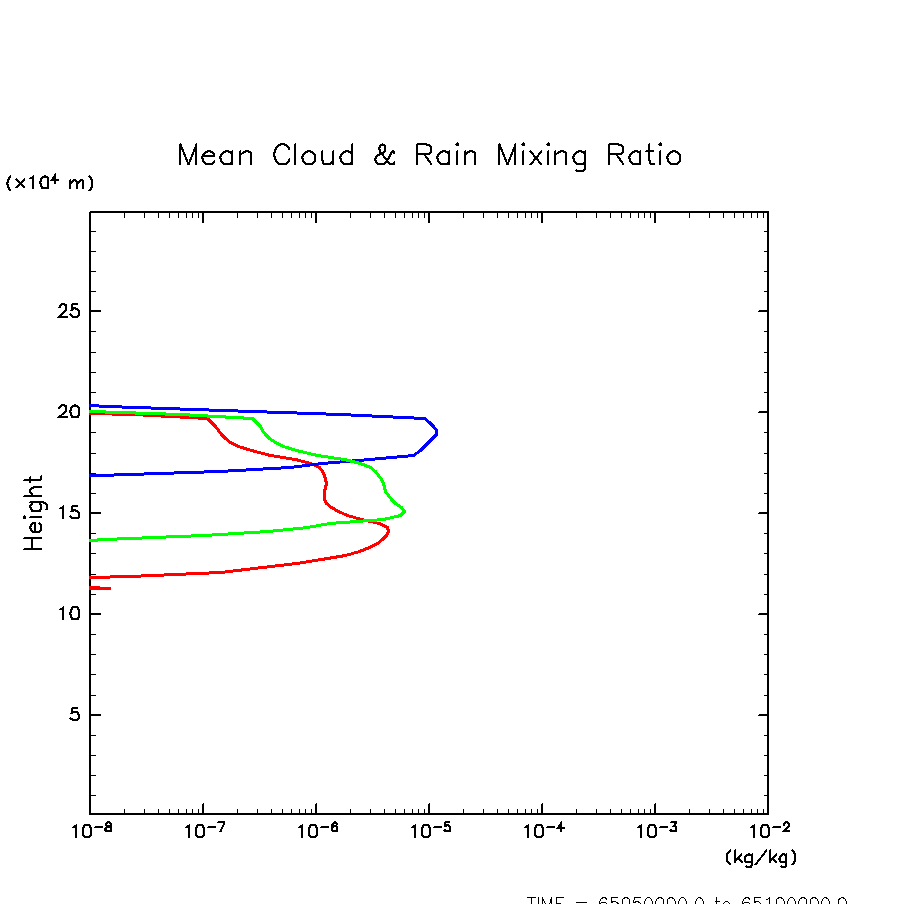

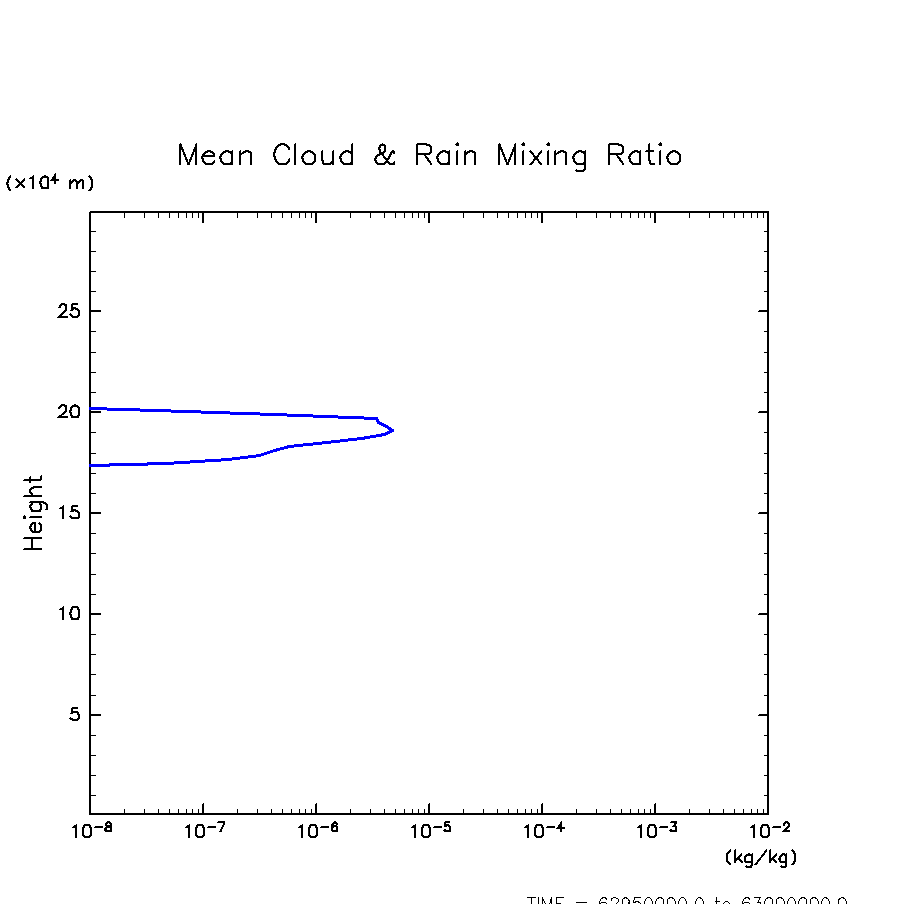

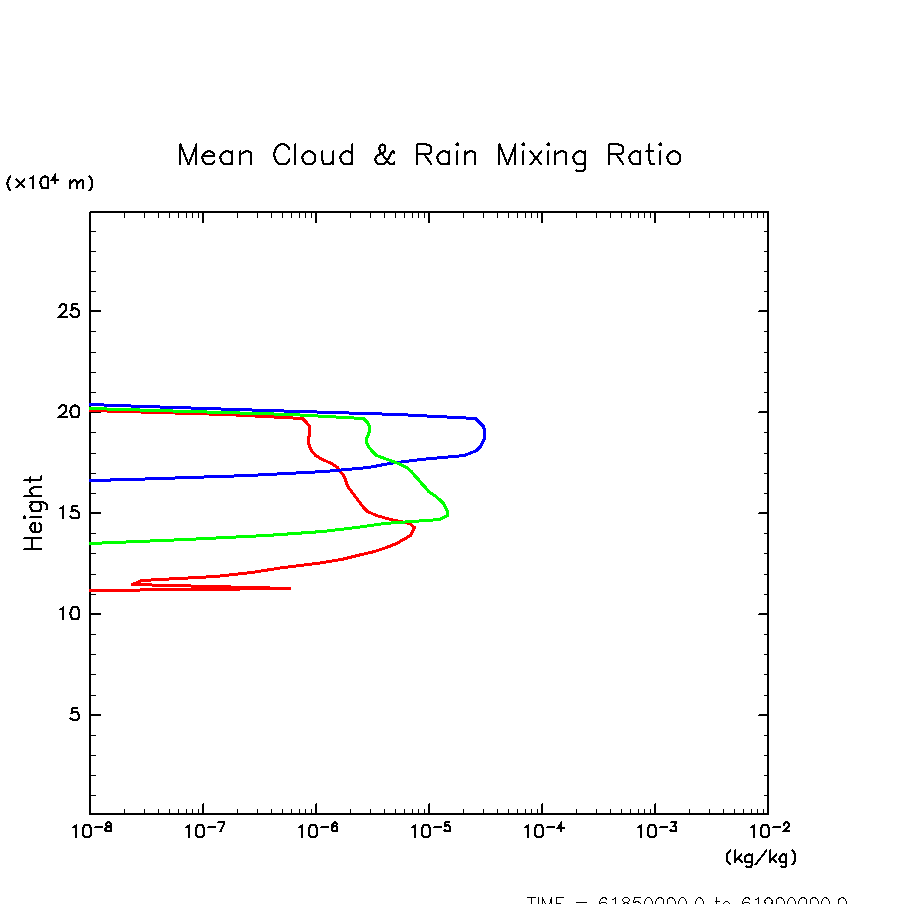

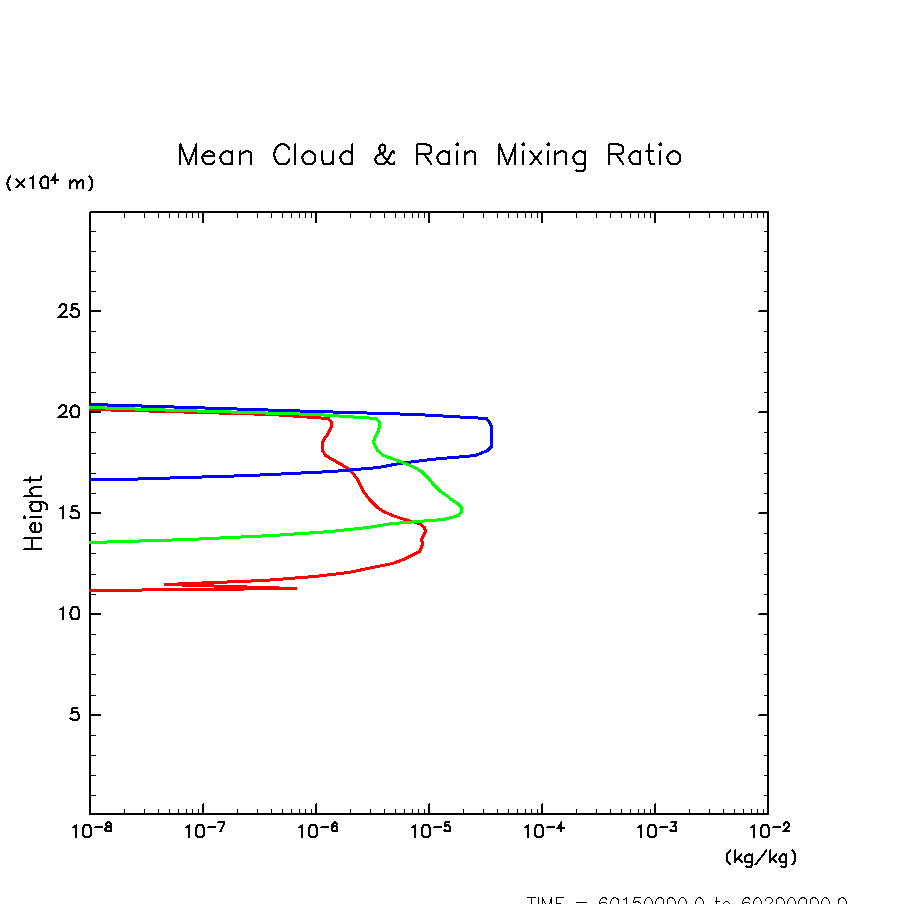

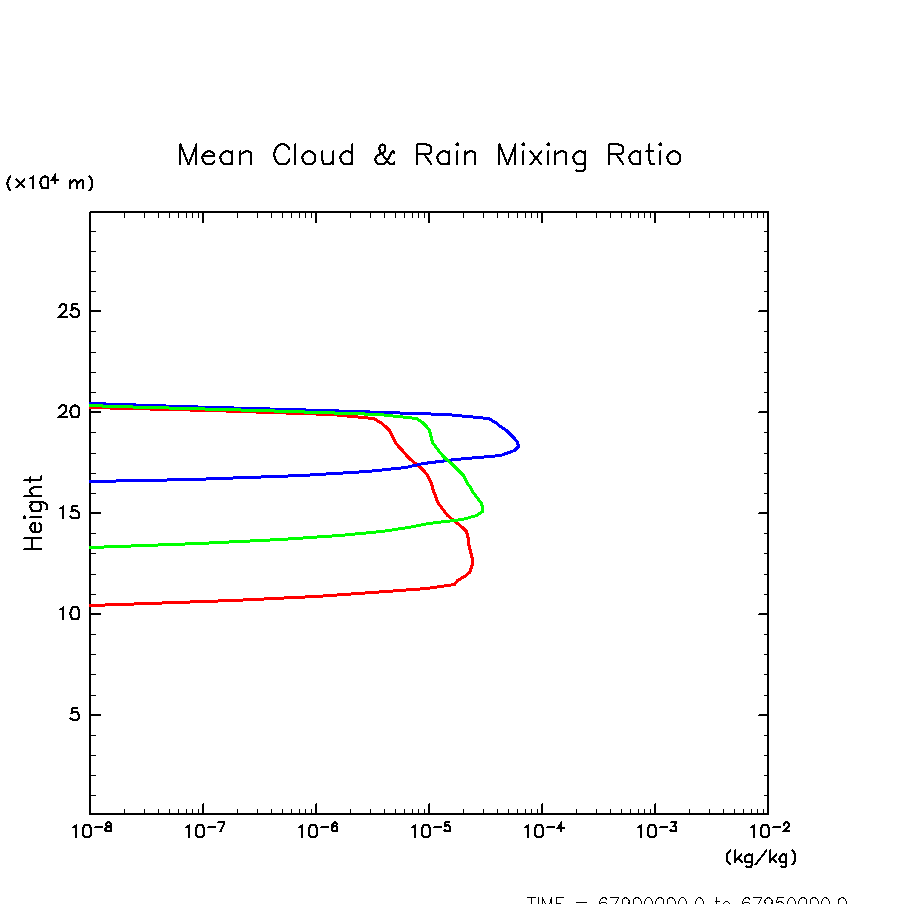

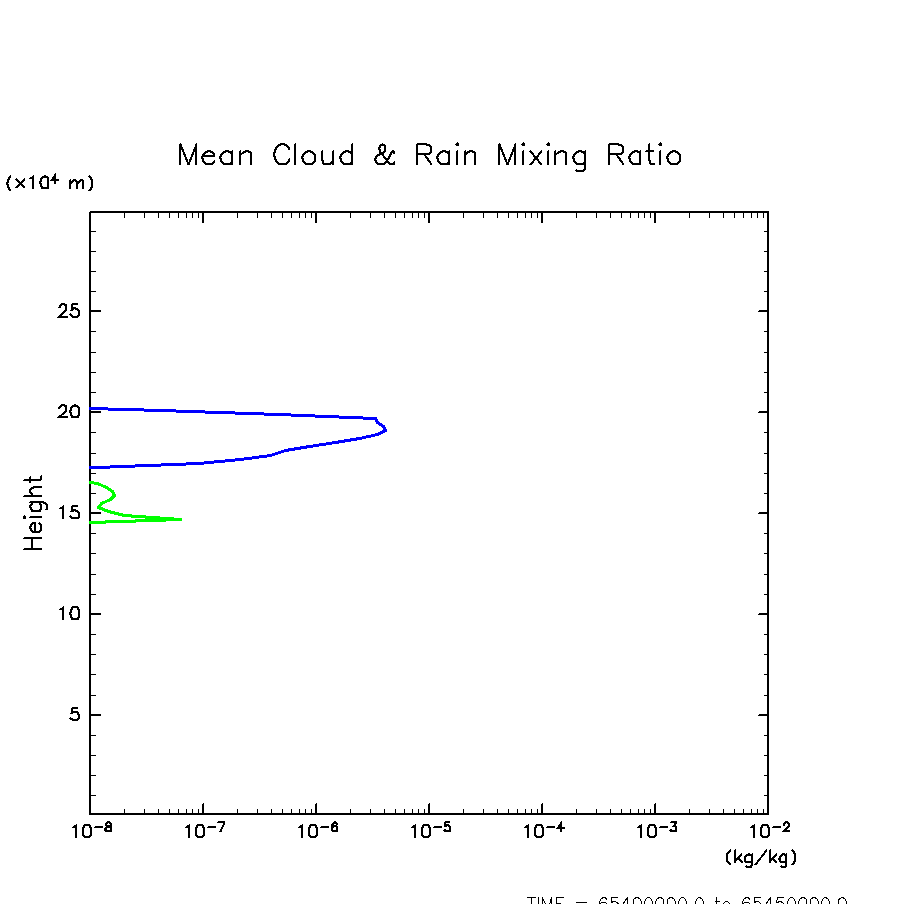

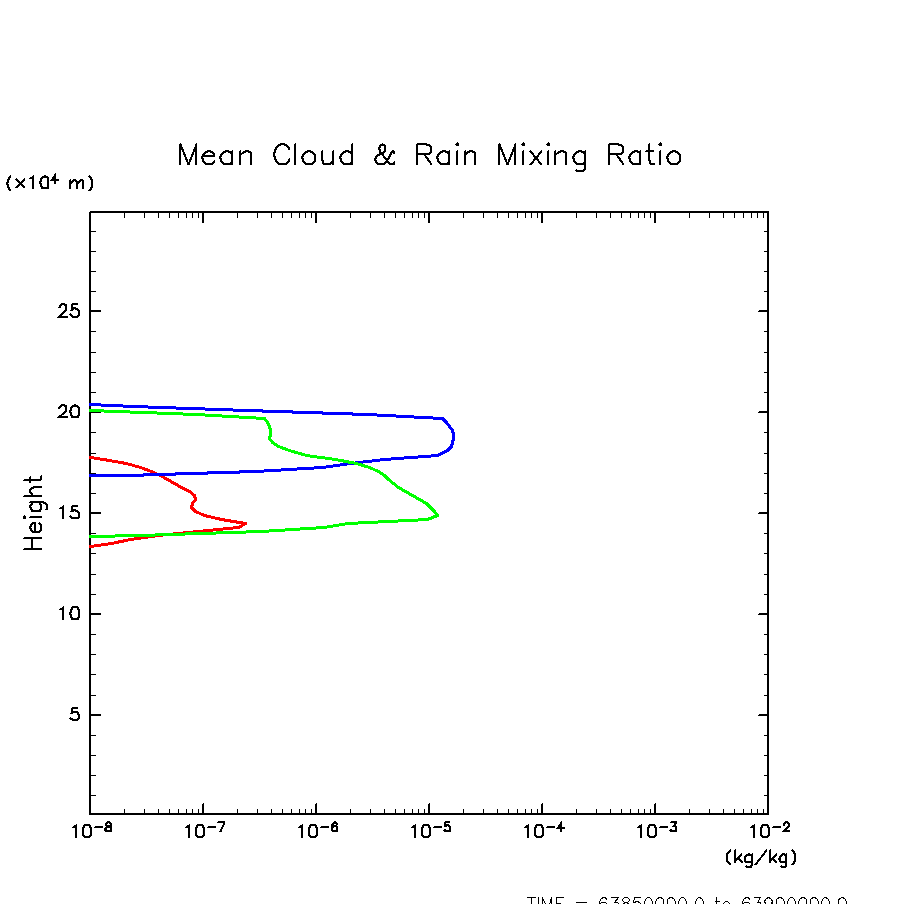

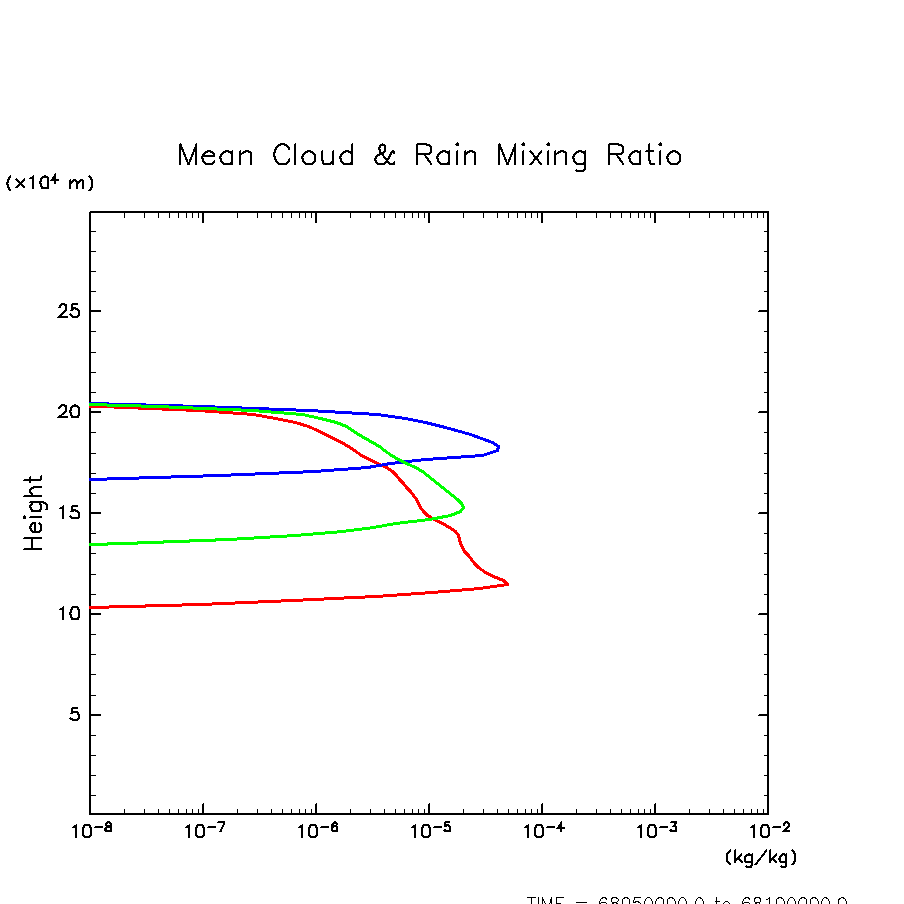

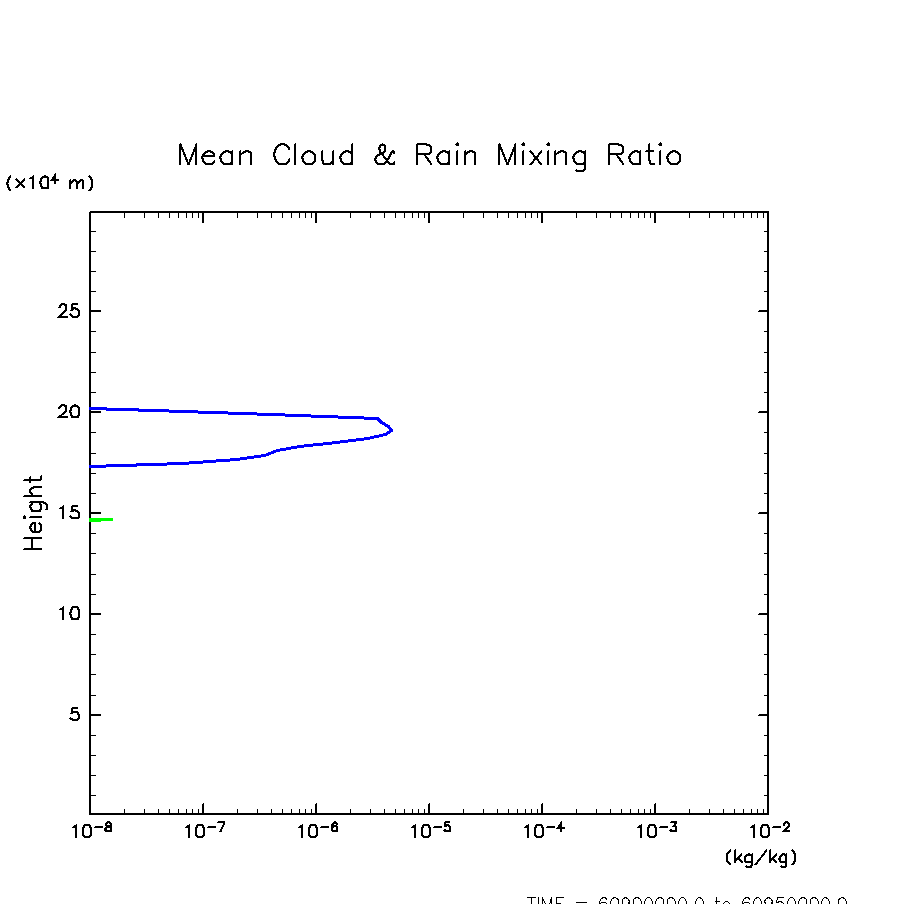

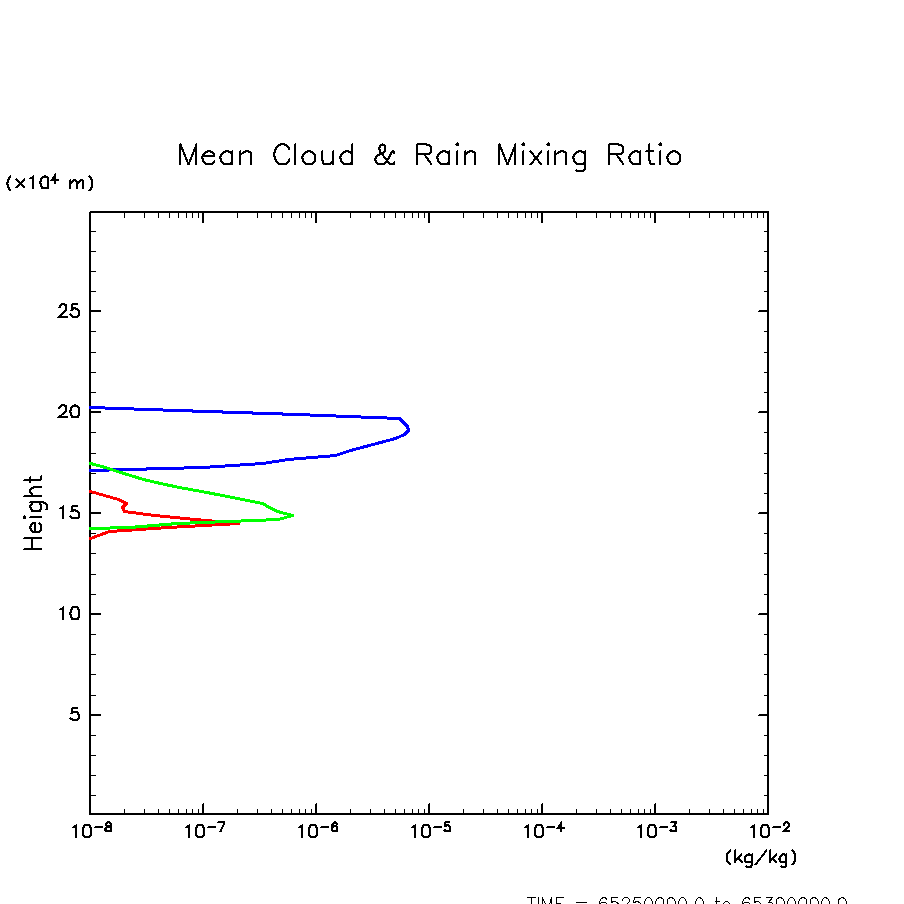

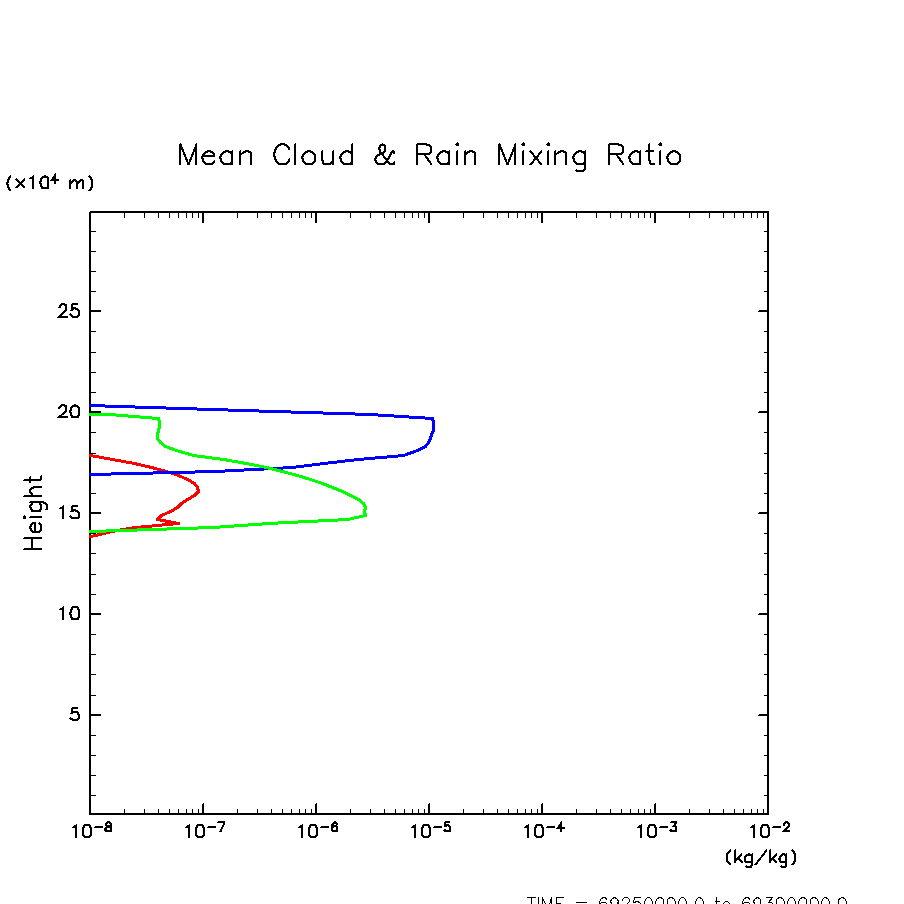

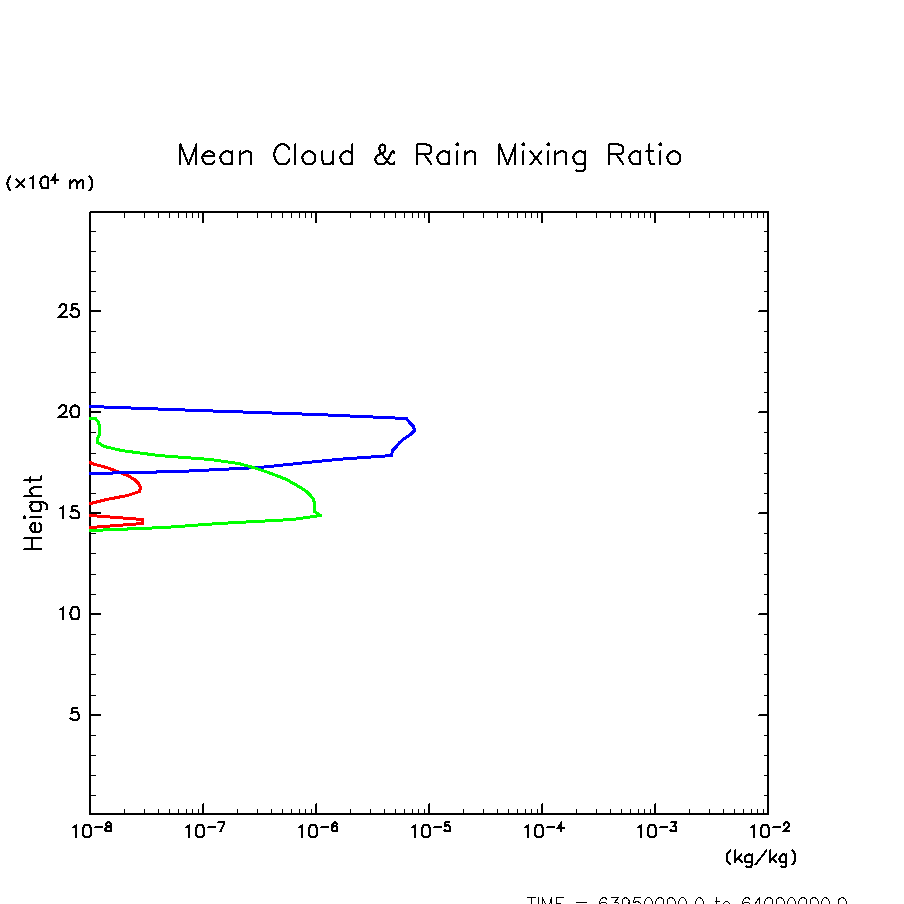

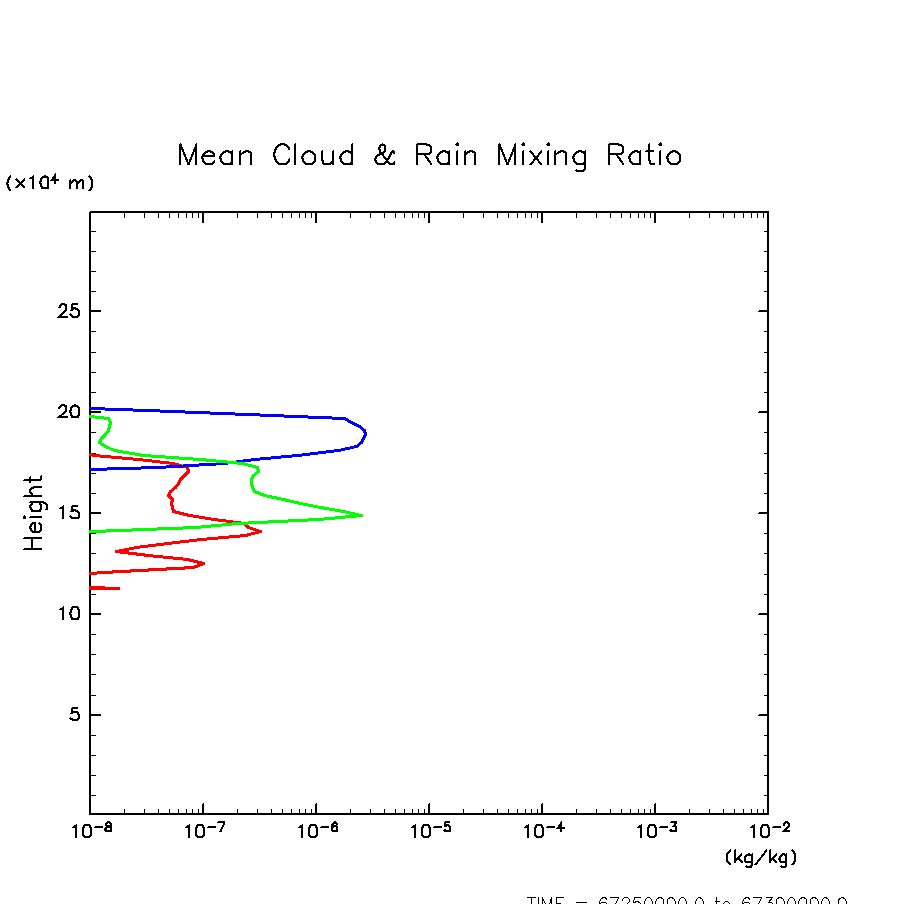

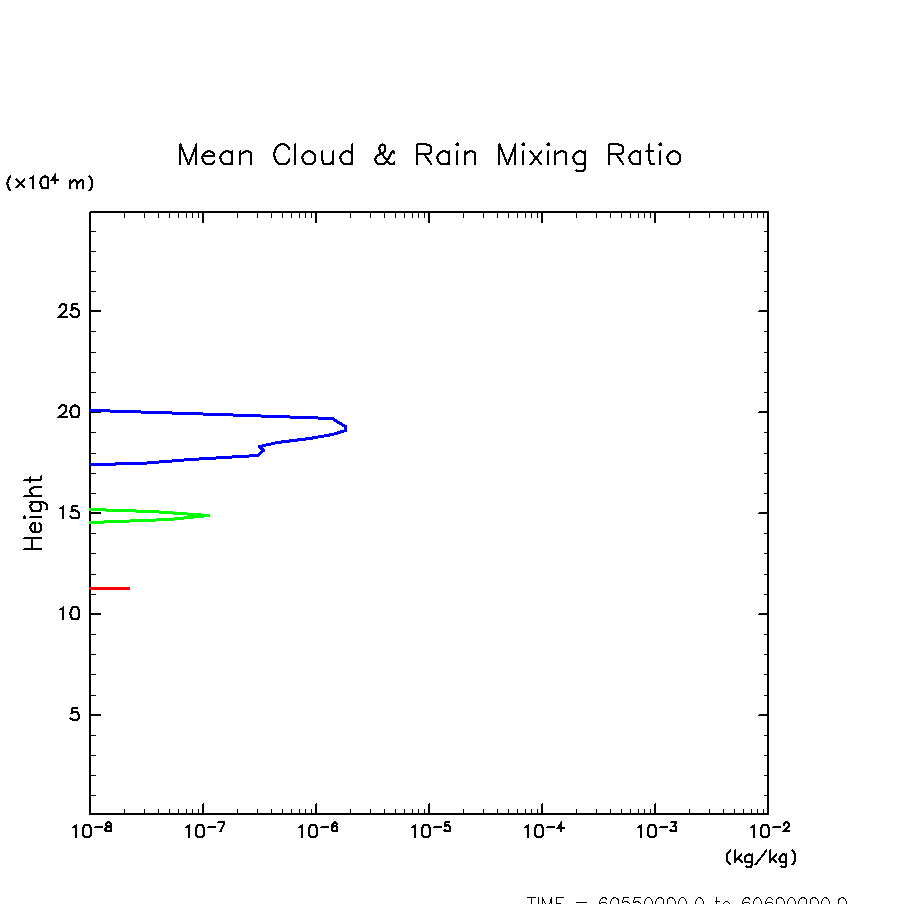

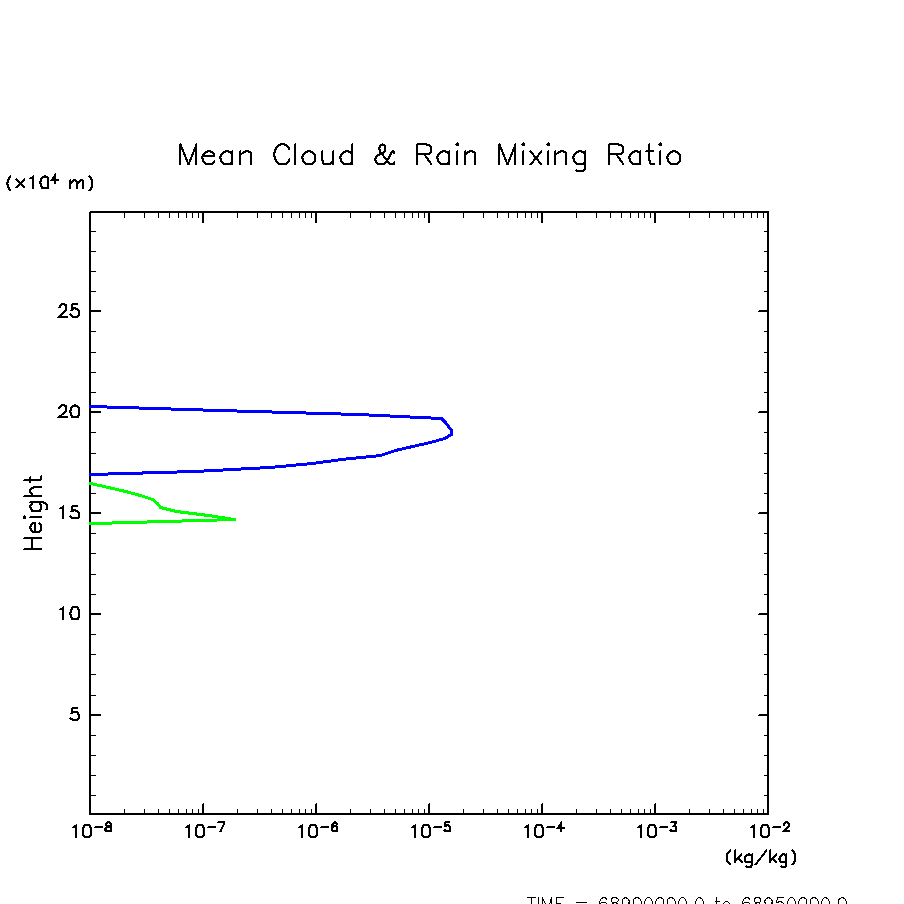

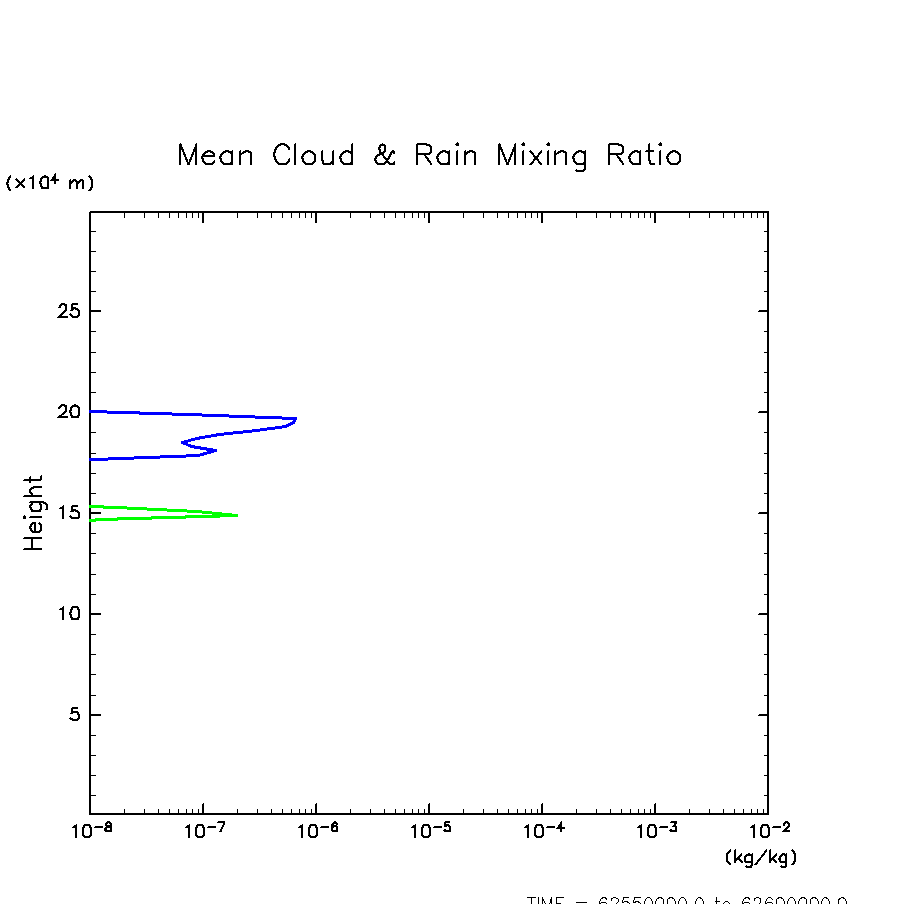

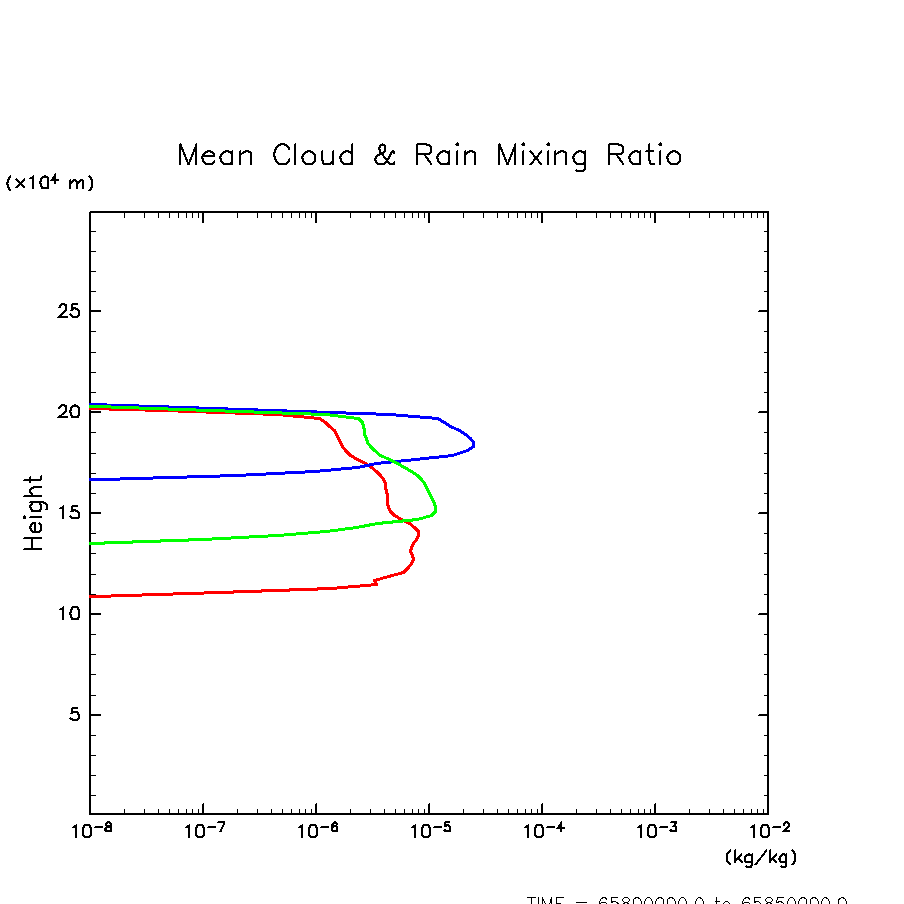

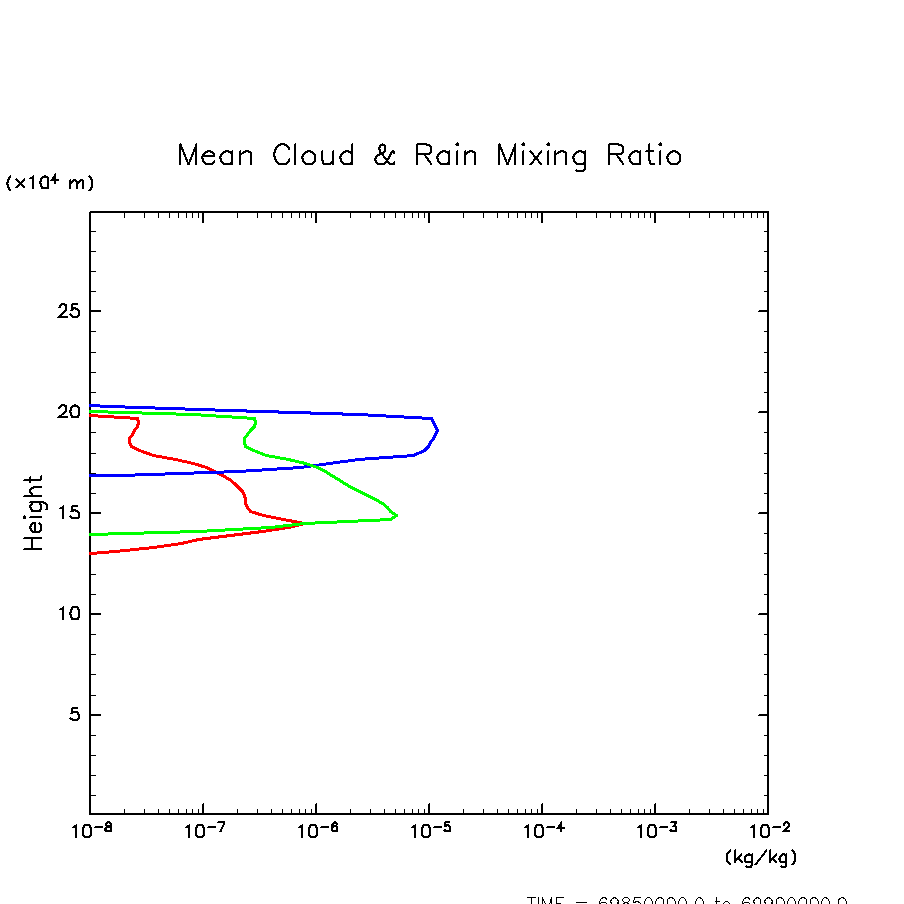

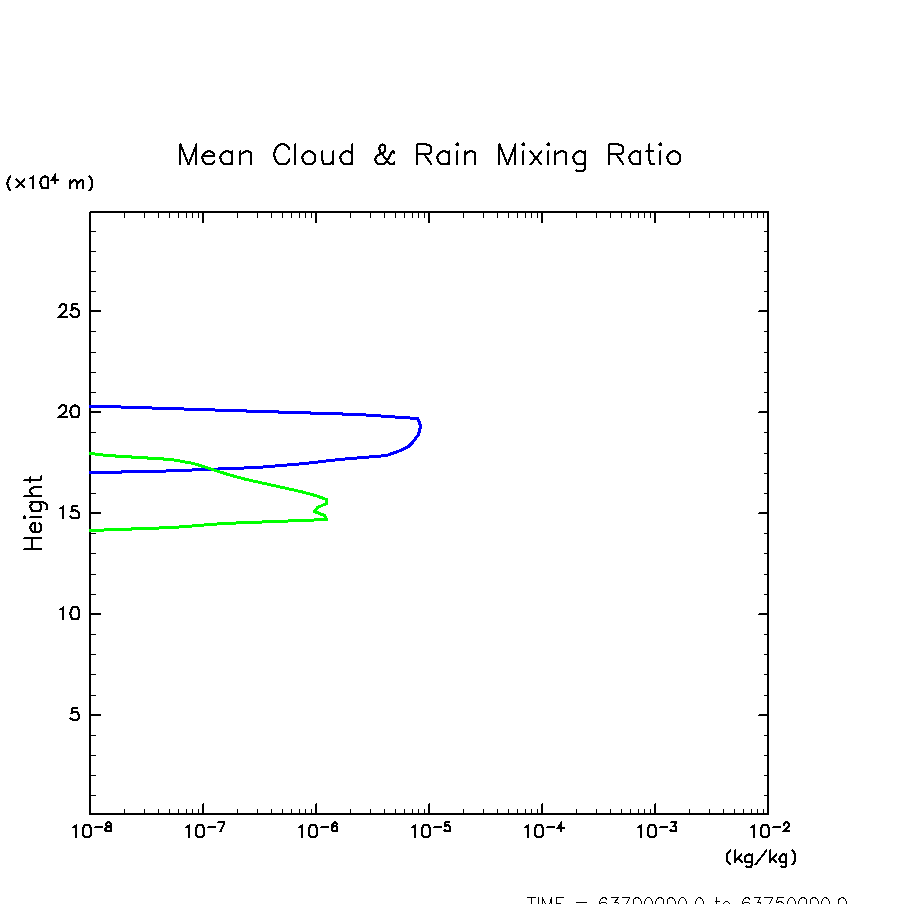

凝結物混合比の水平・時間平均(赤: H2O, 緑: NH4SH, 青: NH3)

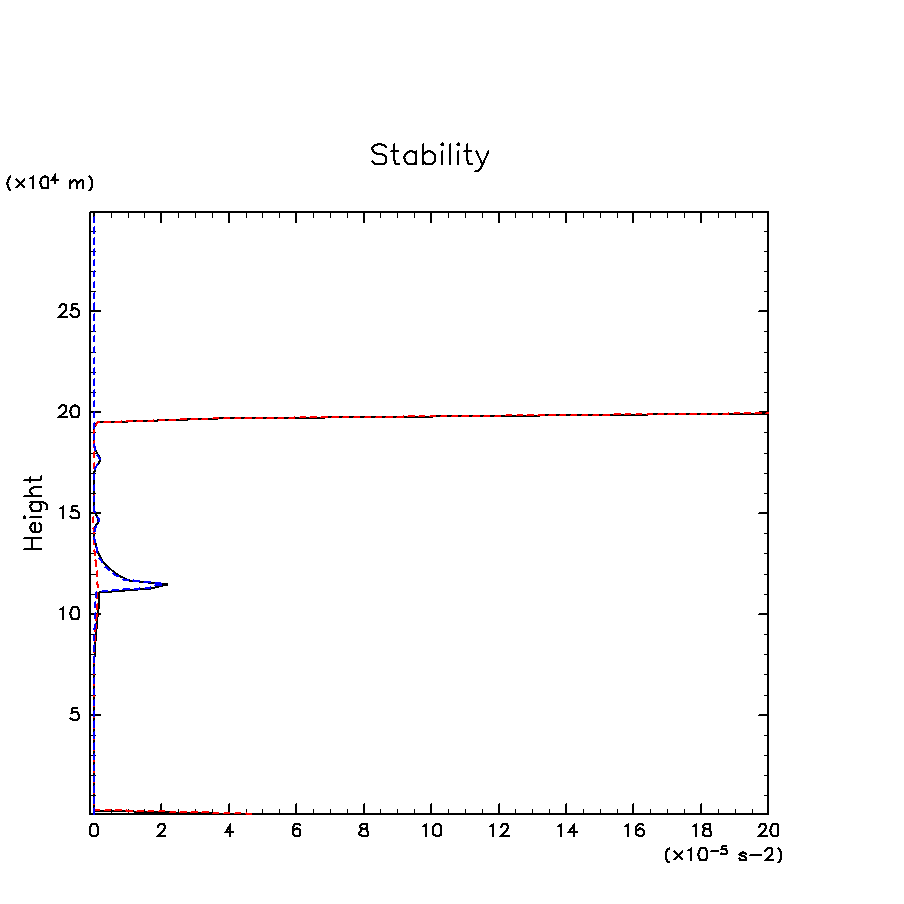

安定度

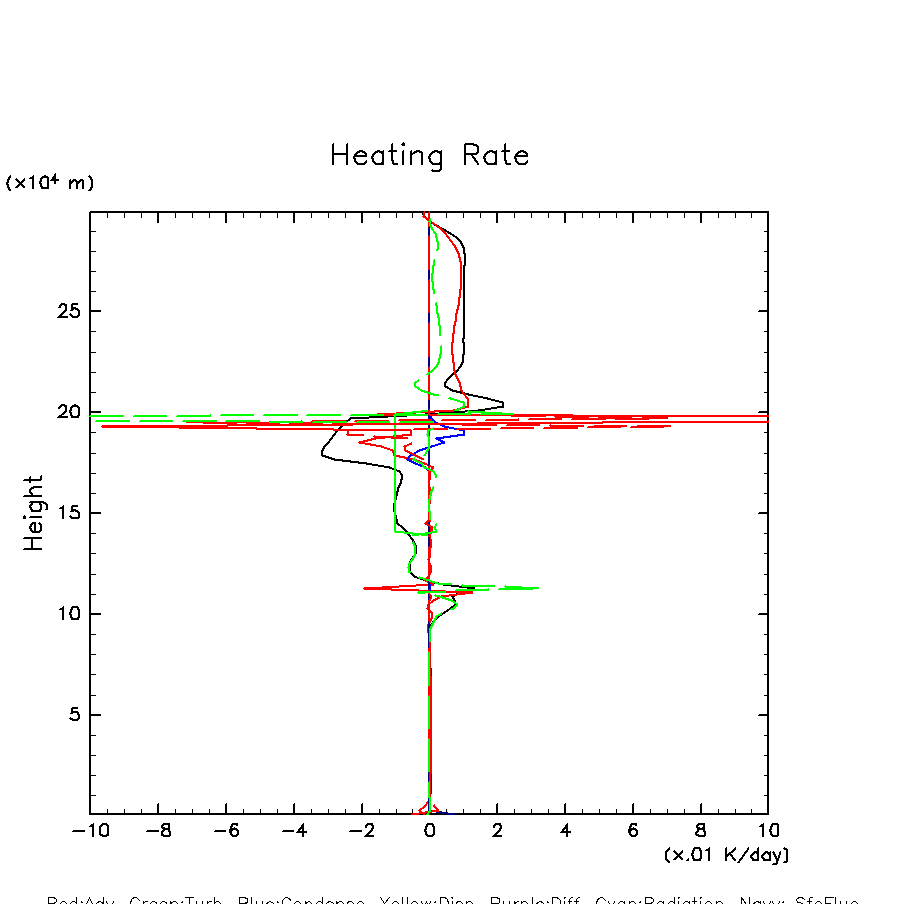

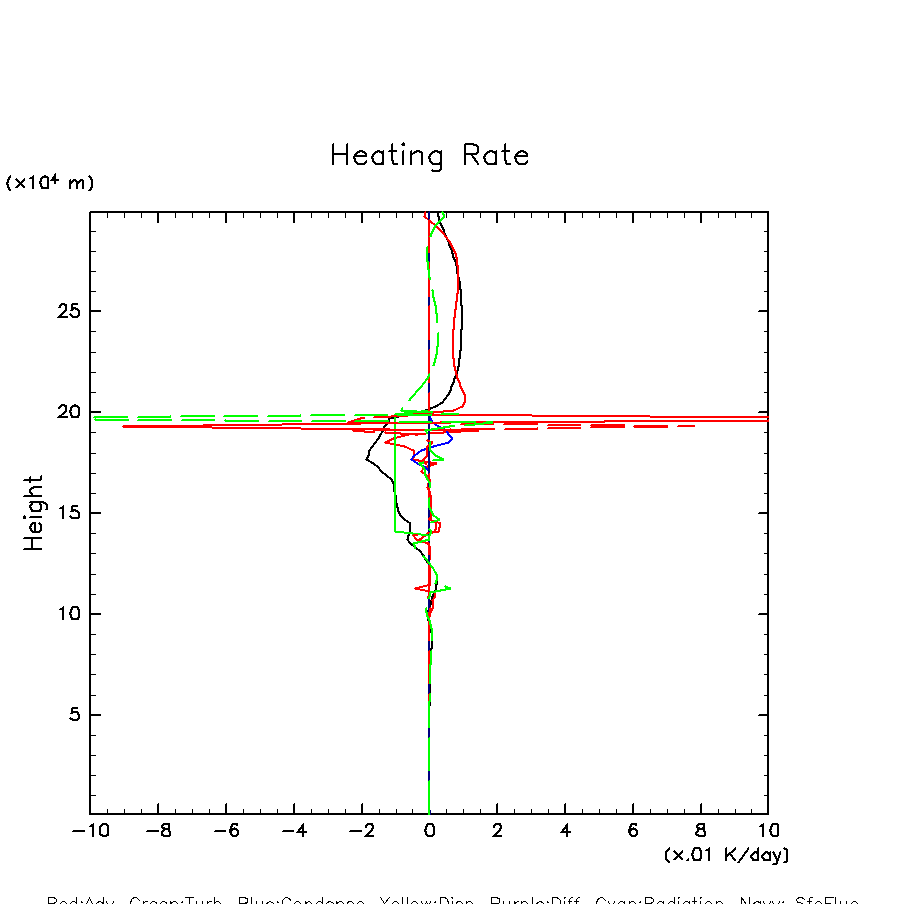

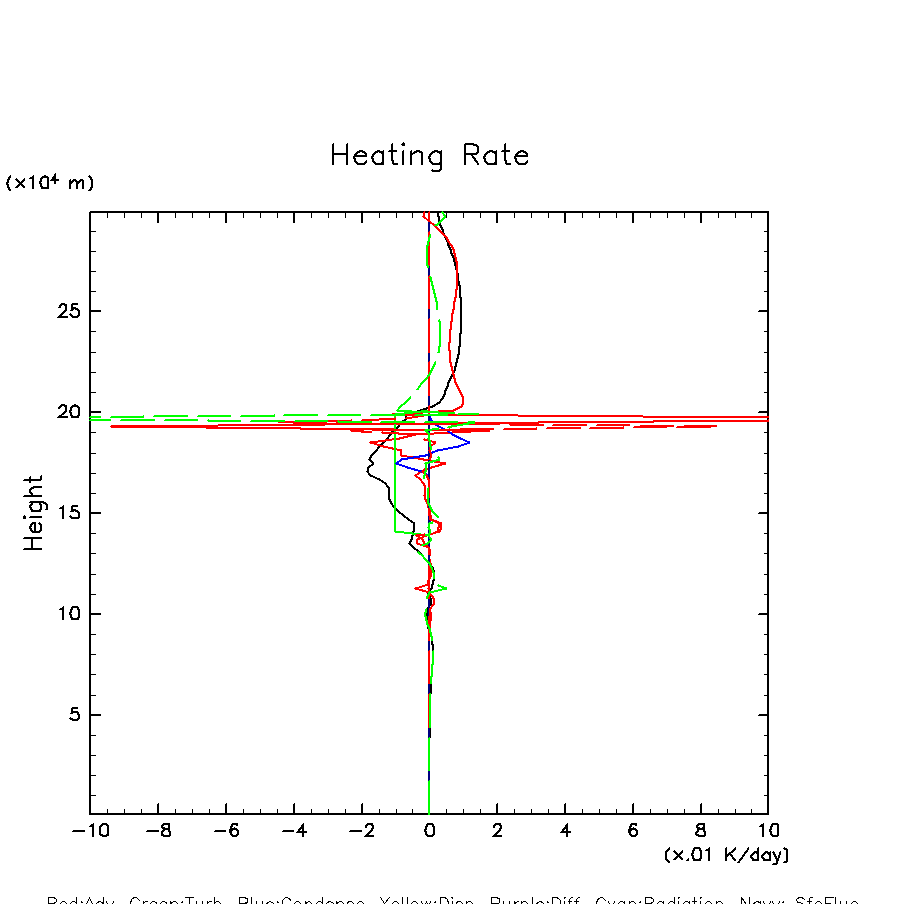

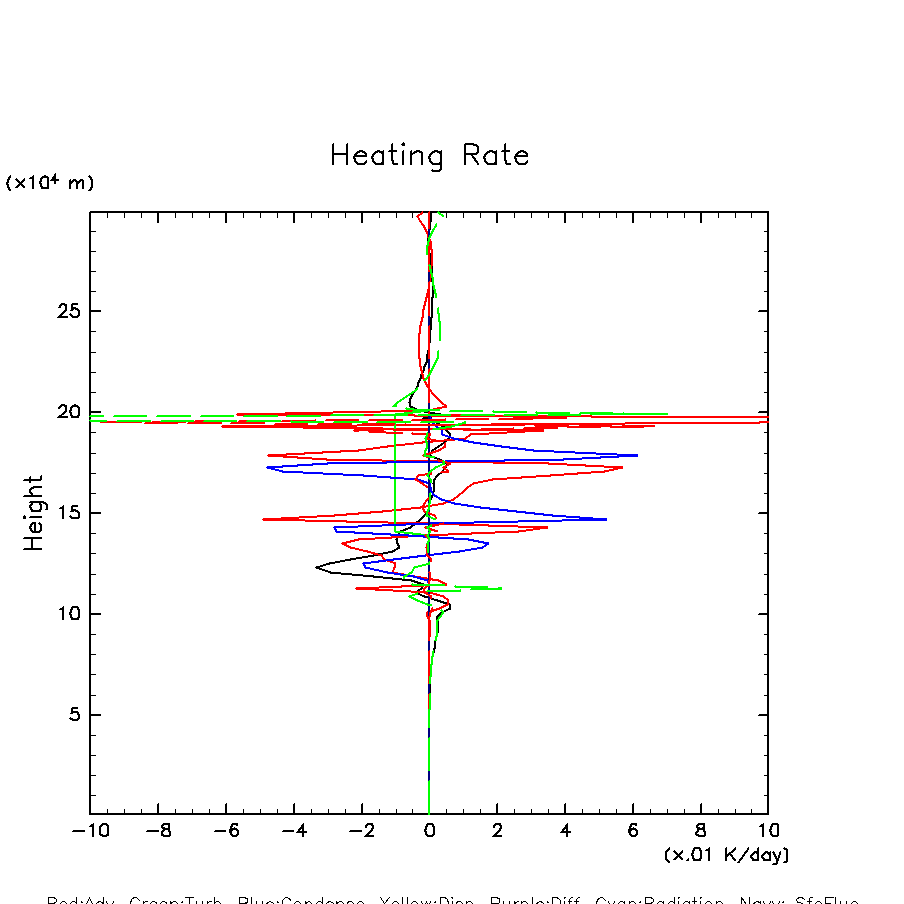

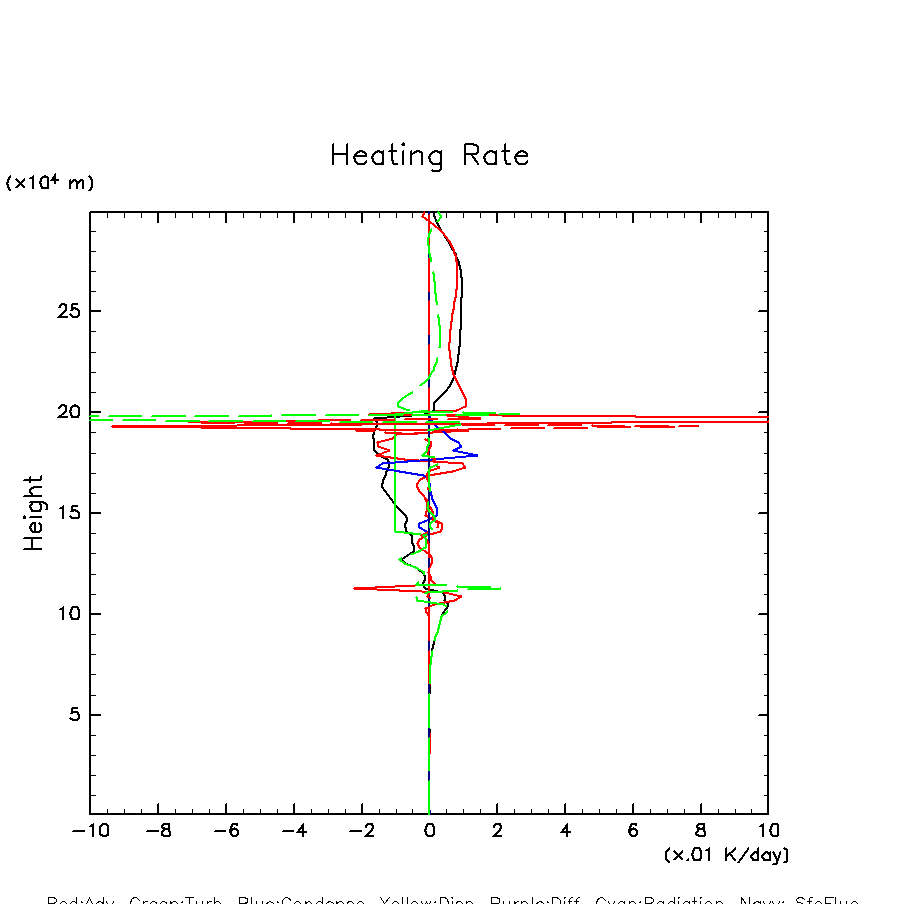

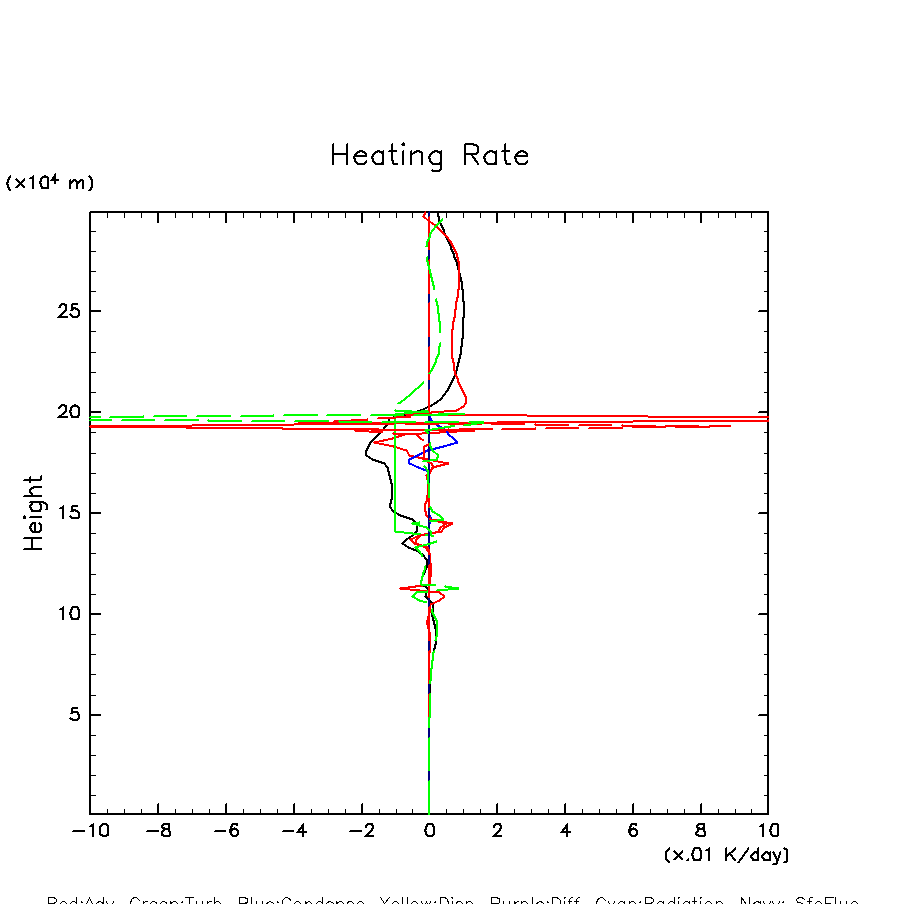

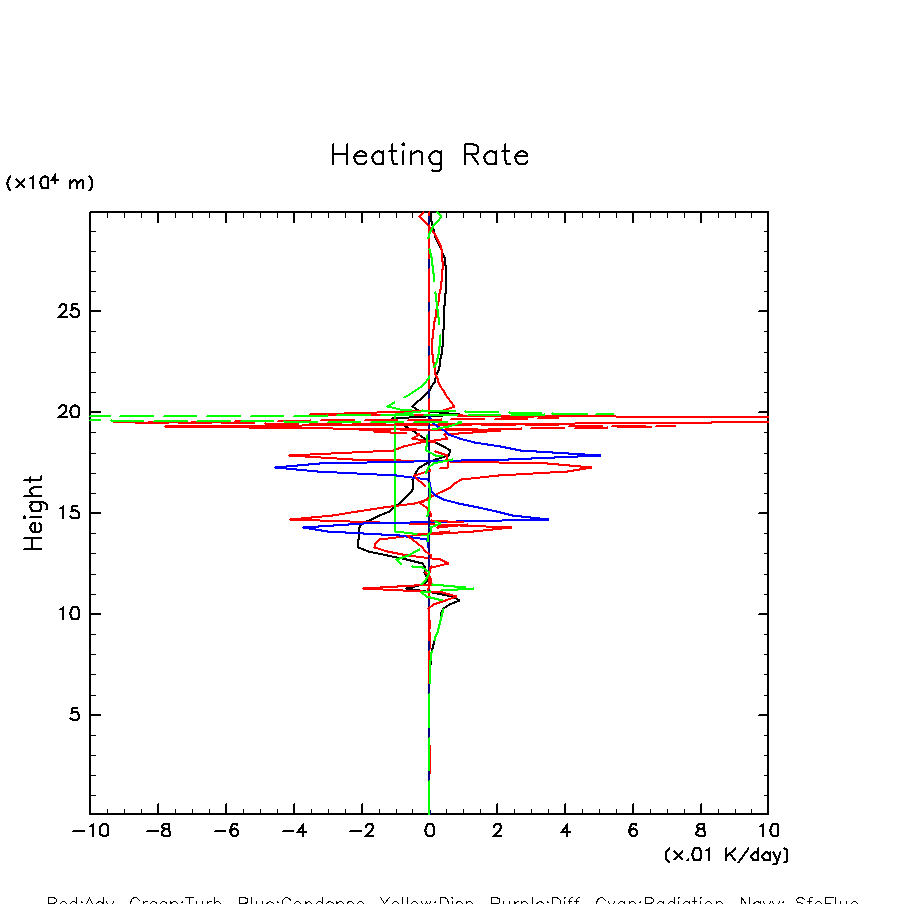

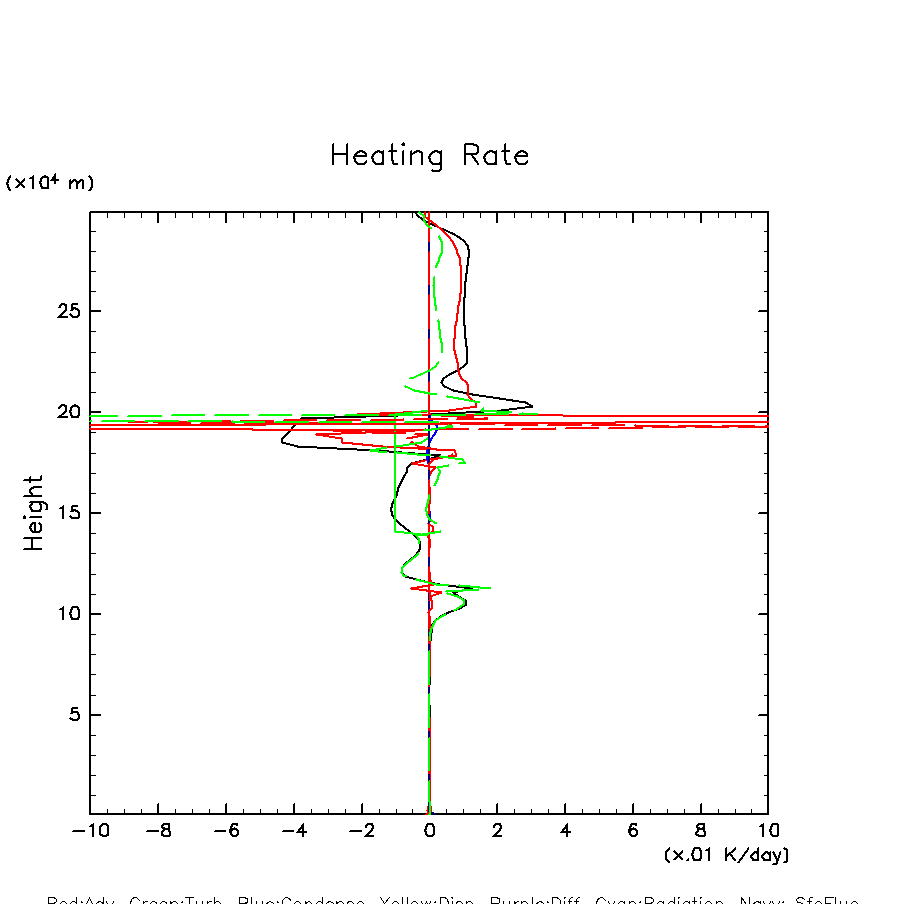

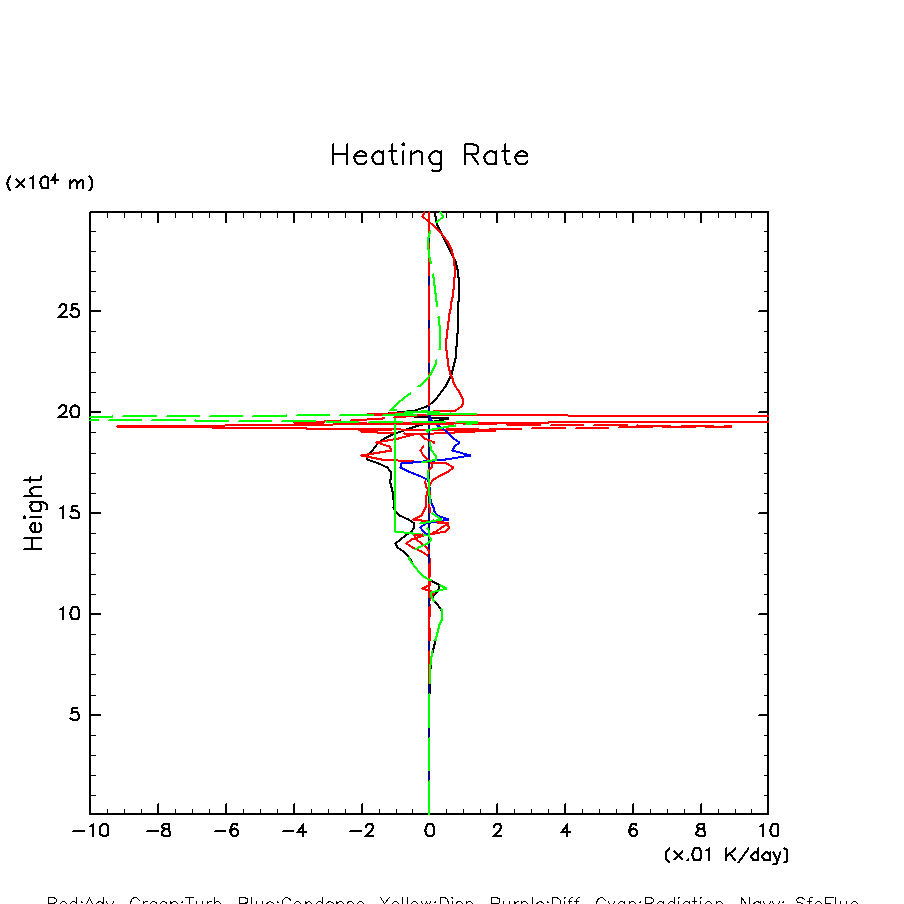

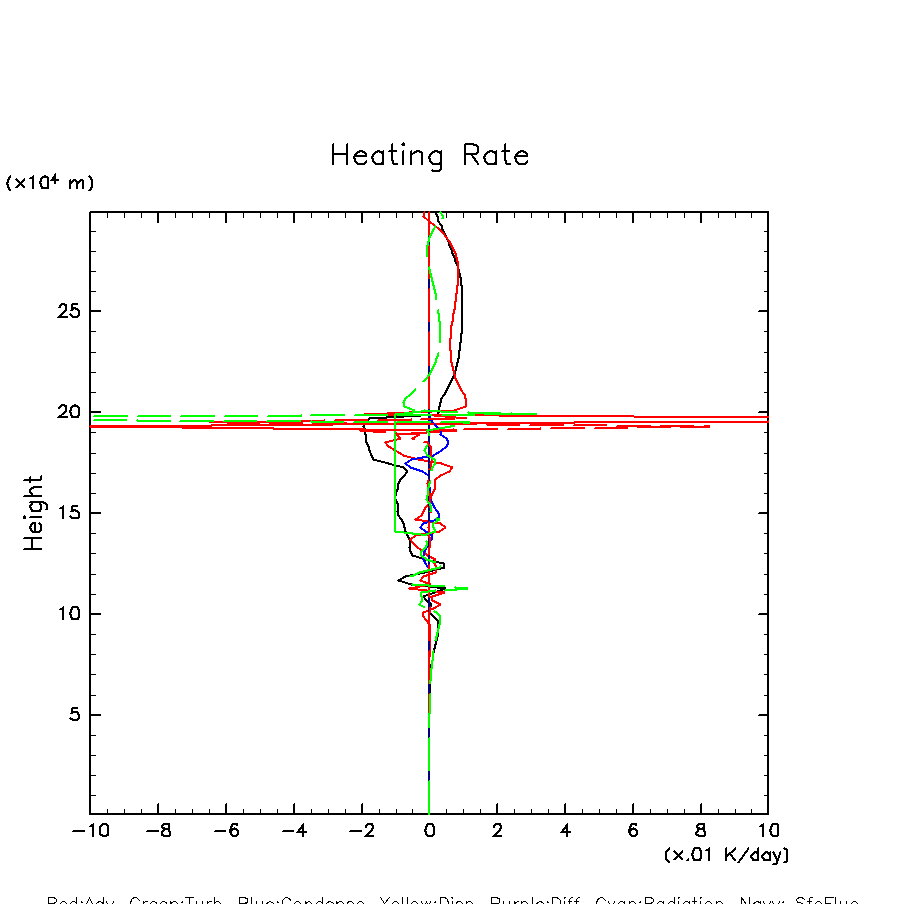

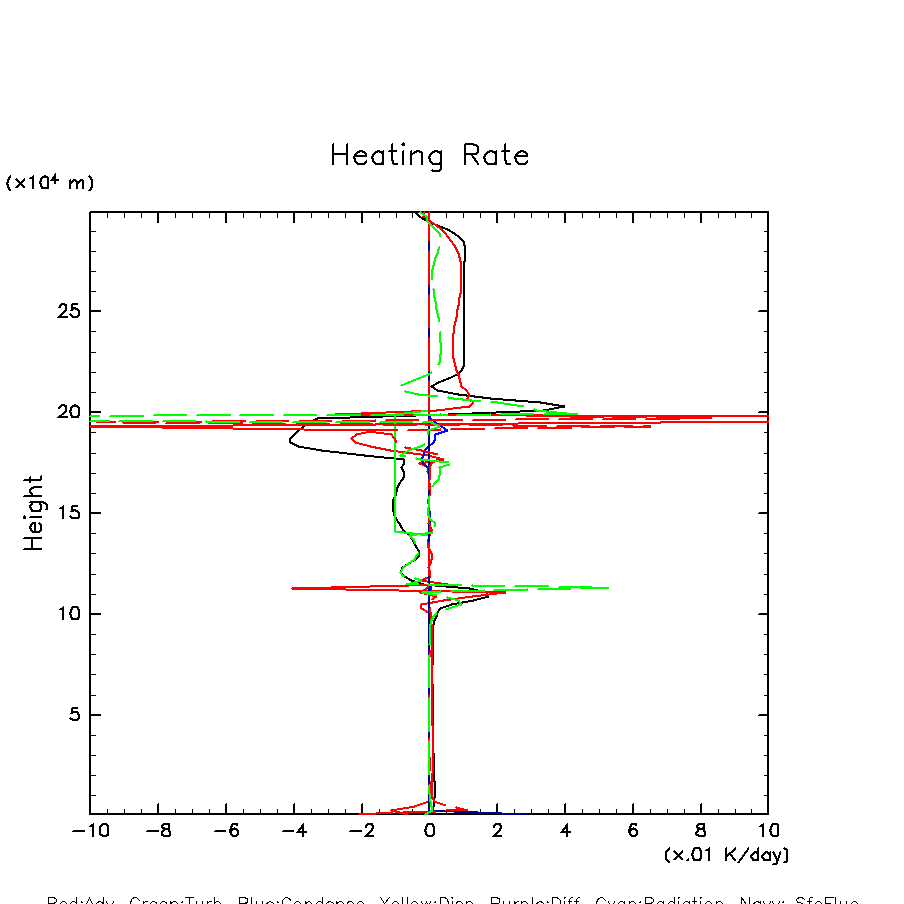

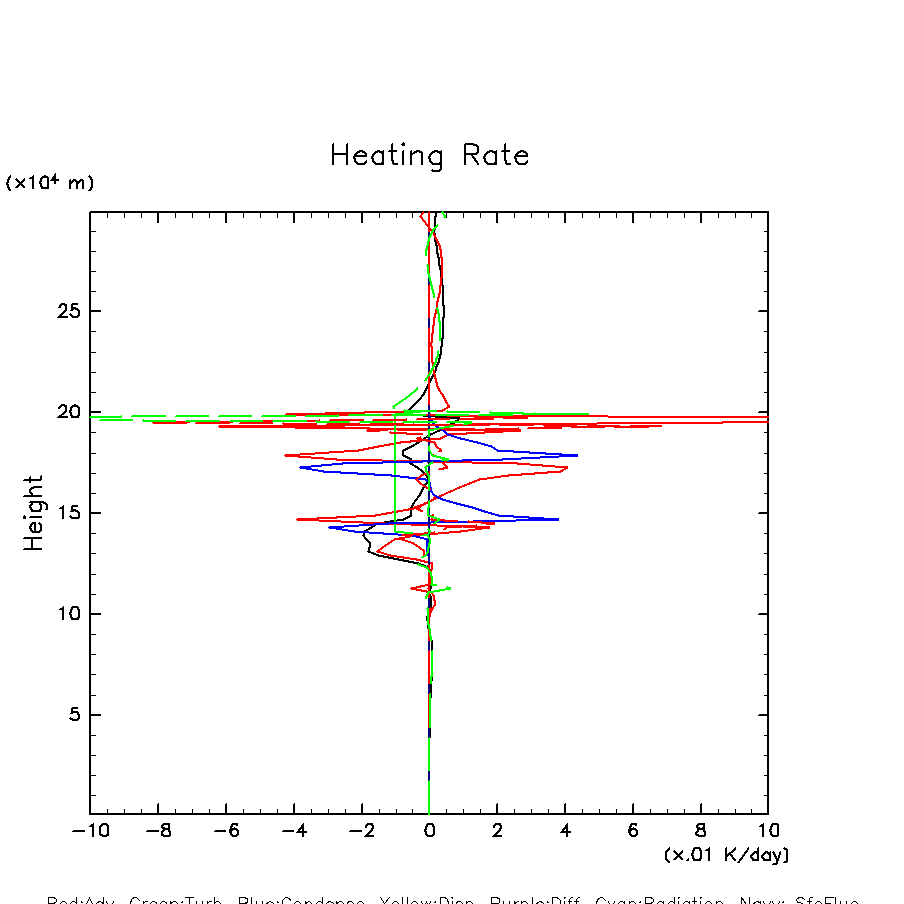

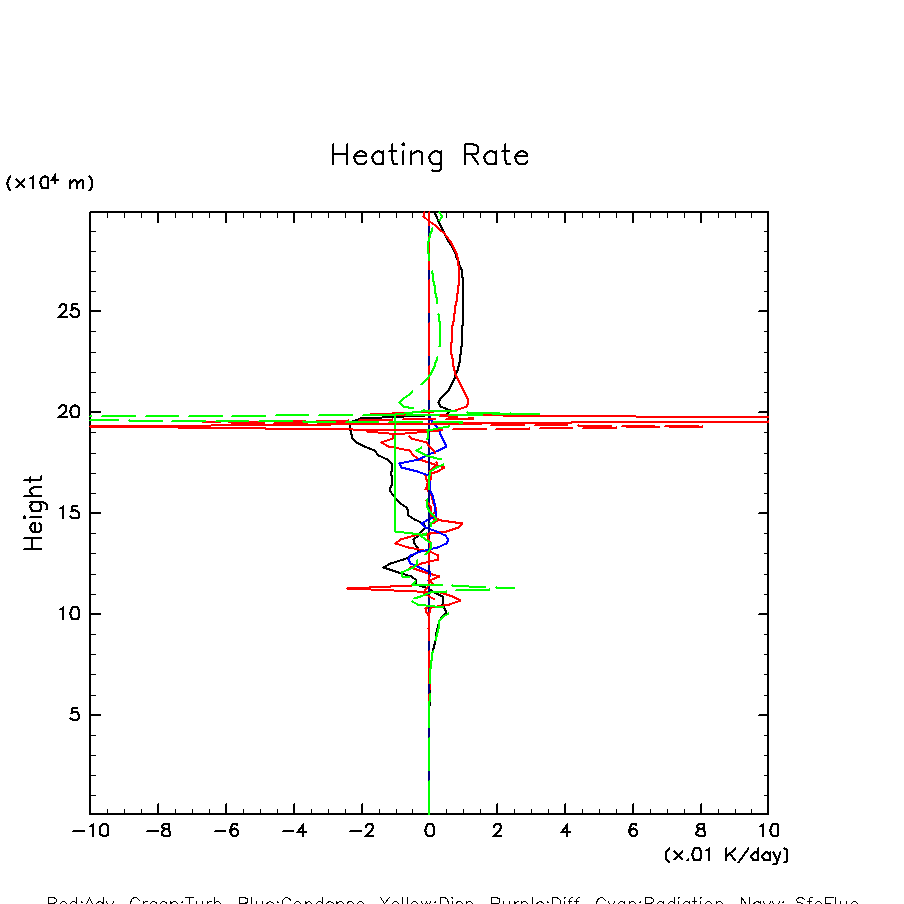

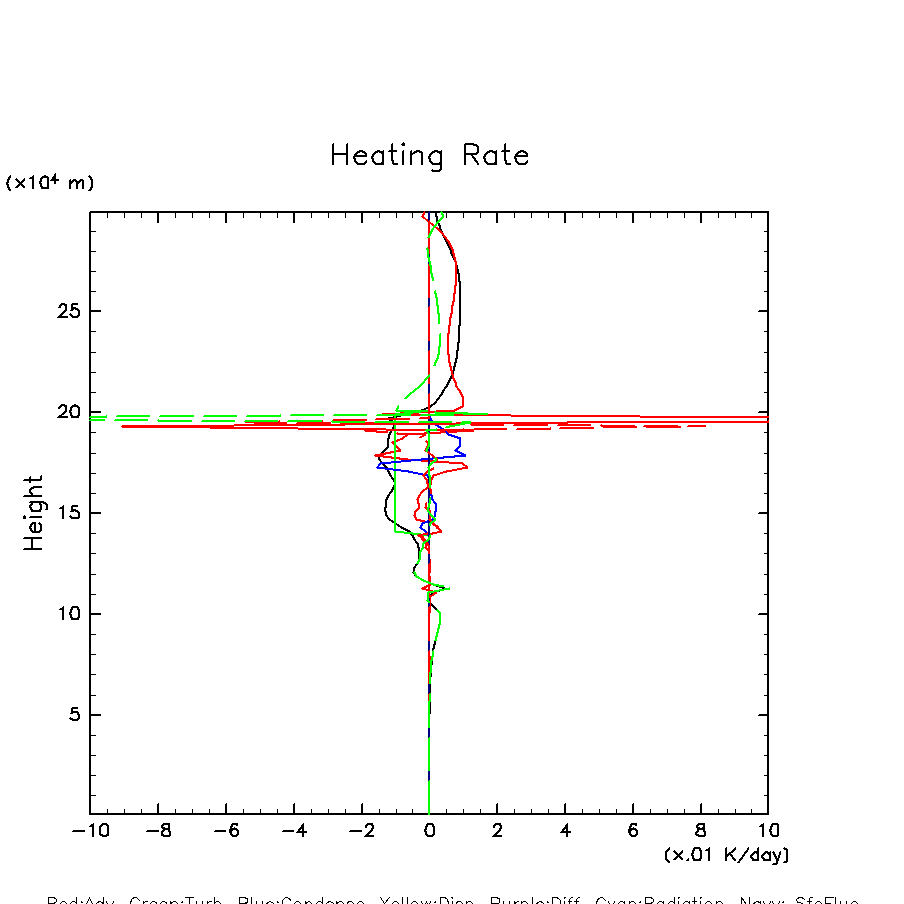

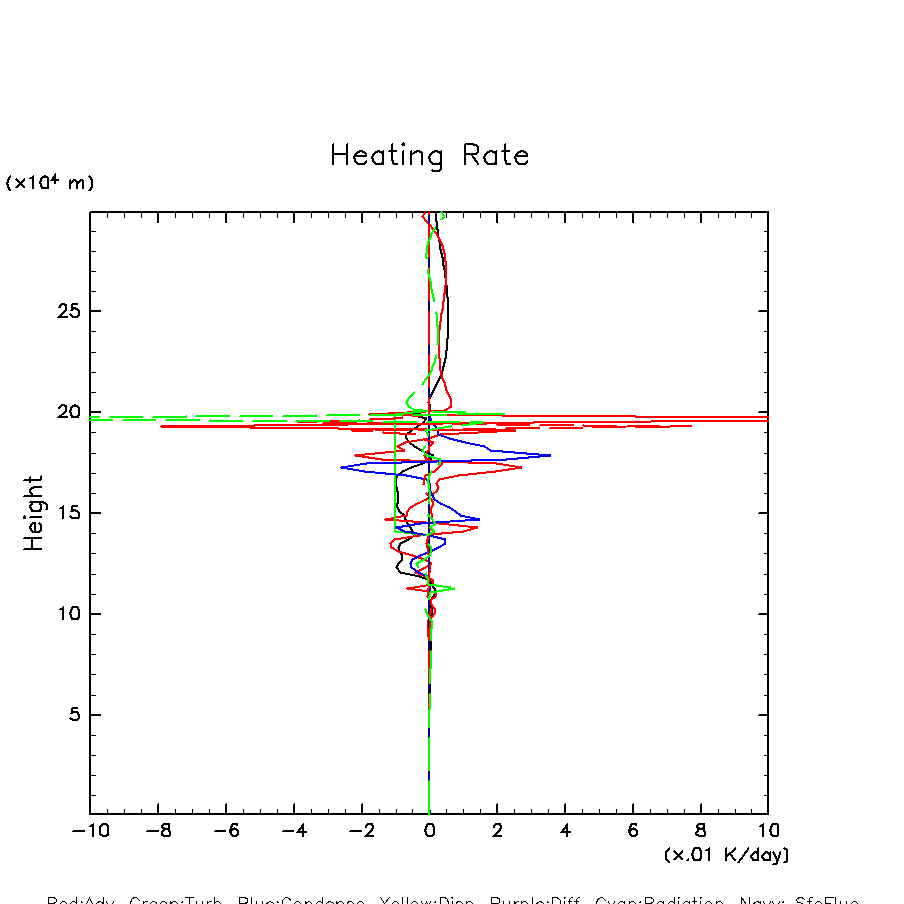

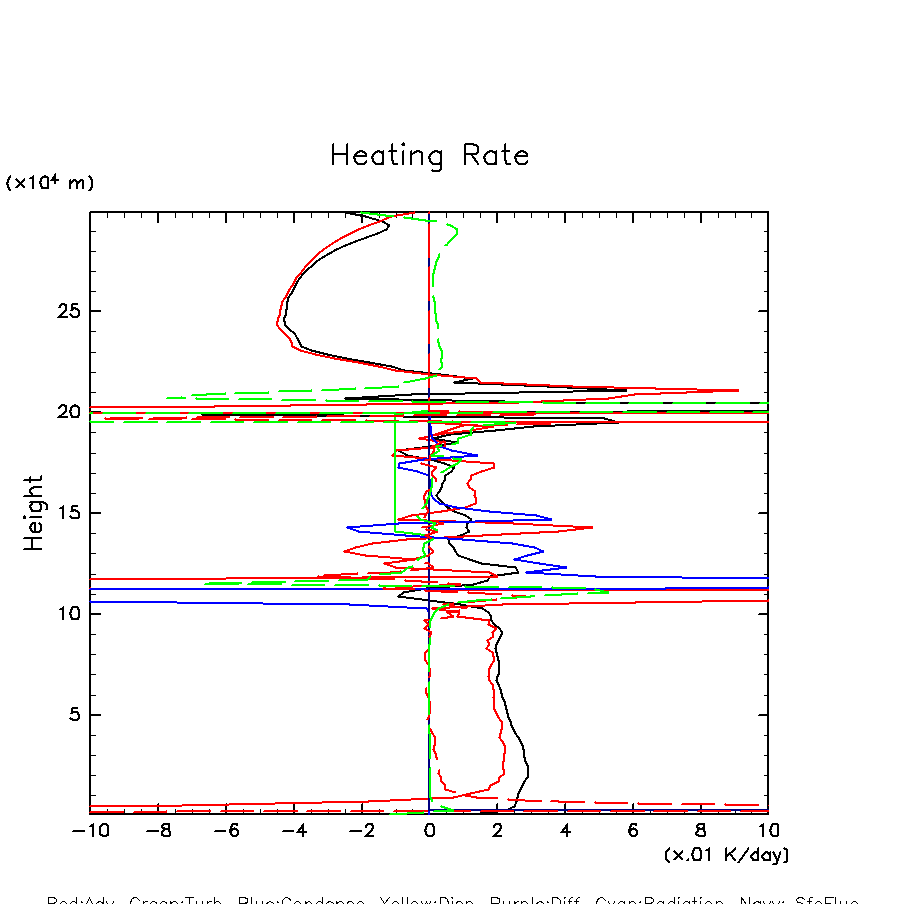

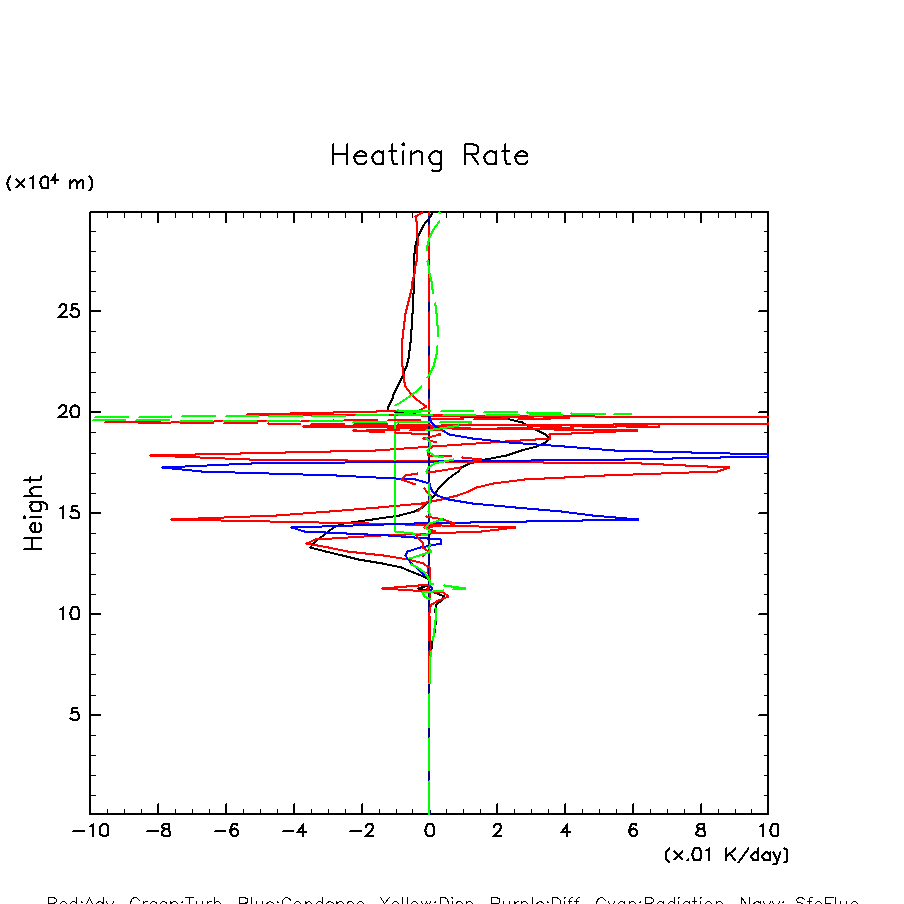

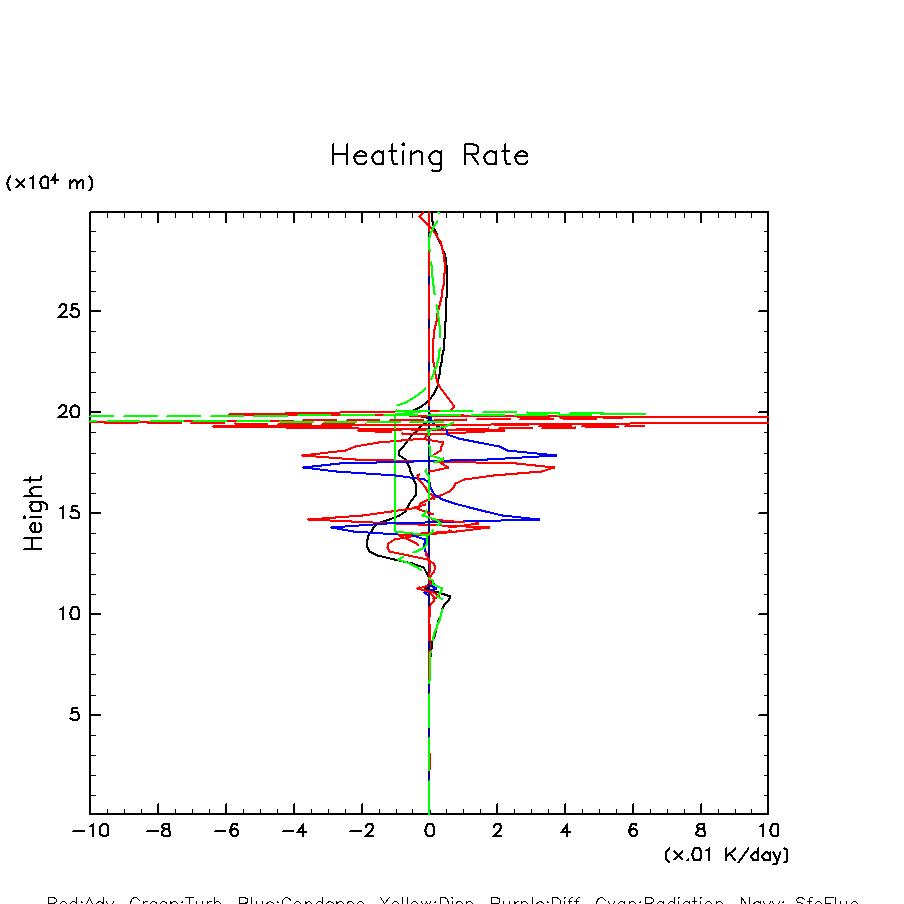

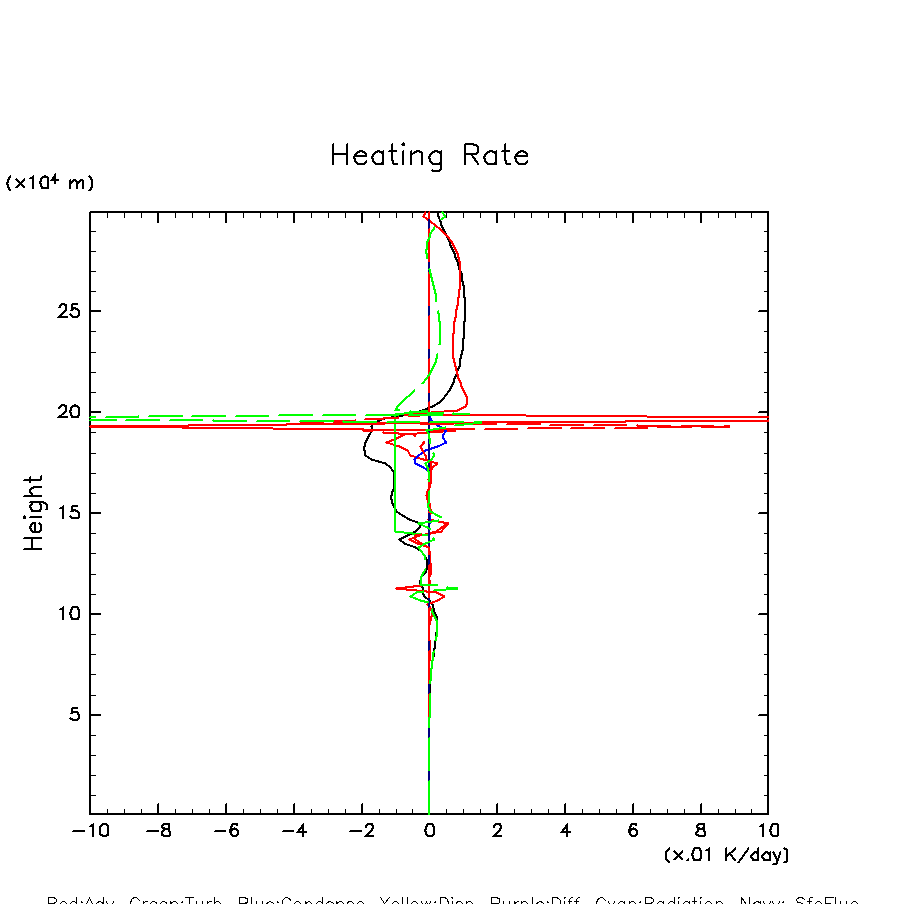

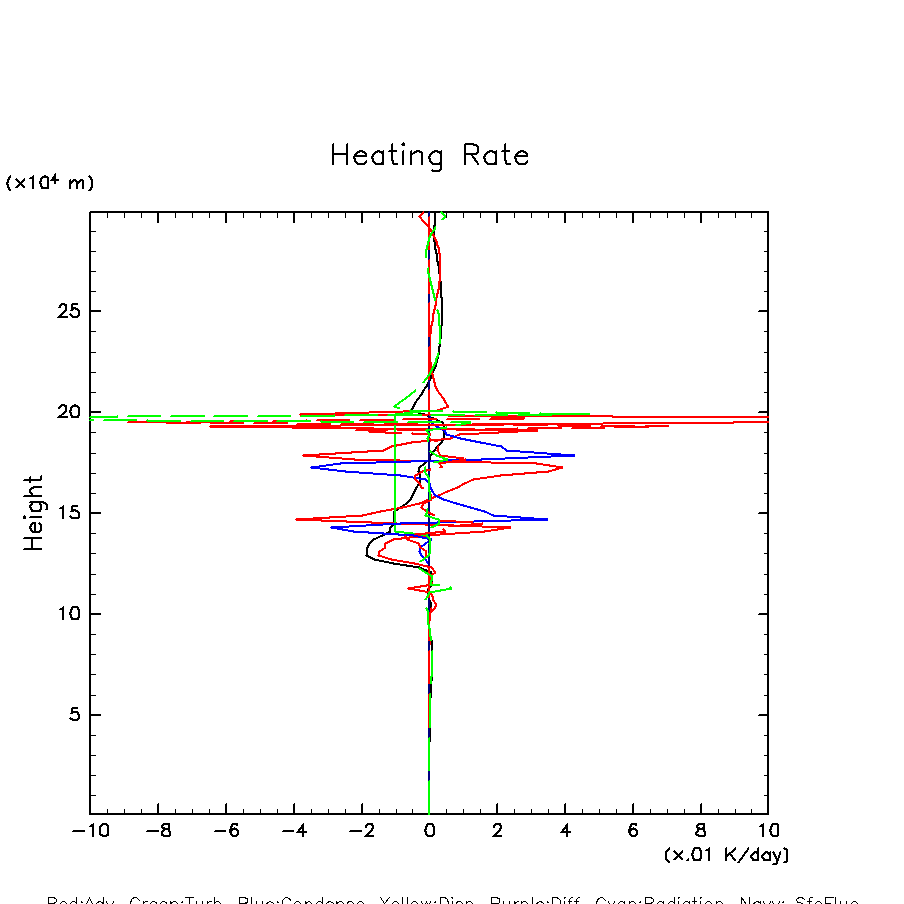

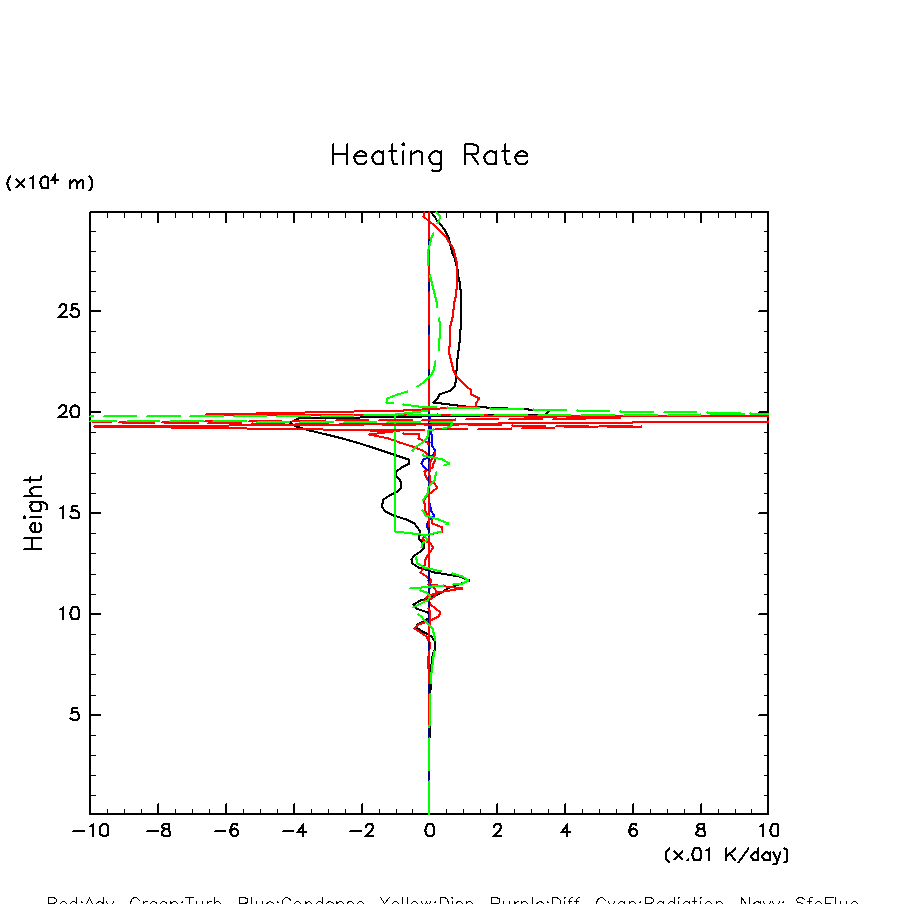

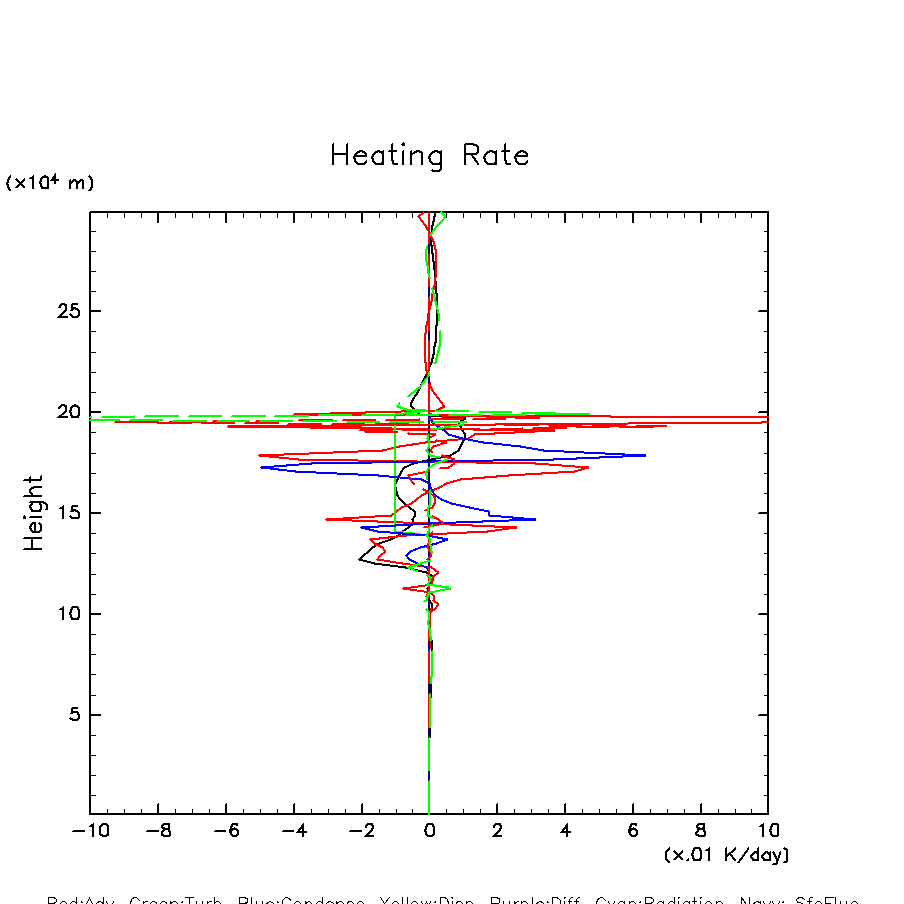

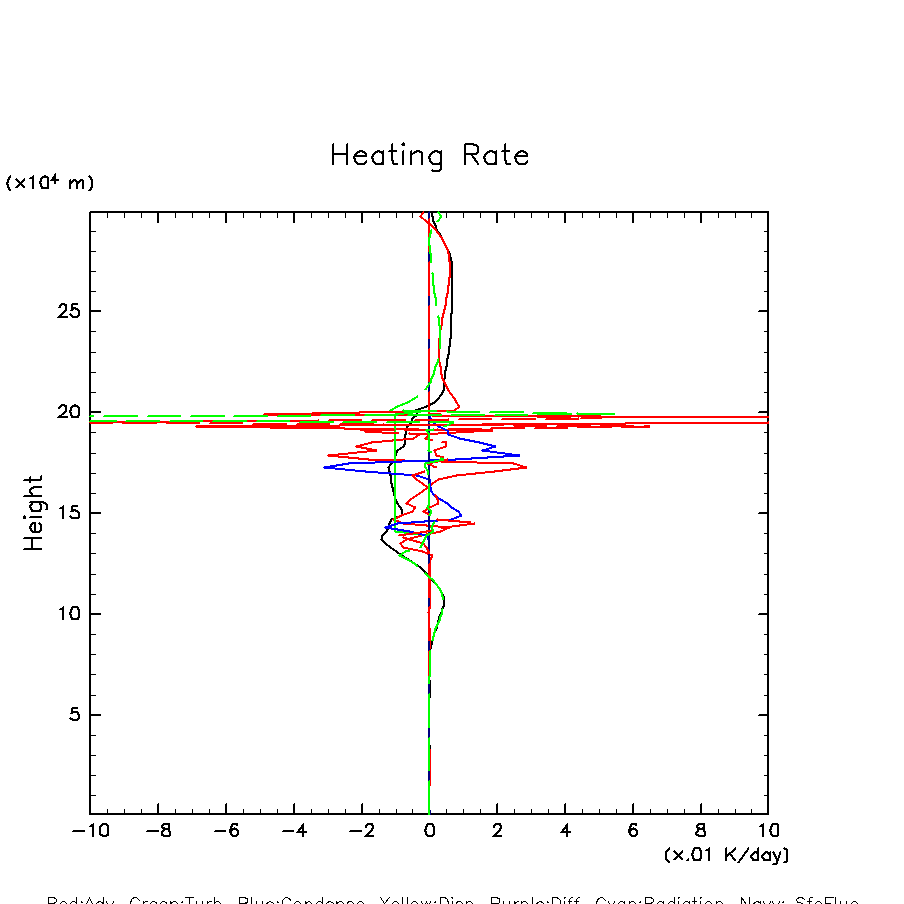

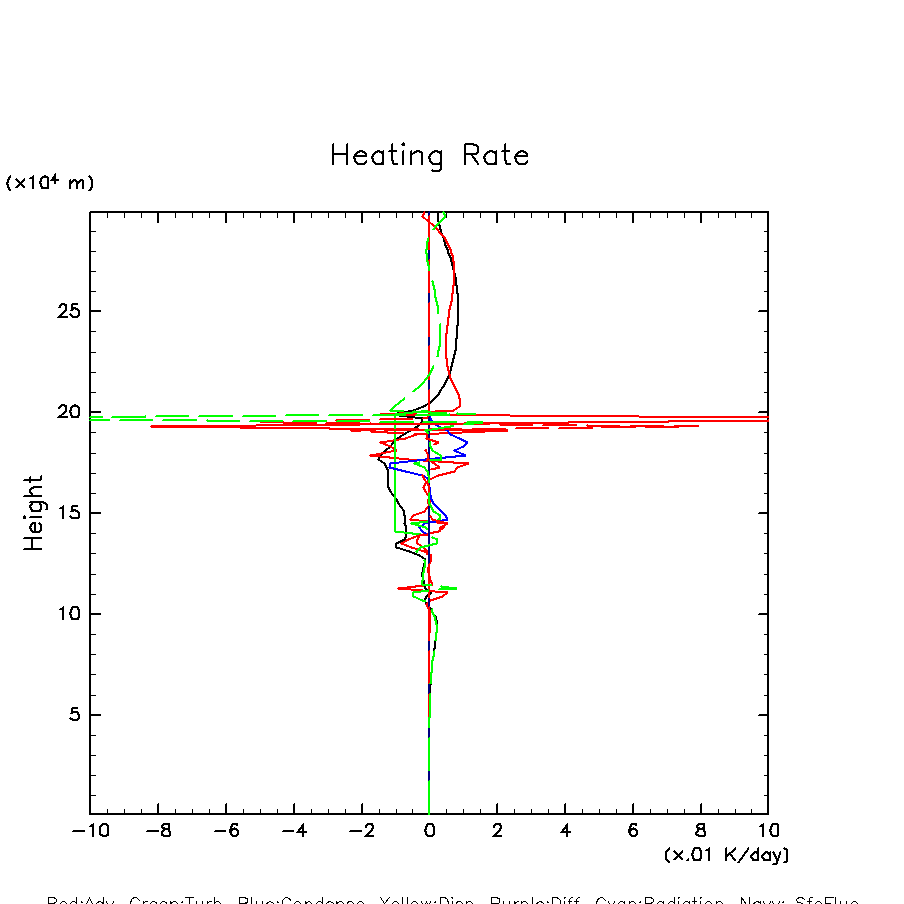

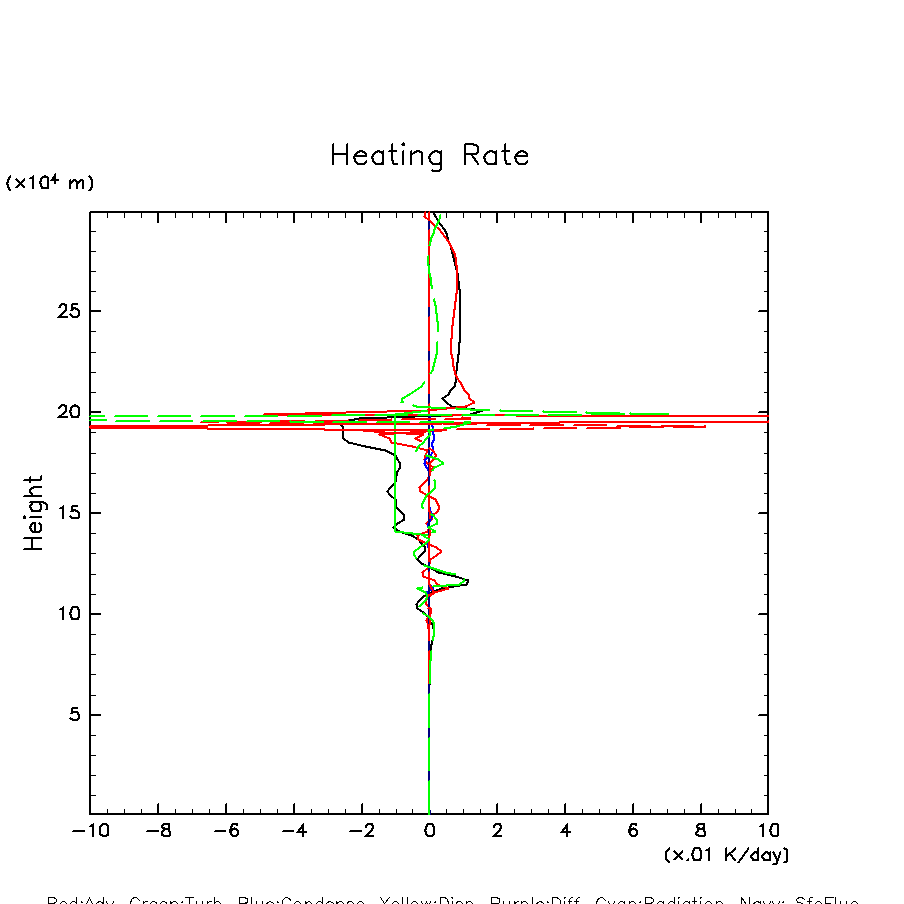

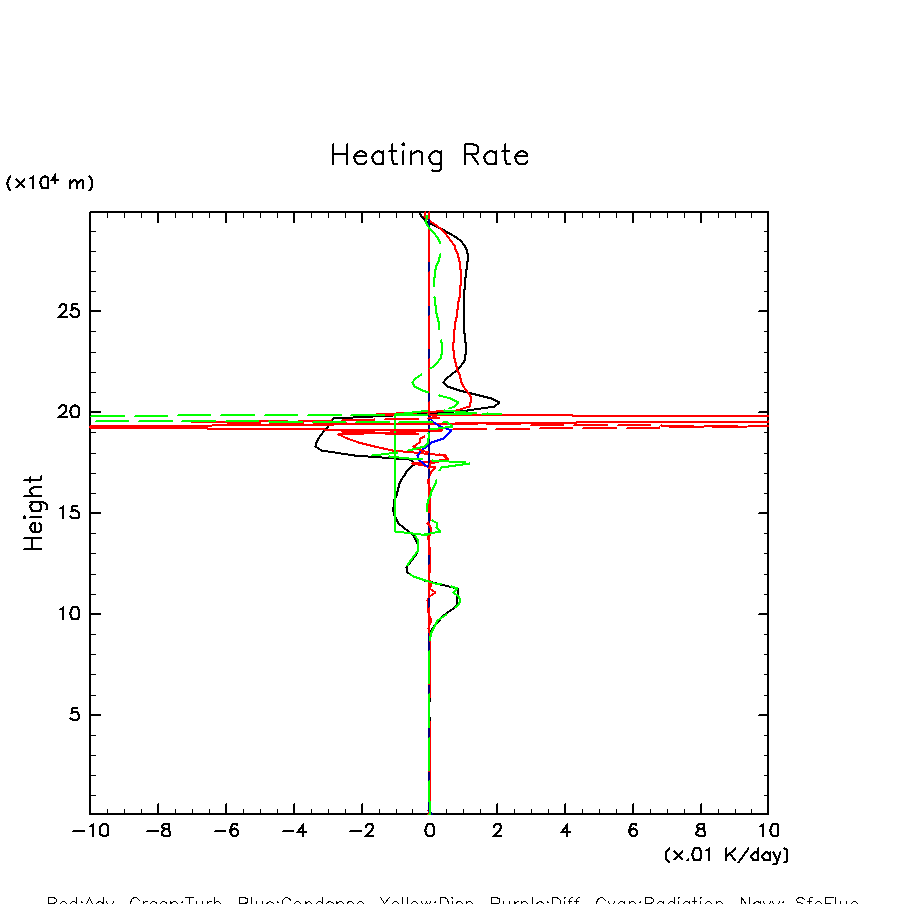

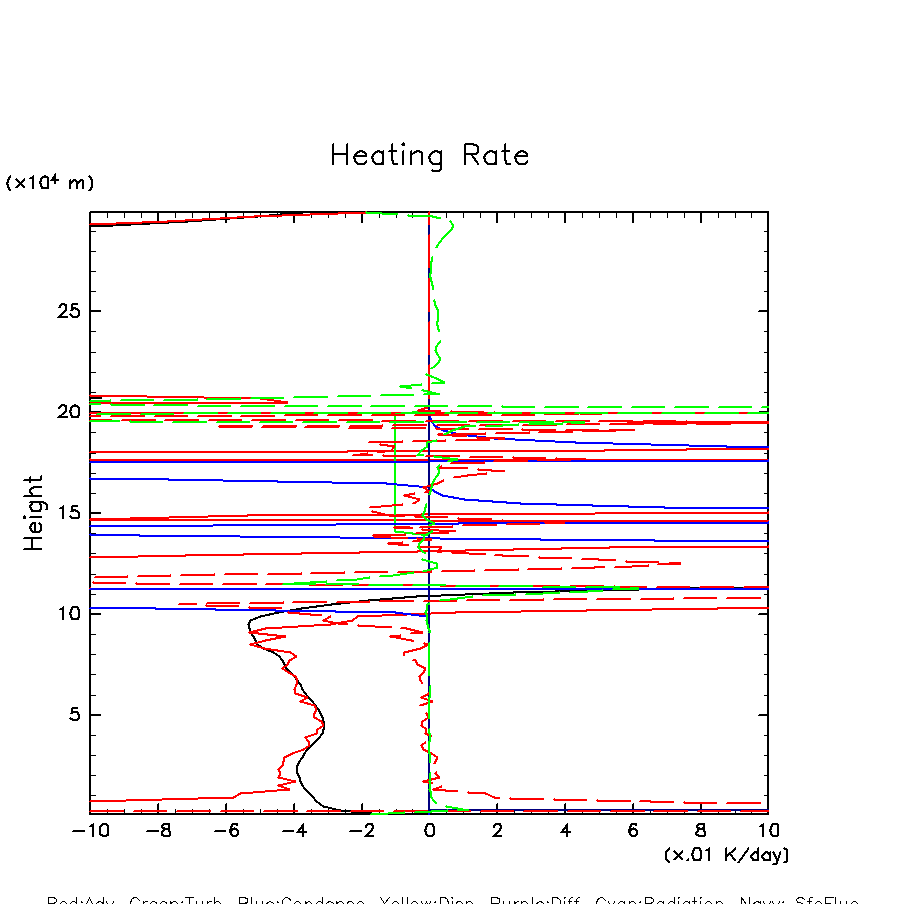

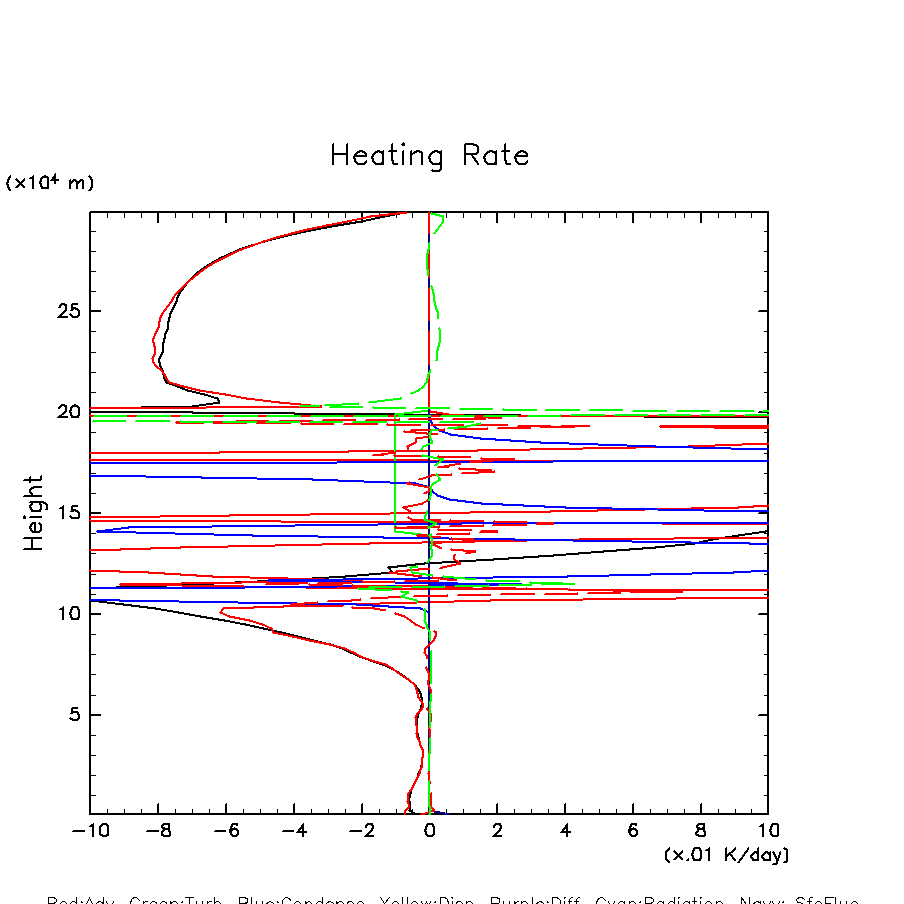

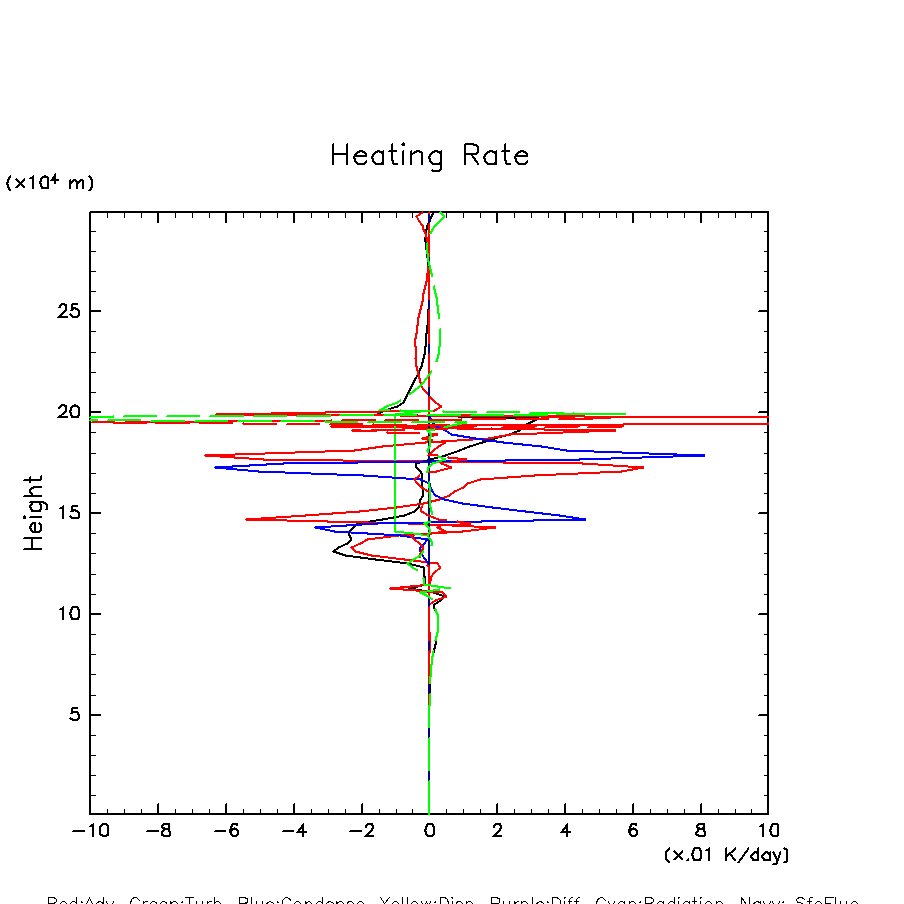

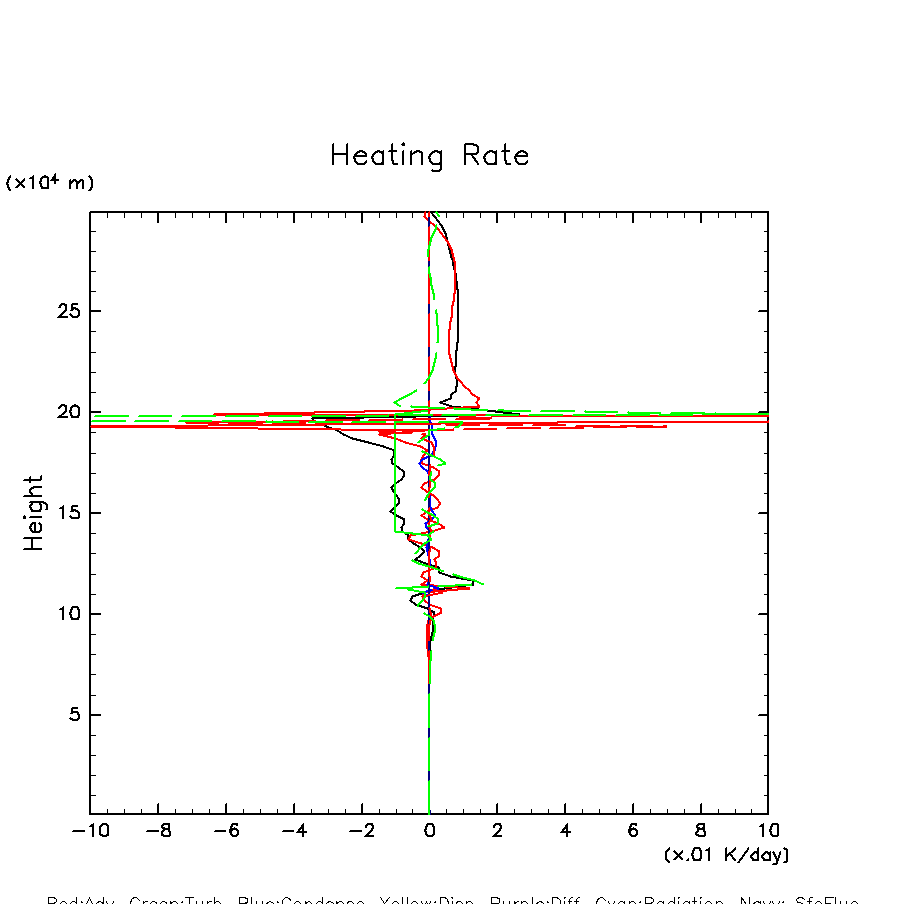

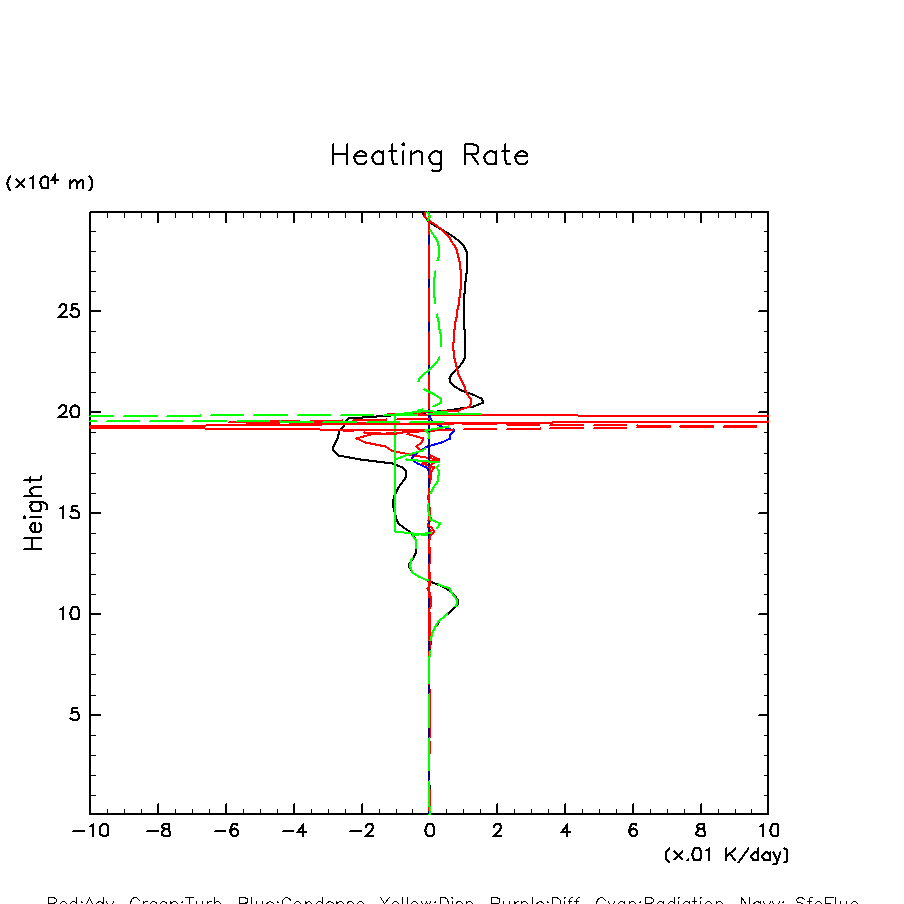

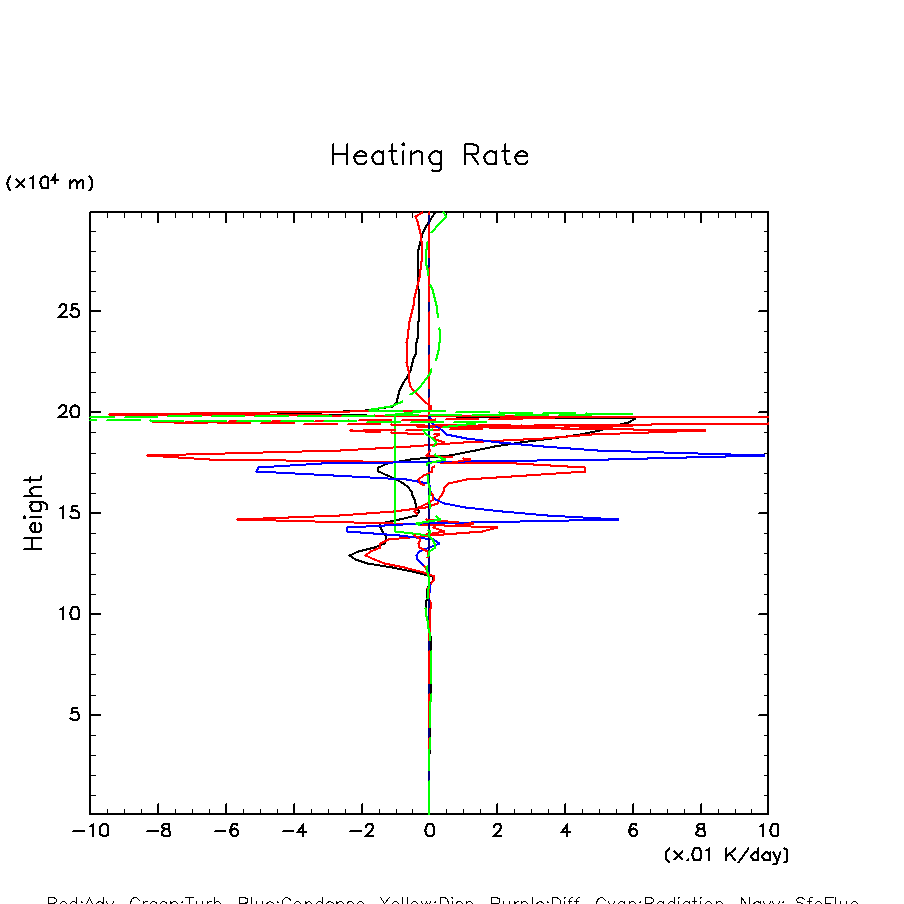

加熱率
